IATF16949 High Pressure Quick Coupler High Pressure Quick Connect Fittings

IATF16949 High Pressure Quick Coupler High Pressure Quick Connect Fittings

IATF16949 High Pressure Quick Coupler

NBR High Pressure Quick Coupler

IATF16949 high pressure quick connect fittings

Place of Origin:

Shanghai, China

Brand Name:

carterberg

Certification:

IATF16949

Model Number:

CB-2

Contact Us
Request A Quote
IATF16949 High Pressure Quick Coupler High Pressure Quick Connect Fittings IATF16949 High Pressure Quick Coupler High Pressure Quick Connect Fittings IATF16949 High Pressure Quick Coupler High Pressure Quick Connect Fittings IATF16949 High Pressure Quick Coupler High Pressure Quick Connect Fittings
Product Details
Product Name:
High Pressure Quick Coupling
Connection:
Female & Male
Technics:
Mold Injection；
Head Code:
Other
Application:
Hydraulic System；
Temperature:
-30~100°C
Pressure:
21739 PSI
Standard Materials:
Brass, Zinc-plated Steel, Stainless Steel
Highlight:

IATF16949 High Pressure Quick Coupler

,

NBR High Pressure Quick Coupler

,

IATF16949 high pressure quick connect fittings

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
carton
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000~20000 pc/month
RELATED PRODUCTS
Good price hydraulic-quick-couplings iso-series iso-7241-a online

hydraulic-quick-couplings iso-series iso-7241-a

Get Best Price
Good price PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa online

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa

Get Best Price
Good price PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa NPT Standard online

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa NPT Standard

Get Best Price
Good price Flat Face Hydraulic High Pressure Quick Coupler With Locking Sleeve 1/4

Flat Face Hydraulic High Pressure Quick Coupler With Locking Sleeve 1/4"

Get Best Price
Contact Us
86-021-37214610
Contact Now
Product Description

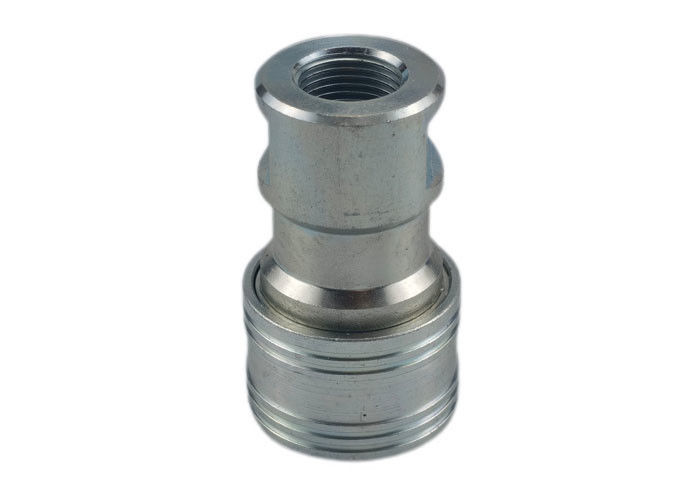

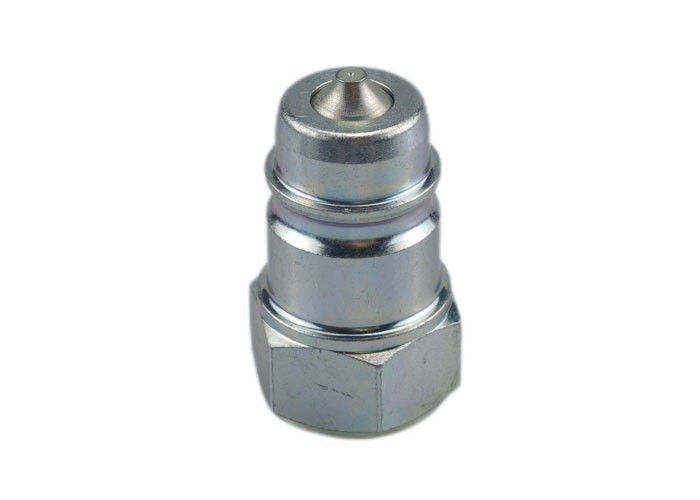

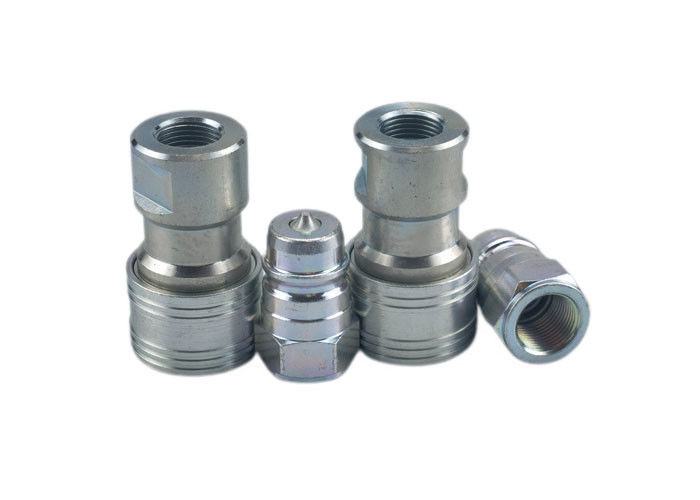

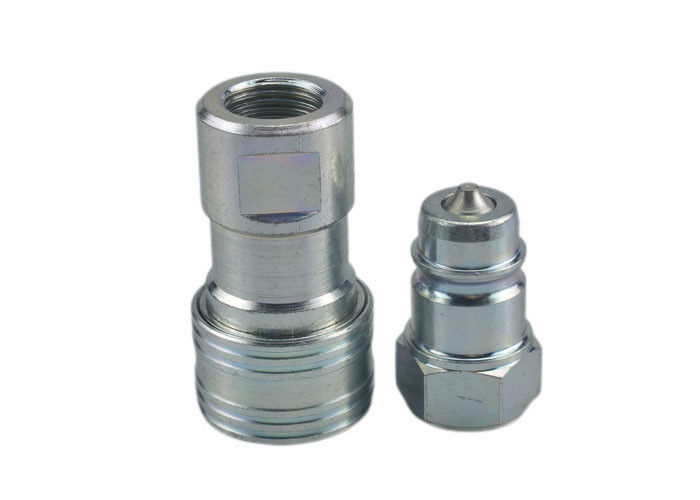

STEEL SUPER HIGH PRESSURE HYDRAULIC QUICK COUPLING, high pressure quick connect fittings​



CB-2 Series are widely used in hydraulic jacks, torque tools, rescue equipments.



Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Special valve design eliminate spillage when connecting and disconnecting.
  2. Poppet valves available to prevent uncoupled leakage.
  3. Poppet valves open automatically when coupled, within rated working pressure,to keep the flow expeditely.
  4. Special materials are used in critical parts and hardened for durability.
  5. Dependable ball-locking mechanism holds the mating halves together.
  6. Socket and plug are precision machined from solid bar stock.
  7. Compatible with CEJN115 Series, 116 Series.

Specifications



Body Size(in) 3/32
Rated Pressure(PSI) 21739
Rated Flow(gpm) 1
Temperature Range(std seals) -30℃ to +100℃
Standard seal material NBR



IATF16949 High Pressure Quick Coupler High Pressure Quick Connect Fittings 0

PARTNO. Thread D HEX1 HEX2 L LS LP
CB-S2S-2FG G1/4 Φ28 S24 S22 81 61.2 38
