Place of Origin:
Shanghai, China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-SPB-1F-KZD

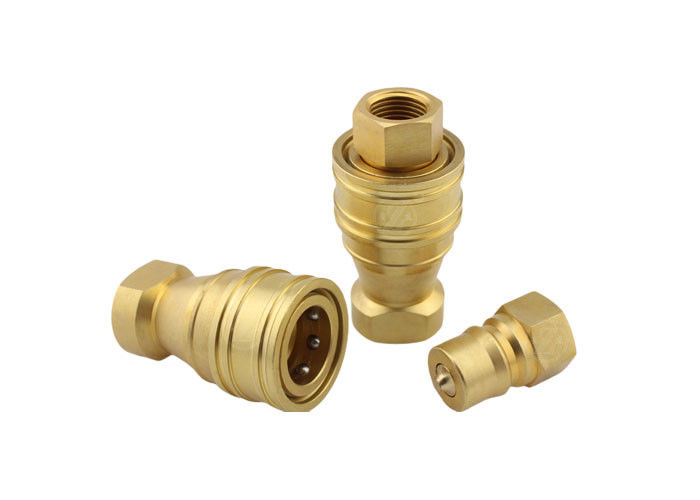

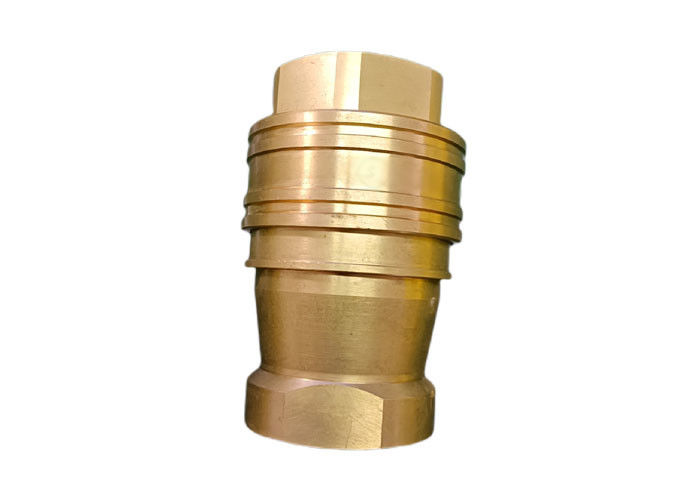

ISO7241B Mainly suitable for fluid 2'' Brass Hydraulic Quick Couplings
hydraulic couplers for tractors
1. The Series hydraulic quick couplings are mainly used for construction equipment,forestry equipment, hydraulic machinery and oil equipment and other required hydraulic applications.
2. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Material Brass
4 .The series conforms to the standard of ISO7241-B
5 Compatible with PARKER 60 Series , FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.
| BODY SIZE | Rated Pressure (PSI) | Rated Pressure (BAR) | Temperature Range(std seals) | Standard seal material |
| 1-1/4 | 1000 | 75 | -20℃to+260℃ | FKM |
| 1-1/2 | 1000 | 100 | ||
| 2 | 1000 | 150 |
| PARTNO. | Thread | LS | ΦD | HEX1 | A |
| CB-S10B-1FG | 1-1/4 | 115 | 69 | 54 | 27 |
| CB-S12B-1FN | 1-1/2 | 124 | 79 | 60 | 27 |
| CB-S20B-1FN | 2 | 132 | 102 | 77 | 30 |
| PARTNO. | Thread | LP | d | C | HEX2 | A |
| CB-P10B-1FG | 1-1/4 | 70 | 45 | 45 | 52 | 27 |
| CB-P12B-1FN | 1-1/2 | 75 | 50 | 49 | 60 | 27 |
| CB-P20B-1FN | 2 | 80 | 70 | 52 | 77 | 30 |
| PARTNO. | Thread | L | ΦD | HEX1 | HEX2 |
| CB-SP10B | 1-1/4 | 140.5 | 69 | 54 | 52 |
| CB-SP12B | 1-1/2 | 150.5 | 79 | 60 | 60 |
| CB-SP20B | 2 | 160.5 | 102 | 77 | 77 |
