Nylon Ultra High Pressure Hose Assembly Male / Female Ends Hydraulic Tools

Nylon Ultra High Pressure Hose Assembly Male / Female Ends Hydraulic Tools

  • High Light

    High Pressure Hose Assembly 50ft


    Nylon Ultra High Pressure Hose Assembly


    1/4 NPT Ultra High Pressure Tubing

  • Name
    High Pressure Resin Hose
  • Diameter
  • Max. Working Pressure
    120 MPa
  • Installation Type
  • Material
  • Temperature Tolerance
    -40°C — +120°C
  • Size
    As Per Customer's Design
  • Application
    Various Industries
  • Burst Pressure
    40,000 PSI
  • Color
  • Couplings
    1/4 NPT
  • Ends
  • Inner Diameter
  • Length
  • Outer Diameter
  • Pressure Rating
    20,000 PSI
  • Product Name
    Ultra High Pressure Hose
  • Reinforcement
  • Temperature Rating
    -40 To +250°F
  • Weight
    2.5 Lbs/ft
  • Working Pressure
    16,000 PSI
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Nylon Ultra High Pressure Hose Assembly Male / Female Ends Hydraulic Tools

ultra-high pressure tubing assembly hydraulic tools high pressure hose assembly


An ultra-high pressure hose is a specialized type of hose designed to withstand extremely high pressures. These hoses are engineered to handle pressures significantly higher than those of standard hoses, making them suitable for applications that involve intense hydraulic or pneumatic systems.
Here are some key characteristics of ultra-high pressure hoses:
Pressure Rating: Ultra-high pressure hoses are designed to handle pressures typically above 10,000 psi (pounds per square inch) or 690 bar. They are constructed with materials and reinforcement layers that can withstand such high pressures without bursting or leaking.
Construction: These hoses are usually constructed with multiple layers of high-strength materials to provide reinforcement and structural integrity. The inner tube is made of materials compatible with the fluid being conveyed, while the outer cover is designed to protect the hose from abrasion, environmental factors, and wear.
Material Compatibility: Ultra-high pressure hoses are available in various materials to suit different applications. Common materials include synthetic rubber, thermoplastic, or polymeric blends that offer high flexibility, chemical resistance, and durability.
Fittings and Connections: Due to the high pressures involved, ultra-high pressure hoses require specialized fittings and connections. These fittings are designed to provide a secure and leak-free connection, ensuring safe operation under extreme conditions.
Applications: Ultra-high pressure hoses are commonly used in industries such as oil and gas, construction, mining, manufacturing, and hydraulic systems. They are utilized in applications such as hydraulic tools, pressure testing, water blasting, jetting, and high-pressure fluid transfer.
It's important to note that working with ultra-high pressure systems can be hazardous, and proper safety precautions should always be followed. The selection, installation, and operation of ultra-high pressure hoses should be done in accordance with the manufacturer's guidelines and industry standards to ensure safety and reliability.

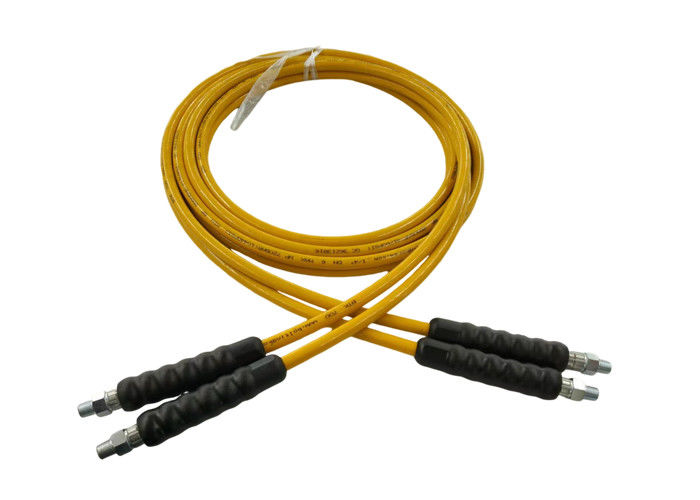

Nylon Ultra High Pressure Hose Assembly Male / Female Ends Hydraulic Tools 0

Nylon Ultra High Pressure Hose Assembly Male / Female Ends Hydraulic Tools 1



Inner tube of polyoxymethylene (POM), 4 spiral layers of high

tensile steel wire, outer sheath of polymide (PA)

ID x OD Customizable
Max. working pressure 120 MPa
Min. burst pressure 200 MPa
Temperature range Hydraulic -40°C — +120°C



Our Services:


1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
