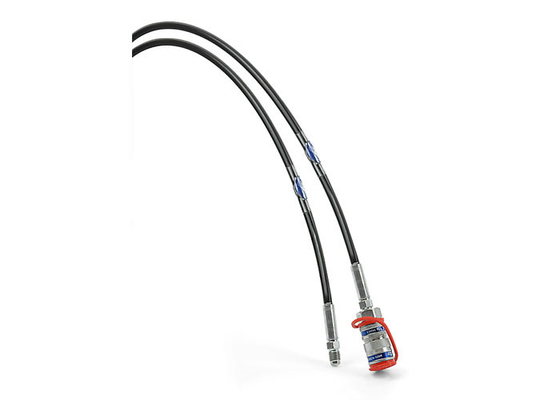

DN4 Flexible 4 Layer High Pressure Hydraulic Hose 140MPa Abrasion Resistance

DN4 Flexible 4 Layer High Pressure Hydraulic Hose 140MPa Abrasion Resistance

  • High Light

    DN4 High Pressure Hydraulic Hose


    High Pressure Hydraulic Hose 140MPa


    OD 33.0mm Abrasion Resistance Hydraulic Hose

  • Name
    Hydraulic Hose
  • Color
  • ID X OD
    4,0 X 9,7 Mm
  • Max. Working Pressure
    140 MPa
  • Min. Burst Pressure
    350 MPa
  • Min. Bend Radius
    55 Mm
  • Weight
    160 G/m
  • Temperature
    -40°C — +100°C
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

DN4 Flexible 4 Layer High Pressure Hydraulic Hose 140MPa Abrasion Resistance

Hose 140 MPa, DN4 4 layer Super flexible, light weight 4 layer construction Ultra High Pressure Hose


Water jetting / HydraulicHydraulicCoupling compatible


  • Top operator safety
  • Optimal abrasion resistance
  • Super flexible, light weight 4 layer construction
  • Certified and traceable with CiS
  • Custom made assemblies
  • In accordance DIN EN1829-2

This high pressure hose is designed for flexible routing in tight spaces in water jetting as well as hydraulic applications, in both on and offshore environments. The kink resistant 2 spiral layers of high tensile steel make this an extremely safe hose bonded together with 2 open layers of steel wire strengthening the outer cover of polyurethane giving outstanding resistance to wear. Low volumetric expansion (15%) means the overall length of the hose does not vary more than +/-2% and maintains fast response times in hydraulic circuits. The smooth polyamide bore (4.0mm) helps to keep pressure drops to a minimum despite its compact size (9.7mm) and provides robust chemical resistance. Benchmark testing shows this hose is capable of withstanding over 30000 impulses at MWP and 70°C.


Applications: 1. Flexible hydraulic connections in the chemical and oil refining industries 2. Industrial cleaning including the shipbuilding and construction sectors 3. Effective in the removal of built-up layer of sealants, paints or sealed in grime from tight spaces 4. Flexible whip hoses for hydraulic tooling 5. Promoting safe and flexible operation of chemical fluids systems






Inner tube polyamide, 6 spiral layers of maximum tensile steel wire,

outer sheath of polyamide.

ID x OD 19.6 x 33.0 mm
Max. working pressure 140 MPa
Min. burst pressure 350 MPa
Min. bend radius 350 mm (13.8")
Weight 2100 g/m (73.9 oz)
Temperature range Hydraulic -40°C — +100°C (-40°F — +212°F)
Temperature range Water Jetting -10°C — +70°C (14°F — +158°F)
