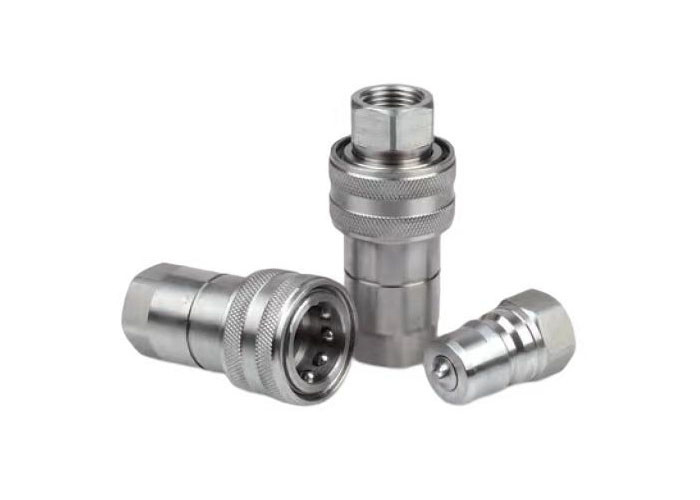

ISO7241B Hydraulic Stainless Steel Quick Couplings CNC Machining Oil Tools

ISO7241B Hydraulic Stainless Steel Quick Couplings CNC Machining Oil Tools

  • High Light

    ISO7241B Quick Release Coupling

    ,

    316 Stainless Steel ISO Hydraulic Couplers

    ,

    CNC Machining Hydraulic Hose Couplers

  • Material
    Stainless Steel,316L
  • Technics
    CNC Machining
  • Type
    ISO7241B
  • Product Name
    Coupling
  • Standard
    ISO7241B
  • Thread
    BSPP/NPT
  • Size
    1/8" To 1"
  • Seal Material
    VITON
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-9
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

ISO7241B Hydraulic Stainless Steel Quick Couplings CNC Machining Oil Tools

316 Stainless Steel Used in oil tools Stainless Steel Hydraulic Quick Couplings



Applications: They are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. They are used in construction quipment, Forestry equipment, agricultural machinery, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications



Specifications:



BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
1/8" 3500 1 -20℃~+180℃ VITON
1/4" 3500 3
3/8" 3000 6
1/2" 3000 12
3/4" 3000 28
1" 2000 50



Feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Dependable ball-locking mechanism holds the mating halves together.
4.Socket and plug are precision machined from solid bar stock.
5.The series conforms to the standard of ISO 7241-B.
6.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series



ISO7241B Hydraulic Stainless Steel Quick Couplings CNC Machining Oil Tools 0

Body Size PARTNO. LS Φ D HEX1 A T
1/8" CB-S1M-1F 50 24 17 10 G1/8 NPT1/8
1/4" CB-S2M-1F 58 28.5 19 13 G1/4 NPT1/4
3/8" CB-S3M-1F 65 35 24 13 G3/8 NPT3/8
1/2" CB-S4M-1F 73.4 42 30 17 G1/2 NPT1/2
3/4" CB-S6M-1F 92 54 36 22 G3/4 NPT3/4
1" CB-S8M-1F 103 65 41 23 G1 NPT1



ISO7241B Hydraulic Stainless Steel Quick Couplings CNC Machining Oil Tools 1

Body Size PARTNO. LP d C HEX2 A T
1/8" CB-P2M-1F 31 10.8 19 14 10 G1/8 NPT1/8
1/4" CB-P2M-1F 36 14.2 22.8 19 13 G1/4 NPT1/4
3/8" CB-P3M-1F 40 19 25 24 13 G3/8 NPT3/8
1/2" CB-P4M-1F 45.5 23.5 28 27 17 G1/2 NPT1/2
3/4" CB-P6M-1F 56 31.5 36 36 22 G3/4 NPT3/4
1" CB-P8M-1F 63 37.8 35.5 45 23 G1 NPT1
