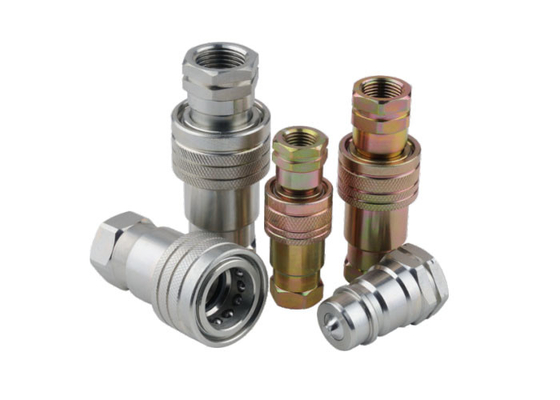

28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type

28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type

  • High Light

    3/4 Inch Hydraulic Hose Couplers

    ,

    Close Type ISO 5675 Coupler

    ,

    28GPM Hydraulic Steel Quick Coupling

  • Material
    Carbon Steel
  • Standard
    ISO5675
  • Rated Pressure
    3000PSI
  • Rated Flow
    28GPM
  • Temperature
    -20℃~120℃
  • Size
    3/4
  • Seal Material
    NBR
  • Compatible With
    PARKER 4000 Series And FASTER NV/NS Series
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-4
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type

PK 3/4INCH CLOSE TYPE HYDRAULIC QUICK COUPLING

Applications: The Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.



Specifications:

Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5000 4000 4000 3000 3000
Rated Flow(GPM) 3 6 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



Features

1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6The series conforms to the standard of ISO5675.
7.Compatible with PARKER 4000 Series and FASTER NV/NS Series



28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type 0

ISO PARTNO. LS ¢ D HEX1 A T
6.3 CB-S2S-PK 55.5 27.6 22.2 12.5 G1/4 NPT1/4
10 CB-S3S-PK 60.5 34 24 13 G3/8 NPT3/8
12.5 CB-S4S-PK 68 38 27 16 G1/2 NPT1/2
20 CB-S6S-PK 83 47.5 35 18 G3/4 NPT3/4
20 CB-S6S-PK(E) 82.5 48.2 34 19 G3/4 NPT3/4
25 CB-S8S-PK 97.5 56.2 41 21 G1 NPT1




28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type 1



ISO PARTNO. LP d C HEX2 A T
6.3 CB-P2S-PK 36 14.2 18.5 19 12.5 G1/4 NPT1/4
10 CB-P3S-PK 40 19 22 24 13 G3/8 NPT3/8
12.5 CB-P4S-PK 46 20.5 29 27 18 G1/2 NPT1/2
20 CB-P6S-PK 51 26.9 28.5 33.3 18 G3/4 NPT3/4
20 CB-P6S-PK(E) 53.5 28 32 34 19 G3/4 NPT3/4
25 CB-P8S-PK 64 31.3 34 41 21 G1" NPT1"
