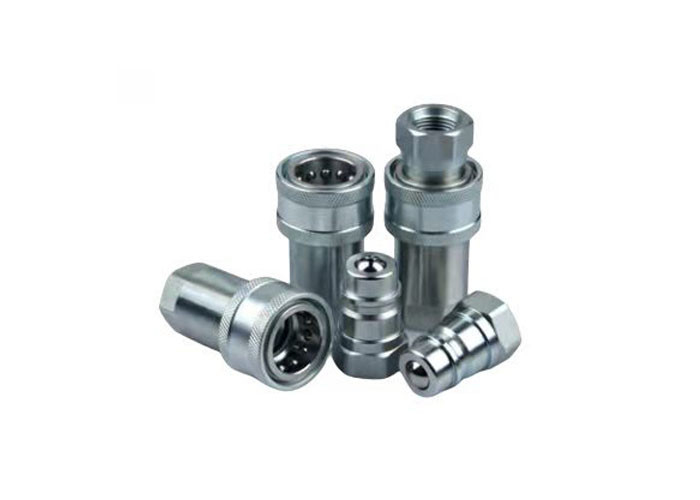

Ball Valves Type ISO 5675 Coupler Steel Hydraulic Quick Coupling For Construction

Ball Valves Type ISO 5675 Coupler Steel Hydraulic Quick Coupling For Construction

  • High Light

    Construction Hydraulic Quick Coupling 3000PSI

    ,

    ISO 5675 Stainless Steel Air Couplers

    ,

    Ball Valves Hydraulic Stainless Quick Coupler

  • Material
    Steel
  • Standard
    ISO5675
  • Size
    1"
  • Rated Pressure
    3000PSI
  • Rated Flow
    50GPM
  • Temperature
    -20℃~120℃
  • Applications
    Agricultural Machinery
  • Compatible With
    PARKER4000 Series And FASTER NV/NS Series
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-4
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Ball Valves Type ISO 5675 Coupler Steel Hydraulic Quick Coupling For Construction

ISO 5675 Ball Valves Type Hydraulic Quick Coupling(Steel) use on construction equipment

Applications: The ISO5675 Series brings to the industry a proven design for use on construction equipment, forestry Equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.



Specifications:

Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5000 4000 4000 3000 3000
Rated Flow(GPM) 3 6 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



Features

  1. Poppet valves available to prevent uncoupled leakage.
  2. Ball valves available for rugged dependability in heavy-duty hydraulic applications within rated working pressure.
  3. Hard, chrome alloy balls are used for valving, It be loaded on the valve seat by the springs.
  4. The valve provides a metal-to-metal seal between the ball and coined seat.
  5. Critical parts are hardened for durability.
  6. Dependable ball-locking mechanism holds the mating halves together.
  7. Socket and plug are precision machined from solid bar stock.
  8. The series conforms to the standard of ISO5675.
  9. Compatible with PARKER 4000 Series and FASTER NV/NS Series.



Ball Valves Type ISO 5675 Coupler Steel Hydraulic Quick Coupling For Construction 0

ISO PARTNO. LS ¢D HEX1 A T
6.3 CB-S2S-5F 53.5 27.6 19 12.5 G1/4 NPT1/4
10 CB-S3S-5F 63 34 24 13 G3/8 NPT3/8
12.5 CB-S4S-5F 66.3 38.6 27 16 G1/2 NPT1/2
20 CB-S6S-5F 82.5 48.2 34 19 G3/4 NPT3/4
20 CB-S6S-5F(E) 83.5 47.5 35 18 G3/4 NPT3/4
25 CB-S8S-5F 96.5 56 41 21 G1 NPT1





Ball Valves Type ISO 5675 Coupler Steel Hydraulic Quick Coupling For Construction 1



ISO PARTNO. LP d C HEX2 A T
6.3 CB-P2S-5F 36 14.2 18.5 19 12.5 G1/4 NPT1/4
10 CB-S3S-5F 40 19 22 24 13 G3/8 NPT3/8
12.5 CB-S4S-5F 43.5 20.5 27 27 16 G1/2 NPT1/2
20 CB-S6S-5F 53.5 28 32 34 19 G3/4 NPT3/4
20 CB-S6S-5F(E) 51 26.9 28.5 33.3 18 G3/4 NPT3/4
25 CB-S8S-5F 63 31.3 38 41 21 G1" NPT1"
