Brass KZD Pneumatic And Hydraulic Quick Coupling Medium Pressure

Brass KZD Pneumatic And Hydraulic Quick Coupling Medium Pressure

  • High Light

    ISO7241B Hydraulic Quick Coupling

    ,

    Medium Pressure Hydraulic Quick Coupling

    ,

    Brass 1000PSI Hydraulic Quick Coupler

  • Product Name
    Quick Coupling
  • Application
    Hydraulic
  • Standard
    ISO7241B
  • Nominal
    1/4-1
  • Type
    Coupling
  • Pressure
    1000PSI
  • Temperature
    -20℃ ~ +120℃
  • Flow
    1-150GPM
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-1
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

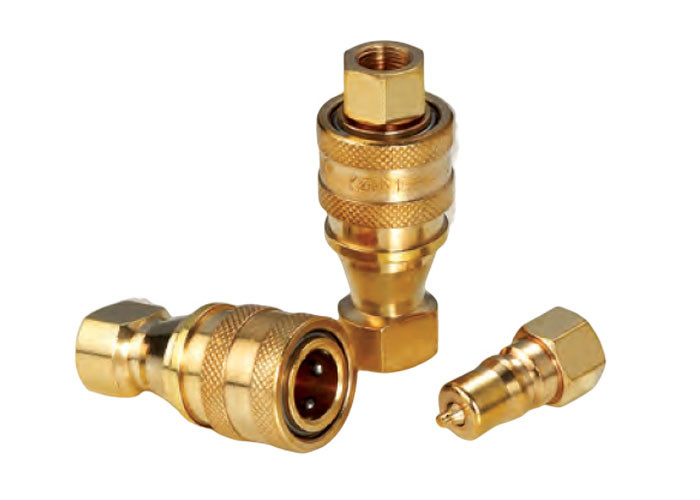

Brass KZD Pneumatic And Hydraulic Quick Coupling Medium Pressure

KZD Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling(Brass)



KZD Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling(Brass)
Applications: KZD couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZD couplings are also used with chemicals, water, steam, and some gases.



Brass KZD Pneumatic And Hydraulic Quick Coupling Medium Pressure 0



KZD Series couplings feature:

1.Poppet valves available to prevent uncoupled leakage.

2.Poppet valves open automatially when coupled within rated working pressure, to keep the flow expeditely.

3.Dependable ball-locking mechanism holds the mating halves together.

4.Socket and plug are precision machined from solid bar stock.

5.KZD series conforms to the standard ISO7241-B.

6.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.





Brass KZD Pneumatic And Hydraulic Quick Coupling Medium Pressure 1

PARTNO. LS Φ D HS A T
CB-S1B-KZD 48 24 14 8 G1/8
CB-S2B-KZD 58 27 19 12.5 ZG1/4
CB-S3B-KZD 65 35 22 13 ZG3/8
CB-S4B-KZD 72.5 45 29 14 ZG1/2
CB-S6B-KZD 88 54 36 17 ZG3/4
CB-S8B-KZD 102 64.5 41 23 ZG1
CB-S10B-KZD 115 69 54 27 ZG1-1/4
CB-S12B-KZD 124 79 60 27 ZG1-1/2
CB-S16B-KZD 132 102 77 30 ZG2





Brass KZD Pneumatic And Hydraulic Quick Coupling Medium Pressure 2

PARTNO. LP d C HP A T
CB-P1B-KZD 29 10.8 19 14 8 G1/8
CB-P2B-KZD 36 14.2 22.5 17 12.5 ZG1/4
CB-P3B-KZD 40 19 25 22 13 ZG3/8
CB-P4B-KZD 44 23.5 28 27 14 ZG1/2
CB-P6B-KZD 52 31.4 36 36 17 ZG3/4
CB-P8B-KZD 62 37.8 40 41 23 ZG1
CB-P10B-KZD 70 45 45 52 27 ZG1-1/4
CB-P12B-KZD 75 50 49 60 27 ZG1-1/2
CB-P16B-KZD 80 70 52 77 30 ZG2
