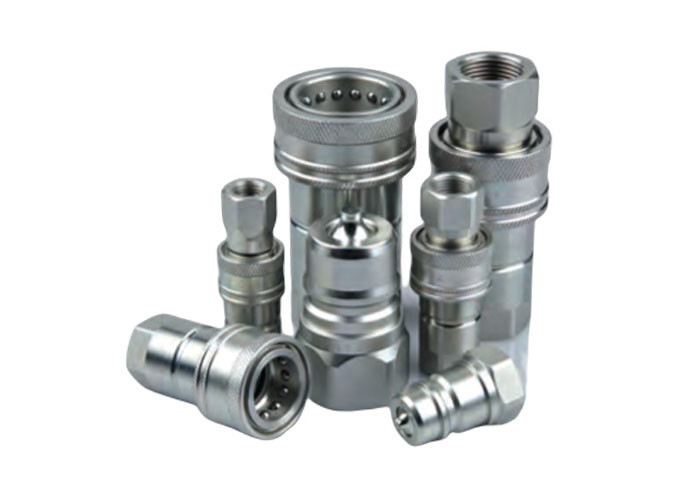

Steel Isoa New Close Type Hydraulic Quick Connect Couplings ISO 7241A

Steel Isoa New Close Type Hydraulic Quick Connect Couplings ISO 7241A

  • High Light

    ISO 7241A Hydraulic Quick Connect Couplings

    ,

    5000PSI Hydraulic Quick Connect Couplings

    ,

    ISO 7241A Quick Release Hydraulic Couplings

  • Material
    Steel
  • Rated Pressure
    5000PSI
  • Connection
    Female/Male
  • Rated Flow
    3-50GPM
  • Type
    ISO 7241A
  • Size
    1/4''-1''
  • Interchange
    PARKER 6600 Series/HANSEN HA 15000 Series
  • Product Name
    Hydraulic Quick Coupler
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-10
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Steel Isoa New Close Type Hydraulic Quick Connect Couplings ISO 7241A

ISOA NEW CLOSE TYPE HYDRAULIC QUICK COUPLING STEEL


Applications: The ISOA Series bring to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, oil equipment steel mill machinery, and other demanding hydraulic applications.



Steel Isoa New Close Type Hydraulic Quick Connect Couplings ISO 7241A 0
 Specifications:

BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
1/4" 5000 3 -20℃~+120℃ NBR
3/8" 5000 6
1/2" 4000 12
3/4" 4000 28
1" 3000 50



ISOA Series couplings feature:
· New valve design, it can resistance damage from high flow and the pressure of impulse that providing advanced performance.
· Poppet valves available to prevent uncoupled leakage.
· Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
· Critical parts are hardened for durability.
· Dependable ball-locking mechanism holds the mating halves together.
· Socket and plug are precision machined from solid bar stock.
· New Chrome plating treatment provides advanced anti-rust performance
· LSQ-ISOA series conforms to the standard of ISO 7241-A
· Compatible with PARKER 6600 Series,FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series



Steel Isoa New Close Type Hydraulic Quick Connect Couplings ISO 7241A 1

Body Size PARTNO. LS Φ D HS A T
1/4" CB-S2S-10F 50 26 S19*6 13 G1/4 NPT1/4
3/8" CB-S3S-10F 60 31.5 S22*6 16 G3/8 NPT3/8
1/2" CB-S4S-10F 68 39 S27*6 18 G1/2 NPT1/2
3/4" CB-S6S-10F 80 48 S34*6 20.5 G3/4 NPT3/4
1" CB-S8S-10F 99.5 53 S41*6 20.5 G1 NPT1





Steel Isoa New Close Type Hydraulic Quick Connect Couplings ISO 7241A 2

Body Size PARTNO. LP d C HP A T
1/4" CB-P2S-10F 38.5 11.8 15 S19*6 13 G1/4 NPT1/4
3/8" CB-P3S-10F 39 17.3 19 S22*6 16 G3/8 NPT3/8
1/2" CB-P4S-10F 44 20.5 29 S27*6 18 G1/2 NPT1/2
3/4" CB-P6S-10F 55 29 29 S34*6 20.5 G3/4 NPT3/4
1" CB-P8S-10F 66 34.3 35 S41*6 20.5 G1 NPT1
