Brass Universal Type Mold Shut Off Coupling Rectus 86/87/88 series

Brass Universal Type Mold Shut Off Coupling Rectus 86/87/88 series

  • High Light

    Universal Mold Shut Off Quick Coupling

    ,

    Brass 15Mpa Shut Off Coupling

    ,

    FKM Seal Shut Off Coupling

  • Material
    Brass
  • Technics
    Moldmate
  • Thread
    Female/Male
  • Interchange
    Parker Moldmate Series
  • Pressure
    15Mpa
  • Name
    Quick Coupling
  • Seal
    FKM
  • Size
    G1/4-G1/2
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-7
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

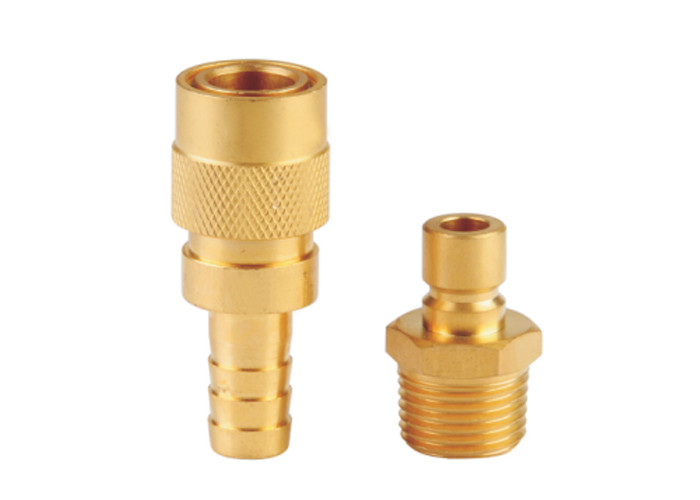

Brass Universal Type Mold Shut Off Coupling Rectus 86/87/88 series

Universal Type Mold Quick Couplings Rectus 86/87/88 series Shut Off Quick Coupling



Features:

1. Ball locking mechanism

2. Non-valved couplers have minimum flow resistance for maximum cooling

3. Couplers and nipple are precision machined from solid bar stock.

4. Widest choice of end fittings available, including straight,Elbow with standard hose barb or Push-Lok barbs for easy installation.

5. Interchange:Parker Moldmate Series ,Rectus 86/87/88 series.



BODY SIZE Rated Pressure (Mpa) Rated Flow (L/min) Temperature Range(FKM)
2" 15 11.5 -20℃~+200℃
3" 15 23
4" 15 45
Silicone Temperature -60℃~+200℃



Brass Universal Type Mold Shut Off Coupling Rectus 86/87/88 series 0

Brass Universal Type Mold Shut Off Coupling Rectus 86/87/88 series 1



Brass Universal Type Mold Shut Off Coupling Rectus 86/87/88 series 2



Brass Universal Type Mold Shut Off Coupling Rectus 86/87/88 series 3

Brass Universal Type Mold Shut Off Coupling Rectus 86/87/88 series 4



Brass Universal Type Mold Shut Off Coupling Rectus 86/87/88 series 5







Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
