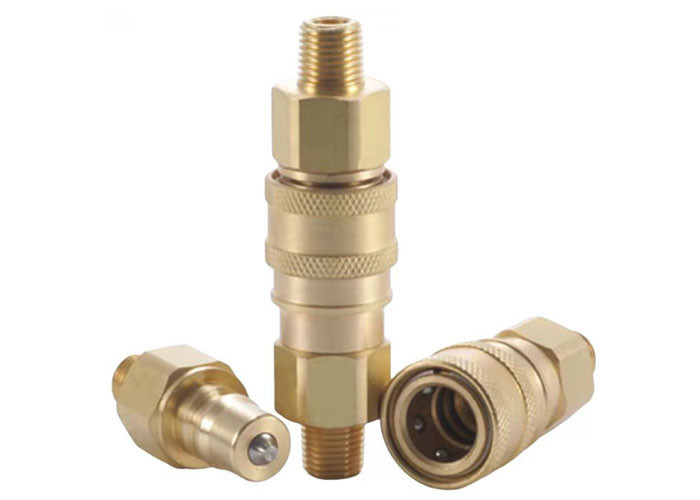

50GPM Pneumatic Hydraulic Quick Coupler 1000PSI NBR Seal

50GPM Pneumatic Hydraulic Quick Coupler 1000PSI NBR Seal

50GPM Hydraulic Quick Coupler

Hydraulic Quick Coupler 1000PSI

NBR Seal Hydraulic Quick Coupler

Place of Origin:

Shanghai, China

Brand Name:

carterberg

Certification:

IATF16949

Model Number:

CB-SP-1F-S8

Contact Us
Request A Quote
Product Details
Product Name:
Hydraulic Coupling
Application:
Hydraulic
Standard:
ISO7241B
Nominal:
1/4-1
Type:
Coupling
Pressure:
1000PSI
Temperature:
-20℃ ~ +120℃
Rated Flow:
3-50GPM
Highlight:

50GPM Hydraulic Quick Coupler

,

Hydraulic Quick Coupler 1000PSI

,

NBR Seal Hydraulic Quick Coupler

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
carton
Delivery Time
7-20 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
5000~20000 pc/month
Product Description

Want to explore more ISO 7241-B hydraulic couplers? Click here to view our full series: ISO 7241-B Series Overview »

Medium-pressure high performance pneumatic and hydraulic quick coupling(BRASS)

Applications: It used across the spectrum of hydraulic applications,These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment,and a loss of fluid is undesirable.It used on construction Equipment,forestry equipment,agricultural Machinery,oil tools,steel mill machinery,and other demanding hydraulic applications.


Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 1000 1000 1000 1000 1000
Rated Flow(GPM) 3 6 12 28 50
Temperature Range -20℃ to +120℃
Stander seal material NBR


Feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. LSQ-S8 series conforms to the standard of ISO 7241-B.
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series


Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.

50GPM Pneumatic Hydraulic Quick Coupler 1000PSI NBR Seal 0



Body Size PARTNO. LS Φ D HS A T
1/4" CB-S2B-1M 62.5 27 22 13 ZG1/4 NPT1/4
3/8" CB-S3B-1M 68.5 35 27 13 ZG3/8 NPT3/8
1/2" CB-S4B-1M 77.5 45 30 16 ZG1/2 NPT1/2
3/4" CB-S6B-1M 93.5 54 36 18 ZG3/4 NPT3/4
1" CB-S8B-1M 98 64.5 41 20 ZG1 NPT1



Body Size PARTNO. LP d C HP A T
1/4" CB-P2B-1M 53 14.2 22.5 22 13 ZG1/4 NPT1/4
3/8" CB-P3B-1M 55.5 19 25 27 13 ZG3/8 NPT3/8
1/2" CB-P4B-1M 64.5 23.5 28 30 16 ZG1/2 NPT1/2
3/4" CB-P6B-1M 74.5 31.4 36 36 18 ZG3/4 NPT3/4
1" CB-P8B-1M 78 37.8 40 41 20 ZG1 NPT1


Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
