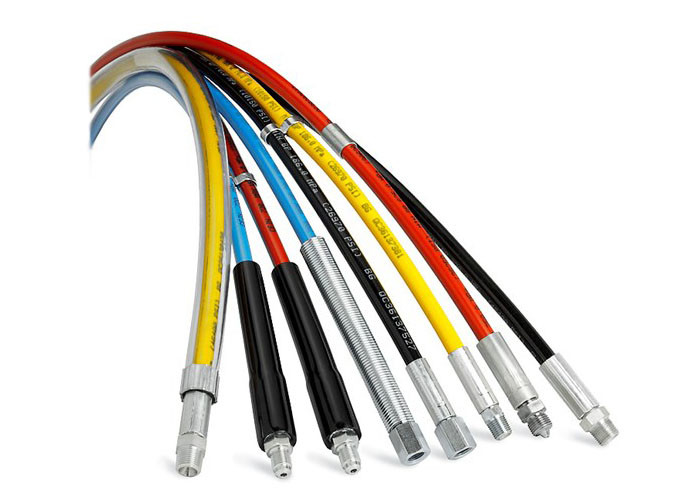

70Mpa Ultra High Pressure Hose DN10 4 Layer Kink Resistant

70Mpa Ultra High Pressure Hose DN10 4 Layer Kink Resistant

  • High Light

    70Mpa Ultra High Pressure Hose

    ,

    Ultra High Pressure Hose DN10

    ,

    PA12 Kink Resistant Ultra High Pressure Hose

  • Name
    Hydraulic Hose
  • Color
    Various
  • ID X OD
    9.8 X 17.9 Mm
  • Max. Working Pressure
    70 MPa
  • Min. Burst Pressure
    230 MPa
  • Min. Bend Radius
    120 Mm
  • Weight
    440 G/m
  • Temperature
    -40°C — +100°C
  • Place of Origin
    Sweden
  • Brand Name
    CEJN
  • Certification
    IATF16949
  • Model Number
    H95170
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

70Mpa Ultra High Pressure Hose DN10 4 Layer Kink Resistant

Hydraulic Coupling compatible Hose 70 Mpa DN10 4 layer Ultra High Pressure Hose

HydraulicCoupling compatible

  • Suitable for hydraulic 70MPa applications
  • DN10 bore high flow
  • Kink-resistant steel wire reinforced construction
  • Excellent chemical resistance due to polyamide core tube
  • Wide range of fittings available







This CEJN high pressure hydraulic hose has a spiral steel reinforced, polymer construction, that picks up the requirement for a larger bore. The 2 spiral layers of high tensile steel make this an extremely safe hose. Together with the outstanding resistance to wear from the 2 additional open layers of steel wire minimising the spread of any tears in the polyurethane cover and giving stronger kink-resistance. Low volumetric expansion (8.6%) means the overall length of the hose does no vary more than +/-2% and gives fast response times in hydraulic systems. The smooth polyamide large bore (9.8mm) helps to keep pressure drops to a minimum and provide robust chemical resistance. The superior wear resistance and large bore makes this hose ideal for application requiring higher volumes of hydraulic fluid transmission in rough environments. Benchmark testing shows this hose is capable of withstanding over 200000 impulses at 70MPa and 100°C.





Applications: 1. High pressure service for general industrial and mobile hydraulic applications as well as with gases 2. Promoting flexible operation of jacking systems 3. Usable for a wide variety of fluids due to the polyamide core tube 4. For working pressure from 46.5 MPa (6.740 psi) to 70MPa (10153 psi)







70Mpa Ultra High Pressure Hose DN10 4 Layer Kink Resistant 0





Design

Inner tube of Polyamide (PA12) Two spiral layers and two open spiral

layers of tensile steel wire. Outer sheath of polyurethane (PUR)

ID x OD 9.8 x 17.9 mm
Max. working pressure 70 MPa
Min. burst pressure 230 MPa
Min. bend radius 120 mm (4.7")
Weight 440 g/m (15.5 oz)
Temperature range Hydraulic -40°C — +100°C (-40°F — +212°F)
