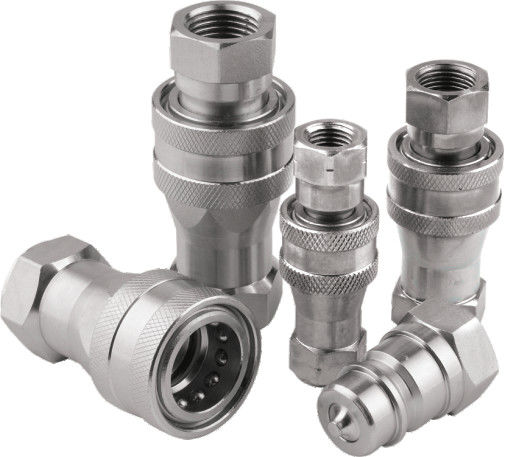

CB-SPM-10F Stainless Steel Hydraulic Quick Coupling (1" Female Half, ISO 7241-A)
The CB-SPM-10F is a 1-inch female hydraulic quick coupling designed and manufactured according to the ISO 7241-A international standard. Built with a stainless-steel body (SUS304 or SUS316) and a poppet-style shut-off valve, it provides a reliable and leak-tight connection in high-pressure hydraulic systems.
This model is widely used in mobile equipment, OEM hydraulic circuits, and corrosive environments where performance, compatibility, and ease of servicing are essential.
Looking for the complete ISO 7241-A coupling lineup?
Key Features
• Standardized Fit – Interchangeable with Parker 6600, Faster ANV, Aeroquip 5600, and Hansen HA series.
• Robust Valve Design – Internal poppet valve mechanism provides automatic shut-off during disconnection.
• Corrosion Resistance – SUS304 or SUS316 stainless steel available, ideal for demanding applications.
• High-Flow 1” Size – Handles larger volumes and pressure levels in 1” hydraulic systems.
• Multiple Thread Options – G (BSP), NPT, and BSPP threads available upon request.
• Seal Options – Standard NBR seals, with FKM (Viton) or EPDM optional.

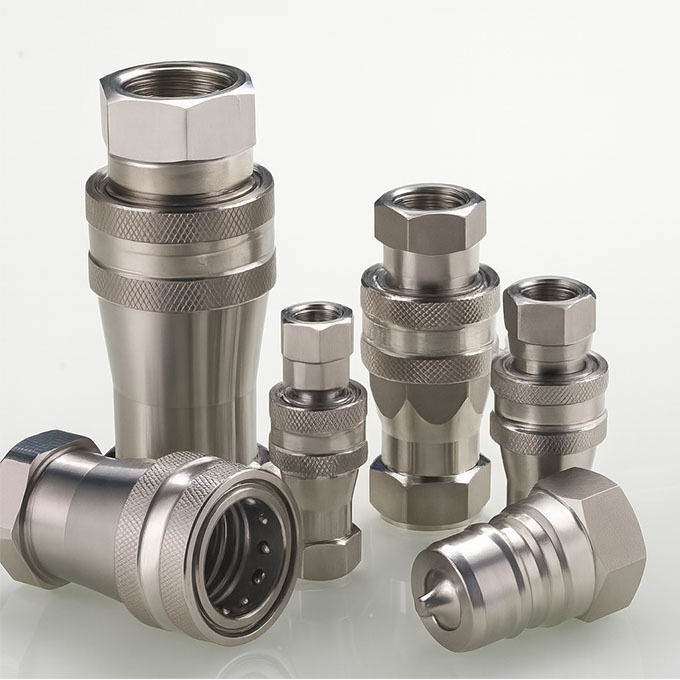

Technical Construction
The CB-SPM-10F features a female socket body with an integrated knurled sleeve for manual connection and disconnection. Internally, a spring-loaded poppet valve ensures secure shut-off to prevent fluid loss and contamination during uncoupling.
This model supports working pressures up to 3000 PSI (depending on system size), and is suitable for both static and mobile systems requiring quick maintenance and low downtime.
Dimensional Overview

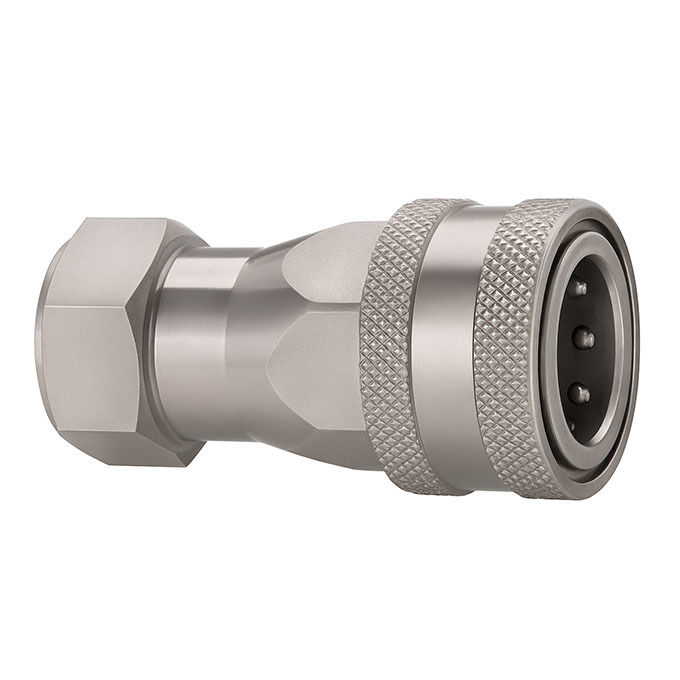

Female (Socket)
| Body Size |
PARTNO. |
LS |
Φ D |
HS |
A |
T |
| 1/4" |
CB-S2M-10F |
50 |
26 |
19*6 |
13 |
G1/4 NPT1/4 |
| 3/8" |
CB-S3M-10F |
60 |
31.5 |
22*6 |
14 |
G3/8 NPT3/8 |
| 1/2" |
CB-S4M-10F |
68 |
39 |
27*6 |
16 |
G1/2 NPT1/2 |
| 3/4" |
CB-S6M-10F |
80 |
48 |
34*6 |
18 |
G3/4 NPT3/4 |
| 1" |
CB-S8M-10F |
99.5 |
53 |
41*6 |
21 |
G1 NPT1 |
| 1-1/4" |
CB-S10M-10F |
112 |
69 |
50*6 |
25 |
G1-1/4 NPT1-1/4 |
| 1-1/2" |
CB-S12M-10F |
127.5 |
84.5 |
60*6 |
25.5 |
G1-1/2 NPT1-1/2 |
| 2" |
CB-S16M-10F |
158 |
99 |
75*6 |
26 |
G2 NPT2 |

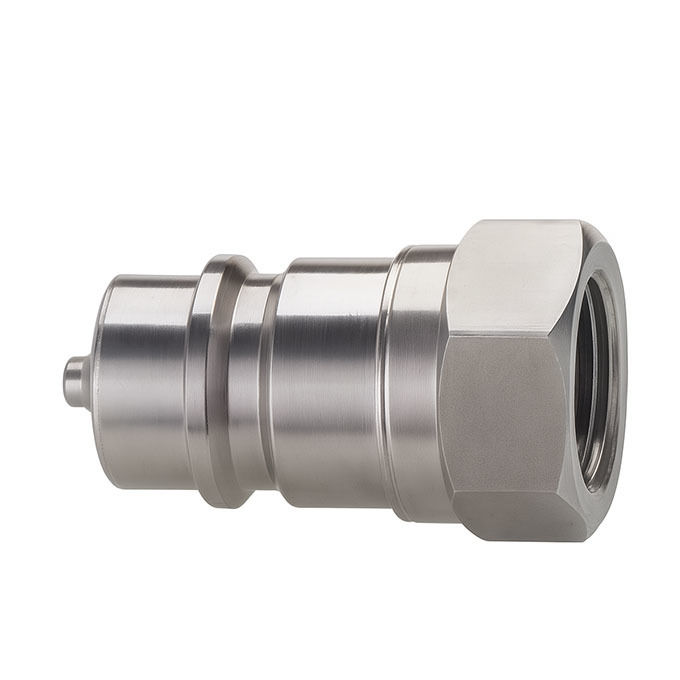

Male (Plug)
| Body Size |
PARTNO. |
LP |
C |
HP |
A |
T |
| 1/4" |
CB-P2M-10F |
35.5 |
15 |
19*6 |
13 |
G1/4 NPT1/4 |
| 3/8" |
CB-P3M-10F |
42 |
26.5 |
22*6 |
14 |
G3/8 NPT3/8 |
| 1/2" |
CB-P4M-10F |
46 |
26.5 |
27*6 |
16 |
G1/2 NPT1/2 |
| 3/4" |
CB-P6M-10F |
54 |
28 |
34*6 |
18 |
G3/4 NPT3/4 |
| 1" |
CB-P8M-10F |
65.5 |
35 |
41*6 |
21 |
G1 NPT1 |
| 1-1/4" |
CB-P10M-10F |
70 |
45 |
50*6 |
25 |
G1-1/4 NPT1-1/4 |
| 1-1/2" |
CB-P12M-10F |
78 |
51 |
60*6 |
25.5 |
G1-1/2 NPT1-1/2 |
| 2" |
CB-P16M-10F |
98 |
61 |
75*6 |
26 |
G2 NPT2 |
Material & Seal Selection Guide
SUS304 – Cost-effective corrosion protection
SUS316 – Enhanced resistance to saltwater, chemicals, and extreme weather
Seals:
• NBR: General-purpose hydraulic oils
• FKM (Viton): High temperature, synthetic fluids
• EPDM: Water-glycol, phosphate ester systems
These combinations allow engineers to configure CB-SPM-10F for specific environments, such as offshore, agriculture, or mining.
Compatibility Chart
| Carterberg Model |
Parker |
Faster |
Aeroquip |
Hansen |
| CB-SPM-10F |
6600-10 |
ANV 10 |
5600-10 |
HA 15000-10F |
Ensure thread compatibility and sealing configuration when replacing existing couplers.
Applications
• Excavators & wheel loaders
• Forestry attachments
• Underground mining machinery
• Hydraulic power units
• Agricultural sprayers
This model is often selected by maintenance technicians and OEM engineers needing a global standard coupler that is robust, service-friendly, and compatible across brands.
Frequently Asked Questions (FAQ)
Q: Is CB-SPM-10F compatible with Parker 6600 Series?
A: Yes. It matches the dimensions and functional performance, including valve structure and locking action.
Q: What’s the difference between SUS304 and SUS316 versions?
A: SUS316 provides higher corrosion resistance for use in marine, chemical, or outdoor exposure.
Q: Which seal should I use?
A: NBR suits most systems; use FKM for higher temperatures, or EPDM for water-based fluids.
