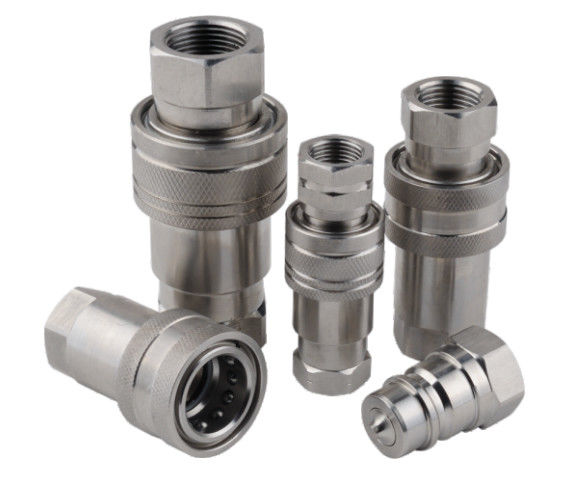

Ball Lock ISO 7241 A Quick Couplings , Stainless Steel Quick Coupling

Ball Lock ISO 7241 A Quick Couplings , Stainless Steel Quick Coupling

  • High Light

    CB-10 ISO 7241 A Quick Couplings

    ,

    0.75in ISO 7241 A Quick Couplings

    ,

    ISO 7241 A stainless steel quick coupling

  • Material
    Zinc-plated Steel, Stainless Steel
  • Rated Pressure
    20.7 Mpa
  • Connection
    Female/Male
  • Rated Flow
    190 L/min
  • Type
    ISO 7241A
  • Size
    1/4''-1''
  • Valves
    Ball / Poppet
  • Interchange
    PARKER 6600 Series/HANSEN HA 15000 Series
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-10
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Ball Lock ISO 7241 A Quick Couplings , Stainless Steel Quick Coupling

ISO7241A interchange with Hansen 15000 Series Quick couplings

Standard Materials

  • zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

CB-10 Series Quick Couplings are general purpose hydraulic and fluid transfer coupling that conforms to the dimensional requirements of ISO 7241 A Series. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1".

Features

  1. Ball lock
  2. Manual connect, disconnect
  3. Poppet valving
  4. Slim profile
  5. Zinc plated steel construction
  6. NPTF and BSPP end connections
  7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.
BODY SIZERated Pressure (PSI)Rated Pressure (BAR)Standard seal material
1/4"4568315NBR
3/8"4568315
1/2"3625250
3/4"3625250
1"2900200

Ball Lock ISO 7241 A Quick Couplings , Stainless Steel Quick Coupling 0

Body SizePARTNO.ThreadABAcross Flats
1/4"CB-S2S-10FN1/4-181.890.980.75
1/4"CB-S2S-10FG1/4-191.890.980.75
3/8"CB-S3S-10FN3/8-182.211.180.91
3/8"CB-S3S-10FG3/8-192.211.180.91
1/2"CB-S4S-10FN1/2-142.641.491.06
1/2"CB-S4S-10FG1/2-142.641.491.06
3/4"CB-S6S-10FN3/4-143.251.881.38
3/4"CB-S6S-10FG3/4-143.251.881.38
1"CB-S8S-10FN1-113.862.081.62
1"CB-S8S-10FG1-113.862.081.62

Ball Lock ISO 7241 A Quick Couplings , Stainless Steel Quick Coupling 1

Body SizePARTNO.ThreadCDEHEX
1/4"CB-P2S-10FN1/4-181.410.860.800.75
1/4"CB-P2S-10FG1/4-191.410.860.800.75
3/8"CB-P3S-10FN3/8-181.631.040.790.91
3/8"CB-P3S-10FG3/8-191.631.040.790.91
1/2"CB-P4S-10FN1/2-141.921.220.921.06
1/2"CB-P4S-10FG1/2-141.921.220.921.06
3/4"CB-P6S-10FN3/4-142.421.581.091.38
3/4"CB-P6S-10FG3/4-142.421.581.091.38
1"CB-P8S-10FN1-112.831.851.191.62
1"CB-P8S-10FG1-112.831.851.191.62
