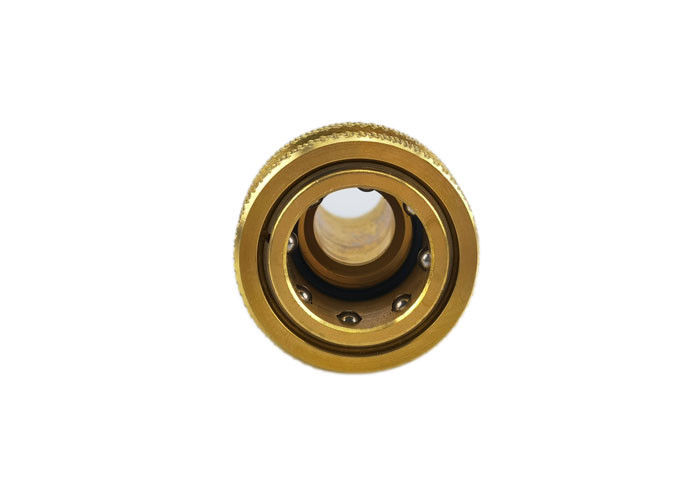

NBR Straight Through Coupler , Brass Quick Connect

NBR Straight Through Coupler , Brass Quick Connect

  • High Light

    CB-11 Straight Through Coupler

    ,

    iso Straight Through Coupler

    ,

    IATF 16949 brass quick connect

  • Material
    Stainless
  • Connection
    Hose
  • Size
    1/8''-1''
  • Compatible With
    PARKER ST Series, HANSEN ST Series, FOSTER FST Series
  • Product Name
    Hose Coupler
  • Temperature
    -20~120°C
  • Type
    Fittings
  • Rated Flow
    45L/min
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-11
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

NBR Straight Through Coupler , Brass Quick Connect

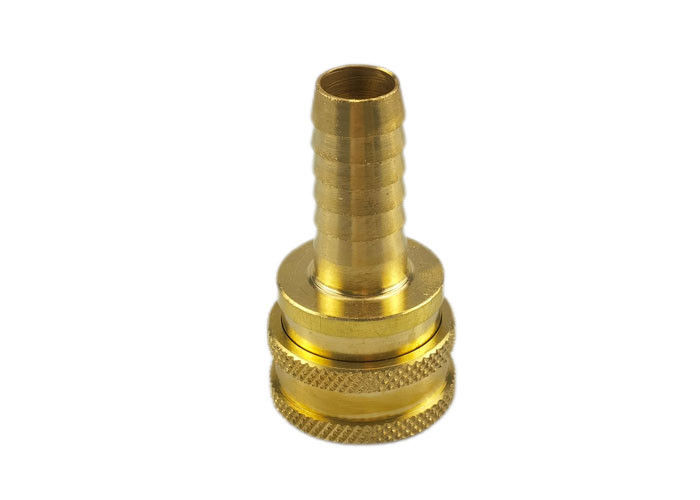

3/8'' Hose Stem Connections straight-through coupler



Carterberg, one of the independent brands of PMC, represents diversified fluid connector series products, covering hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings. Provide customers with high quality products, and OEM for international first-class brands.

Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual operation
  3. Smooth bore permits free flow of liquid or gas
  4. Male and female NPTF, BSPP and hose stem connections
  5. Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.
BODY SIZE Rated Pressure (PSI) Rated Pressure (BAR) Standard seal material
1/8" 2800 193 NBR
1/4" 5200 359
3/8" 2800 193
1/2" 2200 152
3/4" 1700 117
1" 1300 90





CB-11 Series straight-through couplings are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.

NBR Straight Through Coupler , Brass Quick Connect 0

Body Size PARTNO. Brass PARTNO. Stainless Hose I.D. A B
1/8" CB-S1B-11H CB-S1L-11H 3/16’’ 1.41 0.69
1/8" CB-S1B-11H CB-S1L-11H 1/4’’ 1.41 0.69
1/4" CB-S2B-11H CB-S2L-11H 1/4’’ 2.10 0.94
3/8" CB-S3B-11H CB-S3L-11H 3/8’’ 2.09 1.13
1/2" CB-S4B-11H CB-S4L-11H 1/2’’ 2.19 1.31
3/4" CB-S6B-11H CB-S6L-11H 3/4’’ 3.19 1.69
1" CB-S8B-11H CB-S8L-11H 1’’ 3.32 2.00

NBR Straight Through Coupler , Brass Quick Connect 1



Body Size PARTNO. Brass PARTNO. Steel PARTNO. Stainless Hose I.D. A B
1/8" CB-P1B-11H CB-P1S-11H CB-P1L-11H 3/16’’ 1.28 0.44
1/8" CB-P1B-11H CB-P1S-11H CB-P1L-11H 1/4’’ 1.28 0.44
1/4" CB-P2B-11H CB-P2S-11H CB-P2L-11H 1/4’’ 1.93 0.56
3/8" CB-P3B-11H CB-P3S-11H CB-P3L-11H 3/8’’ 2.09 0.69
1/2" CB-P4B-11H CB-P4S-11H CB-P4L-11H 1/2’’ 2.17 0.88
3/4" CB-P6B-11H CB-P6S-11H CB-P6L-11H 3/4’’ 3.17 1.19
1" CB-P8B-11H CB-P8S-11H CB-P8L-11H 1’’ 3.28 1.50
