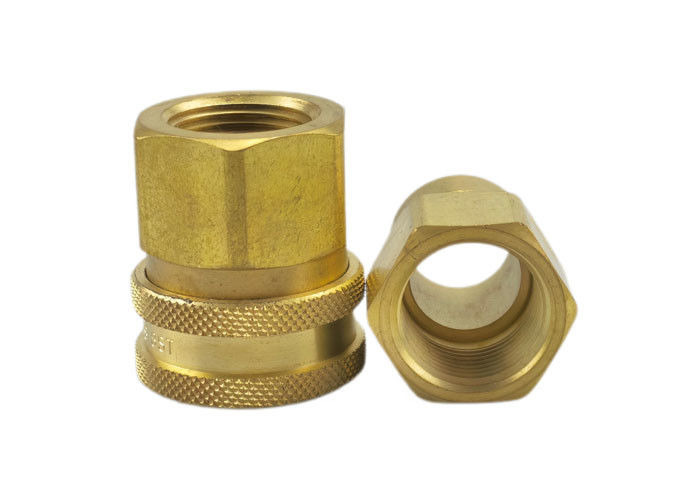

Water Pipe System 1-1/2'' Brass Straight Coupling

Water Pipe System 1-1/2'' Brass Straight Coupling

  • High Light

    IATF 16949 Brass Straight Coupling

    ,

    NBR Brass Straight Coupling

    ,

    EPDM brass quick connect fittings

  • Connection
    Female
  • Color
    Yellow
  • Rated Flow
    3 To 100
  • Size
    Customized Size
  • Application
    Water Pipe System
  • Compatible With
    PARKER ST Series, HANSEN ST Series, FOSTER FST Series
  • Material
    Brass,stainless Steel
  • Name
    Quick Connector
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-11
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Water Pipe System 1-1/2'' Brass Straight Coupling

1-1/2'' CB-11 Series Non-Valved Series maximum flow straight-through couplings



Features

  1. Ball lock
  2. Manual operation
  3. Smooth bore permits free flow of liquid or gas
  4. Male and female NPTF, BSPP and hose stem connections
  5. Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.



Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

CB-11 Series straight-through couplings are designed for use where minimum pressure drop is required and valving is not needed. They are well suited for use on pressure wash, steam cleaning and carpet cleaning equipment, and many fluid transfer systems. Body sizes range from 1/8" to 1".

BODY SIZE Rated Pressure (PSI) Rated Pressure (BAR) Standard seal material
1/8" 2800 193 NBR
1/4" 5200 359
3/8" 2800 193
1/2" 2200 152
3/4" 1700 117
1" 1300 90

Water Pipe System 1-1/2'' Brass Straight Coupling 0

Body Size PARTNO. Brass PARTNO. Stainless Thread A B HEX
1/8" CB-S1B-11FN CB-S1L-11FN 1/8-27 1.06 0.69 0.50
1/8" CB-S1B-11FG CB-S1L-11FG 1/8-28 1.03 0.69 0.56
1/4" CB-S2B-11FN CB-S2L-11FN 1/4-18 1.50 0.94 0.81
1/4" CB-S2B-11FG CB-S2L-11FG 1/4-19 1.50 0.94 0.81
3/8" CB-S3B-11FN CB-S3L-11FN 3/8-18 1.59 1.13 1.00
3/8" CB-S3B-11FG CB-S3L-11FG 3/8-19 1.59 1.13 1.00
1/2" CB-S4B-11FN CB-S4L-11FN 1/2-14 1.91 1.31 1.13
1/2" CB-S4B-11FG CB-S4L-11FG 1/2-14 1.91 1.31 1.13
3/4" CB-S6B-11FN CB-S6L-11FN 3/4-14 2.06 1.69 1.44
3/4" CB-S6B-11FG CB-S6L-11FG 3/4-14 2.06 1.69 1.44
1" CB-S8B-11FN CB-S8L-11FN 1-11Water Pipe System 1-1/2'' Brass Straight Coupling 1 2.31 2.00 1.75
1" CB-S8B-11FG CB-S8L-11FG 1-11 2.33 2.00 1.75

Water Pipe System 1-1/2'' Brass Straight Coupling 2

Body Size PARTNO. Brass PARTNO. Steel PARTNO. Stainless Thread C D HEX
1/8" CB-P1B-11FN CB-P1S-11FN CB-P1L-11FN 1/8-27 1.00 0.58 0.50
1/8" CB-P1B-11FG CB-P1S-11FG CB-P1L-11FG 1/8-28 0.97 0.65 0.56
1/4" CB-P2B-11FN CB-P2S-11FN CB-P2L-11FN 1/4-18 1.50 0.79 0.69
1/4" CB-P2B-11FG CB-P2S-11FG CB-P2L-11FG 1/4-19 1.45 0.87 0.75
3/8" CB-P3B-11FN CB-P3S-11FN CB-P3L-11FN 3/8-18 1.63 0.94 0.81
3/8" CB-P3B-11FG CB-P3S-11FG CB-P3L-11FG 3/8-19 1.63 1.01 0.88
1/2" CB-P4B-11FN CB-P4S-11FN CB-P4L-11FN 1/2-14 1.94 1.15 1.00
1/2" CB-P4B-11FG CB-P4S-11FG CB-P4L-11FG 1/2-14 1.92 1.23 1.06
3/4" CB-P6B-11FN CB-P6S-11FN CB-P6L-11FN 3/4-14 2.06 1.37 1.19
3/4" CB-P6B-11FG CB-P6S-11FG CB-P6L-11FG 3/4-14 2.01 1.52 1.31
1" CB-P8B-11FN CB-P8S-11FN CB-P8L-11FN 1-11Water Pipe System 1-1/2'' Brass Straight Coupling 1 2.21 1.80 1.56
1" CB-P8B-11FG CB-P8S-11FG CB-P8L-11FG 1-11 2.23 1.80 1.56
