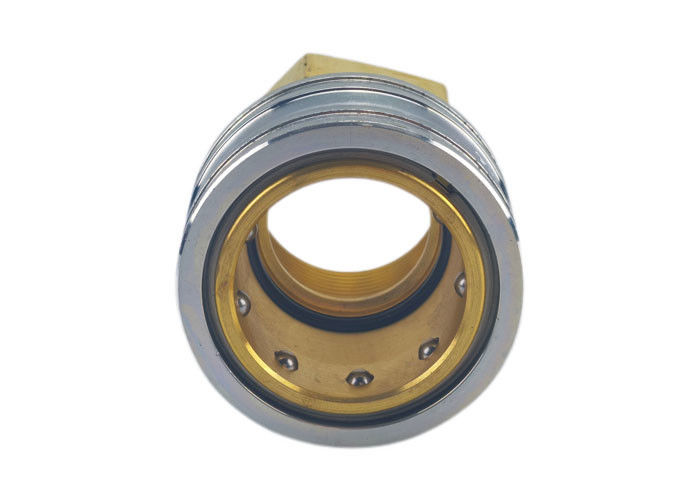

1-1/4'' Brass Non Valved Series Straight Through Coupler

1-1/4'' Brass Non Valved Series Straight Through Coupler

Products - Straight Through Coupler
  • Highlight

    IATF 16949 Straight Through Coupler

    ,

    NBR Straight Through Coupler

    ,

    EPDM brass quick connect water fittings

  • Material
    Brass,stainless Steel
  • Color
    Yellow
  • Connection
    Female
  • Name
    Quick Connector
  • Application
    Water Pipe System
  • Size
    Customized Size
  • Rated Flow
    3 To 100
  • Compatible With
    PARKER ST Series, HANSEN ST Series, FOSTER FST Series
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-11
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

1-1/4'' Brass Non Valved Series Straight Through Coupler

  • 1-1/4'' Brass Non Valved Series Straight Through Coupler
  • 1-1/4'' Brass Non Valved Series Straight Through Coupler
  • 1-1/4'' Brass Non Valved Series Straight Through Coupler
Get Price Contact Now

1-1/4'' CB-11 Series Non-Valved Series maximum flow straight-through couplings



Body sizes range from 1/8" to 1". They are well suited for use on pressure wash, steam cleaning and carpet cleaning equipment, and many fluid transfer systems. CB-11 Series straight-through couplings are designed for use where minimum pressure drop is required and valving is not needed.

Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual operation
  3. Smooth bore permits free flow of liquid or gas
  4. Male and female NPTF, BSPP and hose stem connections
  5. Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.
BODY SIZE Rated Pressure (PSI) Rated Pressure (BAR) Standard seal material
1/8" 2800 193 NBR
1/4" 5200 359
3/8" 2800 193
1/2" 2200 152
3/4" 1700 117
1" 1300 90

1-1/4'' Brass Non Valved Series Straight Through Coupler 0

Body Size PARTNO. Brass PARTNO. Stainless Thread A B HEX
1/8" CB-S1B-11FN CB-S1L-11FN 1/8-27 1.06 0.69 0.50
1/8" CB-S1B-11FG CB-S1L-11FG 1/8-28 1.03 0.69 0.56
1/4" CB-S2B-11FN CB-S2L-11FN 1/4-18 1.50 0.94 0.81
1/4" CB-S2B-11FG CB-S2L-11FG 1/4-19 1.50 0.94 0.81
3/8" CB-S3B-11FN CB-S3L-11FN 3/8-18 1.59 1.13 1.00
3/8" CB-S3B-11FG CB-S3L-11FG 3/8-19 1.59 1.13 1.00
1/2" CB-S4B-11FN CB-S4L-11FN 1/2-14 1.91 1.31 1.13
1/2" CB-S4B-11FG CB-S4L-11FG 1/2-14 1.91 1.31 1.13
3/4" CB-S6B-11FN CB-S6L-11FN 3/4-14 2.06 1.69 1.44
3/4" CB-S6B-11FG CB-S6L-11FG 3/4-14 2.06 1.69 1.44
1" CB-S8B-11FN CB-S8L-11FN 1-11 2.31 2.00 1.75
1" CB-S8B-11FG CB-S8L-11FG 1-11 2.33 2.00 1.75

1-1/4'' Brass Non Valved Series Straight Through Coupler 1

Body Size PARTNO. Brass PARTNO. Steel PARTNO. Stainless Thread C D HEX
1/8" CB-P1B-11FN CB-P1S-11FN CB-P1L-11FN 1/8-27 1.00 0.58 0.50
1/8" CB-P1B-11FG CB-P1S-11FG CB-P1L-11FG 1/8-28 0.97 0.65 0.56
1/4" CB-P2B-11FN CB-P2S-11FN CB-P2L-11FN 1/4-18 1.50 0.79 0.69
1/4" CB-P2B-11FG CB-P2S-11FG CB-P2L-11FG 1/4-19 1.45 0.87 0.75
3/8" CB-P3B-11FN CB-P3S-11FN CB-P3L-11FN 3/8-18 1.63 0.94 0.81
3/8" CB-P3B-11FG CB-P3S-11FG CB-P3L-11FG 3/8-19 1.63 1.01 0.88
1/2" CB-P4B-11FN CB-P4S-11FN CB-P4L-11FN 1/2-14 1.94 1.15 1.00
1/2" CB-P4B-11FG CB-P4S-11FG CB-P4L-11FG 1/2-14 1.92 1.23 1.06
3/4" CB-P6B-11FN CB-P6S-11FN CB-P6L-11FN 3/4-14 2.06 1.37 1.19
3/4" CB-P6B-11FG CB-P6S-11FG CB-P6L-11FG 3/4-14 2.01 1.52 1.31
1" CB-P8B-11FN CB-P8S-11FN CB-P8L-11FN 1-11 2.21 1.80 1.56
1" CB-P8B-11FG CB-P8S-11FG CB-P8L-11FG 1-11 2.23 1.80 1.56



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
