7000psi IATF16949 NBR Hydraulic Line Quick Disconnect

7000psi IATF16949 NBR Hydraulic Line Quick Disconnect

  • High Light

    NBR Hydraulic Line Quick Disconnect

    ,

    7000psi Hydraulic Line Quick Disconnect

    ,

    IATF16949 Hydraulic Quick Disconnect

  • Material
    Steel
  • Technics
    Machinning
  • Thread
    BSPP/NPT
  • Locking Mechanism
    Threaded
  • Seal
    NBR
  • Interchange
    NITTO HSPcupla Series
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-7
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

7000psi IATF16949 NBR Hydraulic Line Quick Disconnect

Designed to connect and disconnect pressure gauges to hydraulic systems diagnostic quick coupling



CB Series diagnostic coupling is designed to connect and disconnect pressure gauges to hydraulic systems, eliminating the need for permanent gauges. The maximum operating pressure is 7,000 psi. Applications • Diagnostic pressure testing for hydraulic systems

Features

  1. Automatic sleeve for one hand push-to-connect operation
  2. Flush face valving provides minimal fluid loss and low air inclusion
  3. Self-sealing valve design allows connection and disconnection at 500 psi
  4. Broad range of end configurations for system accessibility
  5. Standard seal material: Buna-N
  6. Standard seal material: High resistance carbon steel with zinc trivalent plating

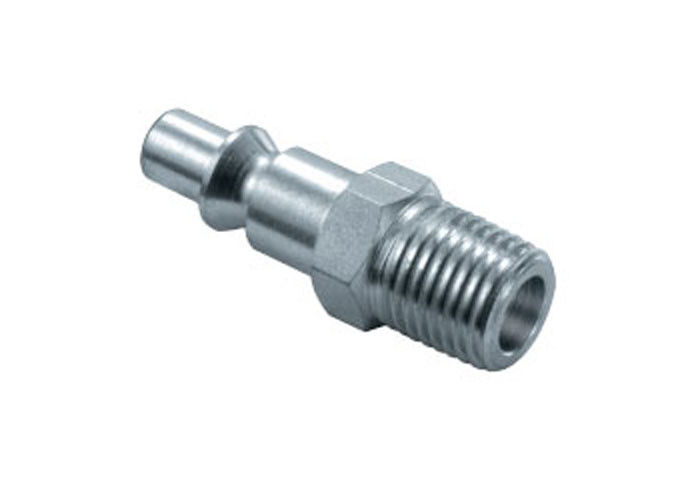

7000psi IATF16949 NBR Hydraulic Line Quick Disconnect 0

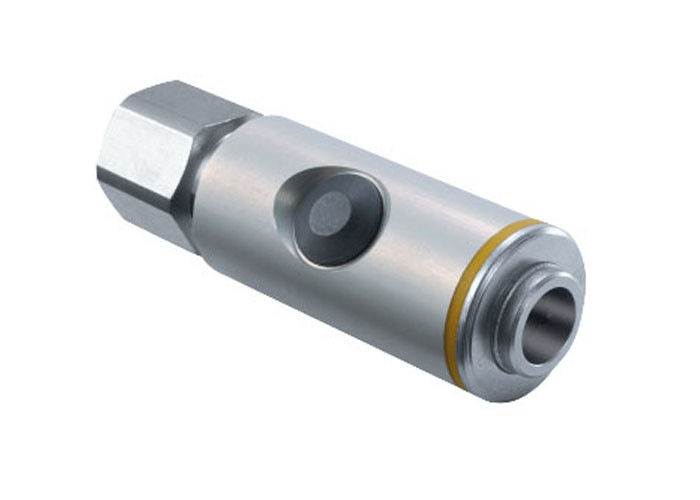

7000psi IATF16949 NBR Hydraulic Line Quick Disconnect 1

Body Size PARTNO. Thread A B HEX
1/4" CB-S2S-1FN-B 1/4-18 2.01 1.06 0.81
1/4" CB-P2S-1FN-B 1/4-18 1.45 - 0.75
