ISO9001 Mining Equipment 1'' Threaded Quick Connect

ISO9001 Mining Equipment 1'' Threaded Quick Connect

  • High Light

    ISO9001 Threaded Quick Connect

    ,

    5000psi Threaded Quick Connect

    ,

    SS hydraulic quick connectors

  • Body Material
    High Resistance Carbon Steel With Zinc Trivalent Plating
  • Type
    Fittings
  • Pressure
    5000psi
  • Application
    Mining Equipment
  • Name
    Hydraulic Coupling
  • Standard
    ISO9001
  • Size
    1''
  • Flow
    189lpm
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-5
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

ISO9001 Mining Equipment 1'' Threaded Quick Connect

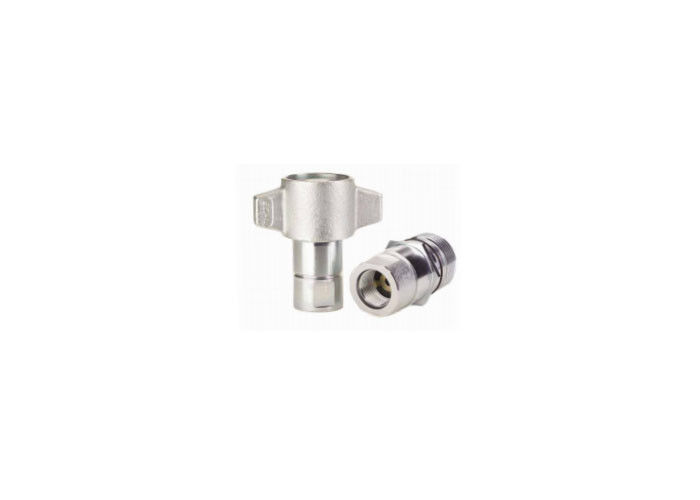

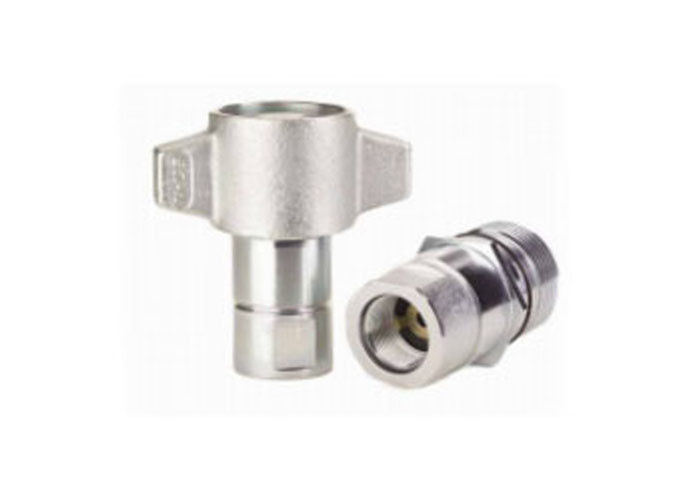

Thread to Connect 5,000 psi Dry Break and High Impulse technology steel quick coupling



CB-5-G Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi. The Series is available in either wing nut or hex nut configurations for ease of assembly and disassembly. (For higher pressure applications and additional size Applications • Hydraulic and fluid transfer • Mining equipment

Features

  1. Tubular valve and sleeve construction for low fluid loss and air inclusion
  2. Thread together design using wing or hex nut allows connection and disconnection against pressures up to 750 psi
  3. Teflon* back-up rings along with secondary metal-to-metal sealing contact provides high impulse capability up to 5,000 psi operating pressure
  4. Acme threads prevent galling and provide ease of connection
  5. Steel flange available for bulkhead mounting
  6. Standard seal material: Buna-N
  7. Standard body material: High resistance carbon steel with zinc trivalent plating

ISO9001 Mining Equipment 1'' Threaded Quick Connect 0ISO9001 Mining Equipment 1'' Threaded Quick Connect 1



Body Size PARTNO. Thread A B HEX
1" CB-S8S-5FN-G 1-11 1/2 4.98 4.50 -
1" CB-S8S-5FN-G 1-11 1/2 4.98 2.81 1.62
1" CB-P8S-5FN-G 1-11 1/2 4.40 2.11 1.75
