Applications in Food and Beverage 1/4’’ Nominal Stainless Steel Quick Coupling

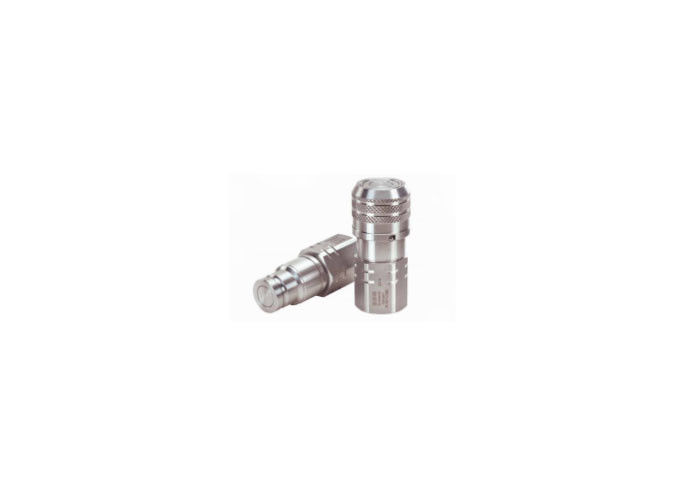

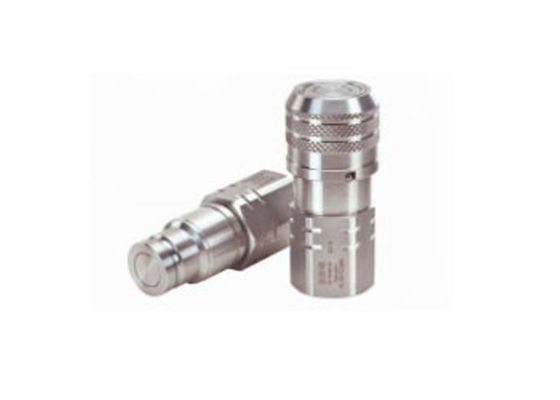

CB-9-C Series stainless steel coupling is a flat face dry break coupling used for hydraulic applications. The Series interchanges with all ISO 16028 profiles. Due to its stainless steel design, it is corrosion resistant and can handle aggressive environments.
Applications & Markets • Construction • Agriculture • Iron and Steel Industry • Railway • Oil and Gas • Marine • Material Handling • General Hydraulic applications
Features
| Body Size | PARTNO. | Thread | A | B | C | HEX |
| 1/4" | CB-S2M-6FN-C | 1/4-18 | 2.13 | 1.06 | 0.94 | 0.87 |
| 1/4" | CB-S2M-6FG-C | 1/4-19 | 2.13 | 1.06 | 0.94 | 0.87 |
| 3/8" | CB-S3M-6FN-C | 3/8-18 | 2.68 | 1.26 | 1.16 | 1.06 |
| 3/8" | CB-S3M-6FG-C | 3/8-18 | 2.68 | 1.26 | 1.16 | 1.06 |
| 3/8" | CB-S3M-6FG-C | 1/2-14 | 2.80 | 1.26 | 1.16 | 1.06 |
| 1/2" | CB-S4M-6FN-C | 1/2-14 | 3.27 | 1.50 | 1.56 | 1.42 |
| 1/2" | CB-S4M-6FG-C | 1/2-14 | 3.27 | 1.50 | 1.56 | 1.42 |
| 1/2" | CB-S4M-6FG-C | 3/4-14 | 3.39 | 1.50 | 1.56 | 1.42 |
| 5/8" | CB-S5M-6FN-C | 3/4-14 | 3.39 | 1.66 | 1.56 | 1.42 |
| 5/8" | CB-S5M-6FG-C | 3/4-14 | 3.39 | 1.66 | 1.56 | 1.42 |
| 3/4" | CB-S6M-6FN-C | 3/4-14 | 3.82 | 1.81 | 1.77 | 1.61 |
| 3/4" | CB-S6M-6FG-C | 3/4-14 | 3.82 | 1.81 | 1.77 | 1.61 |
| 3/4" | CB-S6S-6FG-C | 1-11 | 3.82 | 1.81 | 1.77 | 1.61 |
| 1" | CB-S8M-6FN-C | 1 1/4-11.5 | 4.07 | 2.36 | 2.36 | 2.17 |
| 1" | CB-S8M-6FG-C | 1-11 | 4.07 | 2.36 | 2.36 | 2.17 |
| Body Size | PARTNO. | Thread | D | E | F | HEX |
| 1/4" | CB-P2M-6FN-C | 1/4-18 | 2.01 | 0.46 | 0.94 | 0.87 |
| 1/4" | CB-P2M-6FG-C | 1/4-19 | 2.01 | 0.46 | 0.94 | 0.87 |
| 3/8" | CB-P3M-6FN-C | 3/8-18 | 2.56 | 0.78 | 1.16 | 1.06 |
| 3/8" | CB-P3M-6FG-C | 3/8-18 | 2.56 | 0.78 | 1.16 | 1.06 |
| 3/8" | CB-P3M-6FG-C | 1/2-14 | 2.68 | 0.78 | 1.16 | 1.06 |
| 1/2" | CB-P4M-6FN-C | 1/2-14 | 2.72 | 0.96 | 1.56 | 1.42 |
| 1/2" | CB-P4M-6FG-C | 1/2-14 | 2.72 | 0.96 | 1.56 | 1.42 |
| 1/2" | CB-P4M-6FG-C | 3/4-14 | 2.83 | 0.96 | 1.56 | 1.42 |
| 5/8" | CB-P5M-6FN-C | 3/4-14 | 2.83 | 1.06 | 1.56 | 1.42 |
| 5/8" | CB-P5M-6FG-C | 3/4-14 | 2.83 | 1.06 | 1.56 | 1.42 |
| 3/4" | CB-P6M-6FN-C | 3/4-14 | 3.70 | 1.18 | 1.77 | 1.61 |
| 3/4" | CB-P6M-6FG-C | 3/4-14 | 3.70 | 1.18 | 1.77 | 1.61 |
| 3/4" | CB-P6S-6FG-C | 1-11 | 3.70 | 1.18 | 1.77 | 1.61 |
| 1" | CB-P8M-6FN-C | 1 1/4-11.5 | 4.12 | 1.42 | 2.36 | 2.17 |
| 1" | CB-P8M-6FG-C | 1-11 | 4.12 | 1.42 | 2.36 | 2.17 |
