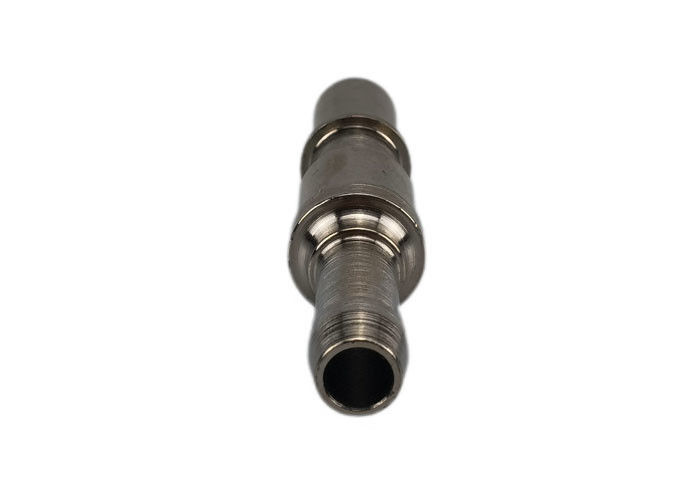

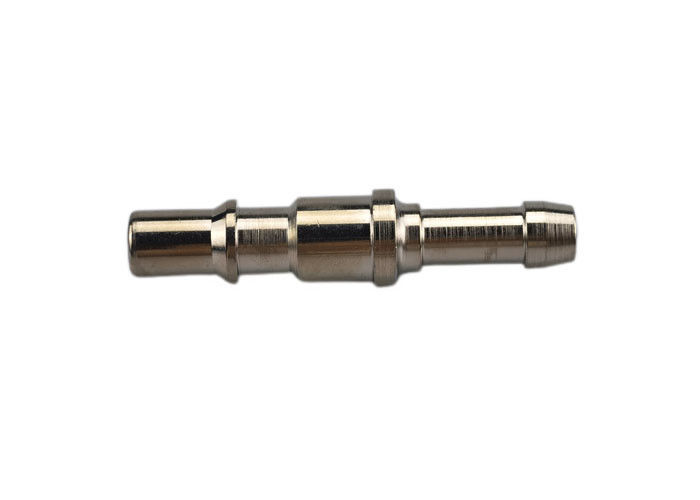

200psi Water Glycol Brass Straight Through Coupler

200psi Water Glycol Brass Straight Through Coupler

  • High Light

    200psi Straight Through Coupler

    ,

    0.5'' Straight Through Coupler

    ,

    IATF1 6949 hydraulic quick connect

  • Standard
    IATF16949
  • Material
    Brass
  • Usage
    For Hot Water
  • Pressure
    200psi
  • Type
    Fittings
  • Color
    Yellow
  • Connection
    Hose
  • Temperature
    -20~100°C
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-11
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

200psi Water Glycol Brass Straight Through Coupler

Used with water-glycol, hot water and hot oil straight-through non-valved for maximum flow Brass couplings



Features

  1. Non-valved straight-through models for maximum flow
  2. Valved sockets for automatic shut off when line is disconnected
  3. Sockets with straight, 90° and 45° hose stems and without hose stem
  4. Brass plugs with male pipe thread for recessed mounting to avoid damage to plugs when molds are being changed or stored
  5. Compatible with Flo-Temp Series.



CB-11-B Series couplings provide the flow needed to cool or heat injection molds and die casting dies. Sockets are available non-valved for maximum flow, and valved to prevent fluid loss when disconnected. Flo-Temp couplings can be used with water-glycol, hot water and hot oil. Body sizes are 1/4", 3/8" and 1/2".



200psi Water Glycol Brass Straight Through Coupler 0

Body Size PARTNO. Hose A B C
1/4" CB-S2B-11H-C 1/4" 1.20 0.67 2.25
3/8" CB-S3B-11H-C 3/8" 1.60 0.91 2.68
1/2" CB-S4B-11H-C 1/2" 2.25 1.18 3.42

200psi Water Glycol Brass Straight Through Coupler 1

Body Size PARTNO. Thread D E Hex
1/4" CB-P2B-11MN-C 1/8-27 0.94 0.49 0.44
3/8" CB-P3B-11MN-C 1/4-18 1.40 0.63 0.56
1/2" CB-P4B-11MN-C 1/2-14 1.75 0.98 0.88
