Joint Tube Tractors Agricultural Quick Couplings

Joint Tube Tractors Agricultural Quick Couplings

  • High Light

    EPDM Agricultural Quick Couplings

    ,

    Tractors Agricultural Quick Couplings

    ,

    IATF16949 steel couplings

  • Type
    Coupling
  • Material
    Zinc-plated Steel
  • Connection
    Female,Male
  • Technics
    Machining
  • Product Name
    Agricultural Coupling
  • Standard
    IATF16949
  • Thread
    Joint Tube
  • Application
    Tractors
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-8
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

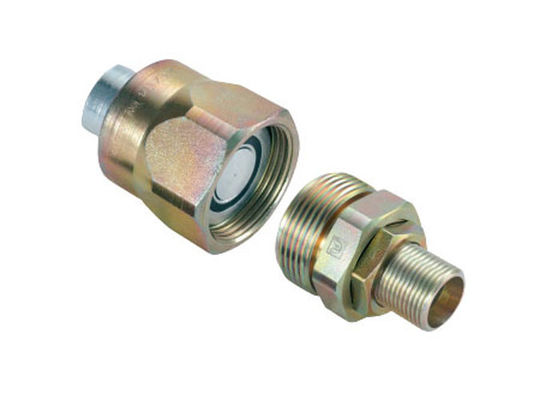

Joint Tube Tractors Agricultural Quick Couplings

Applications in Tractors, agricultural and forestry machinery and equipment Agricultural Quick couplings





CB-8 Series couplings



Applications

Tractors, agricultural and forestry machinery and equipment



Standard Materials

  • Zinc-plated steel
  • Seals: NBR, Viton, EPDM

Features

  1. Double shut-off couplings
  2. Connection by screwing up the locking sleeve
  3. Minimum entry of air and loss of fluid
  4. Dust caps and plugs
  5. Compatible with HANSEN K8000 Series.



Joint Tube Tractors Agricultural Quick Couplings 0

DN (mm) PARTNO. Thread A B Hex
8 CB-S1S-8M M18*150 55 41 23

Joint Tube Tractors Agricultural Quick Couplings 1

DN (mm) PARTNO. Thread C D E Hex
8 CB-P1S-8M-B M18*150 50,5 23 M36*200 35
8 CB-P2S-8M-B M20*150 50,5 23 M36*200 35
8 CB-P3S-8M-B G1/2 56 15 M36*200 35
