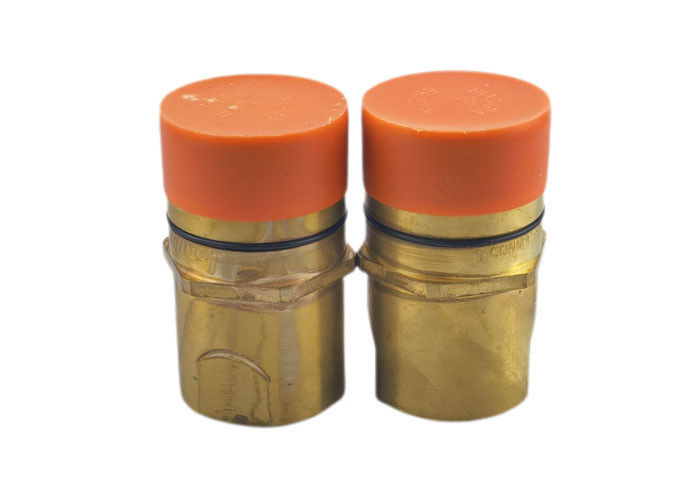

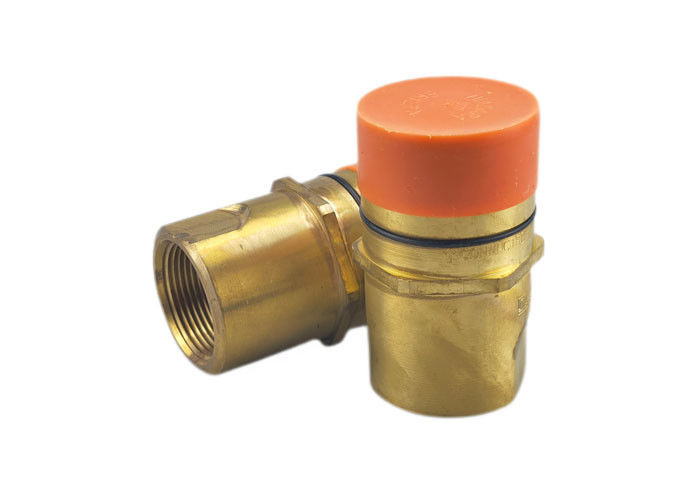

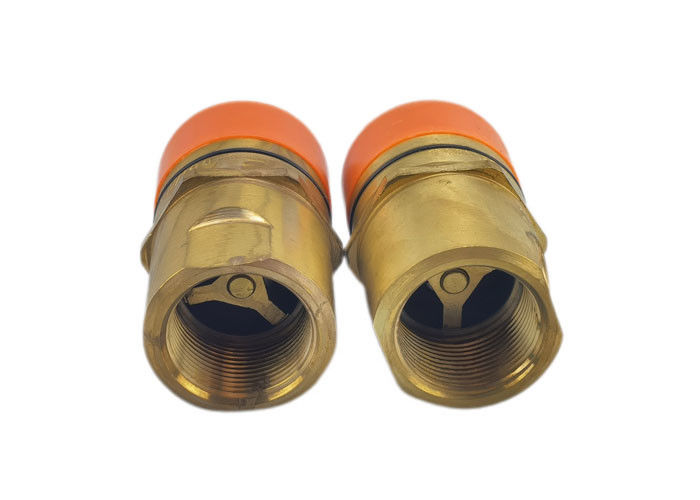

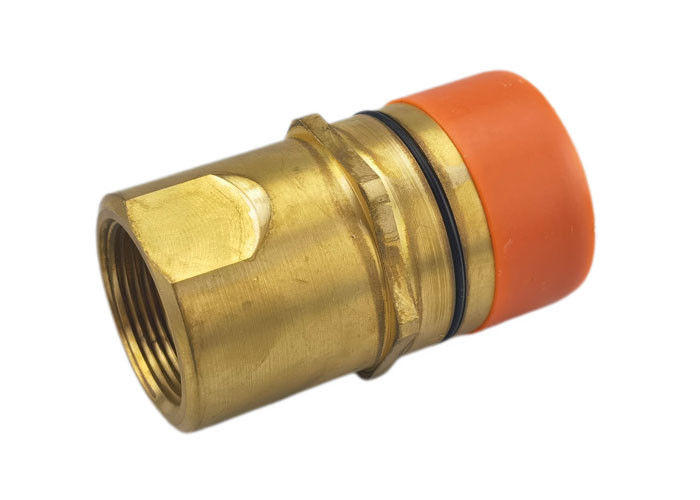

1-1/4" Thread Locked Brass Hydraulic Quick Connect Fittings

1-1/4" Thread Locked Brass Hydraulic Quick Connect Fittings

  • High Light

    3000 psi Hydraulic Quick Connect Fittings

    ,

    Brass Hydraulic Quick Connect Fittings

    ,

    NBR hydraulic quick connectors

  • Material
    Brass
  • Rated Pressure
    3000
  • Locking Mechanism
    Threaded
  • Technics
    Machinning
  • Size
    3/4, 1, 1-1/4
  • Temperature
    -20℃to+120℃
  • Standard Seal Material
    NBR
  • Compatible With
    PARKER 6100 Series
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-5
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

1-1/4" Thread Locked Brass Hydraulic Quick Connect Fittings

1-1/4" thread locked type interchange with Parker 6100 quick coupling Threaded Quick Connect



CB-5 Series is a thread-to-connect. it can be widely used in various application, this application be connected under pressure and less spillage or non-spillage.

CB-5 series can be suitable used in connecting equipment of the hydraulic lines like power tongs, swivels and mobile drillings, it also windely used dump tracks, and dump trailer to connect with to wet line hydraulic system. And it also suitable used in submersible pumps, engine test stands, and the equipment require connect under high pressure or high liquid transfer.



Features

  1. Heavy-dust wing nut is ruggedly built specifically to with stand the hammer blows commonly used to tighten and loosen this coupler.
  2. Assembled valve seal can permits full pressure connect and disconnect,without seal washout.
  3. The flush face valve keeps air inclusion and spillage to a minimum.
  4. Corrosion resistant brass coupling, makes it compatible with a widely range and provides windely functionality.
  5. Compatible with PARKER 6100 Series, FASTER FB Series, AEROQUIP 5100 Series and HANSEN 96 Series.

1-1/4" Thread Locked Brass Hydraulic Quick Connect Fittings 0

Body Size PARTNO. Thread A B HEX
3/4" CB-S6B-5FN-A 3/4-14 79 103 29,2
1" CB-S8B-5FN-A 1-11 1/2 96 113 36,6
1"1/4 CB-S10B-5FN-A 1-1/4 101 132 45,2

1-1/4" Thread Locked Brass Hydraulic Quick Connect Fittings 1

Body Size PARTNO. Thread C D HEX
3/4" CB-P6B-5FN-A 3/4-14 79 38 33,3
1" CB-P8B-5FN-A 1-11 1/2 90 47,5 39,6
1"1/4 CB-P10B-5FN-A 1-1/4 94 53,8 47,8
