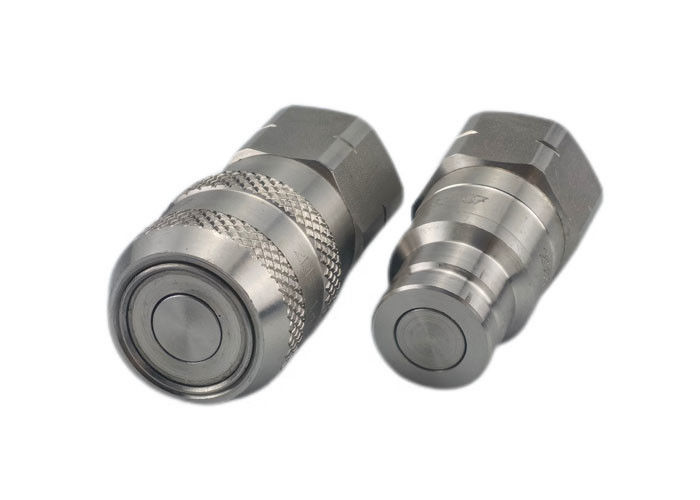

BSPP 316 Stainless Steel Flat Face Hydraulic Coupler

BSPP 316 Stainless Steel Flat Face Hydraulic Coupler

  • High Light

    BSPP Flat Face Hydraulic Coupler

    ,

    ss316 Flat Face Hydraulic Coupler

    ,

    ISO16028 hydraulic quick coupler

  • Standard
    ISO16028
  • Material
    316 Stainless Steel
  • Thread
    NPT/BSPP
  • Application
    Chemicals/ Petrochemicals
  • Size
    1/4"-1"
  • Name
    Flat Face Coupling
  • Qc
    100%
  • Compatible With
    HANSEN DB Series
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-6
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

BSPP 316 Stainless Steel Flat Face Hydraulic Coupler

316 stainless steel Flat Face Coupling



CB-6-B Series stainless steel coupling is a flat face/dry break coupling used for fluid transfer applications. The CB-6-B Series offers the ability to connect with less force, higher sealing performance and are available in multiple configurable end connections.

Applications

• Process/Fluid Transfer • Cooling • Corrosive Environments • Chemicals/ Petrochemicals • Pharmaceuticals • Food Processing • Electrical

Standard Materials

  • zinc-plated steel
  • Seals: NBR, Viton, EPDM

Features

  1. Designed and manufactured in accordance with Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU
  2. Safety sleeve lock prevents accidental disconnections
  3. Push to connect with double shut-off valving
  4. Capable of working under high temperature applications
  5. Shock-resistant color coding ring option available in 1/2” size
  6. Serviceable design allows for easy cleaning and seal replacement
  7. Designed with higher flow capacity and resistance to aggressive fluids and corrosion
  8. Standard body material: 316/316L Stainless steel
  9. Standard seal material: FKM, EPDM
  10. Compatible with Hansen DB Series.

BSPP 316 Stainless Steel Flat Face Hydraulic Coupler 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2M-6FN-B 1/4-18 1.98 1.02 0.88
1/4" CB-S2M-6FG-B 1/4-19 1.98 1.02 0.88
1/2" CB-S4M-6FN-B 1/2-14 2.52 1.59 1.38
1/2" CB-S4M-6FG-B 1/2-14 2.52 1.59 1.38
3/4" CB-S6M-6FN-B 3/4-14 3.71 2.00 1.50
3/4" CB-S6M-6FG-B 3/4-14 3.71 2.00 1.50
1" CB-S8M-6FN-B 1-11BSPP 316 Stainless Steel Flat Face Hydraulic Coupler 1 3.52 2.25 1.81
1" CB-S8M-6FG-B 1-11 3.52 2.25 1.81

BSPP 316 Stainless Steel Flat Face Hydraulic Coupler 2

Body Size PARTNO. Thread A B HEX
1/4" CB-P2M-6FN-B 1/4-18 1.98 1.02 0.88
1/4" CB-P2M-6FG-B 1/4-19 1.98 1.02 0.88
1/2" CB-S4M-6FN-B 1/2-14 2.52 1.59 1.38
1/2" CB-S4M-6FG-B 1/2-14 2.52 1.59 1.38
3/4" CB-S6M-6FN-B 3/4-14 3.71 2.00 1.50
3/4" CB-S6M-6FG-B 3/4-14 3.71 2.00 1.50
1" CB-S8M-6FN-B 1-11BSPP 316 Stainless Steel Flat Face Hydraulic Coupler 1 3.52 2.25 1.81
1" CB-S8M-6FG-B 1-11 3.52 2.25 1.81
