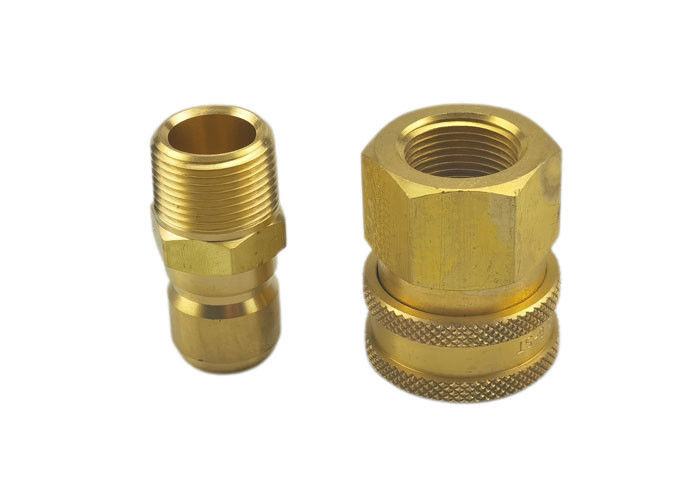

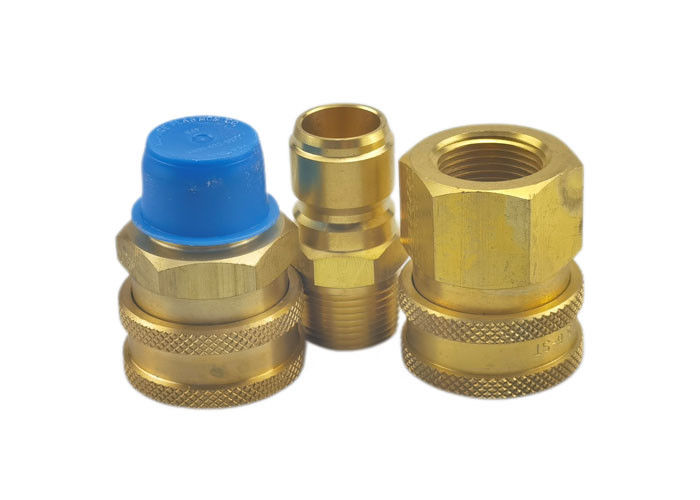

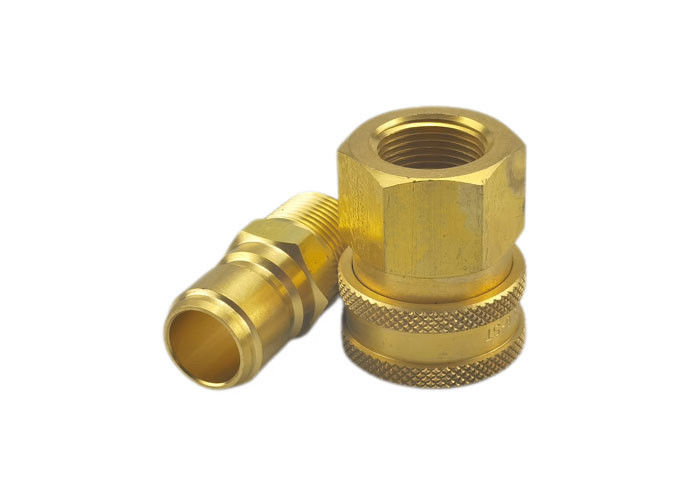

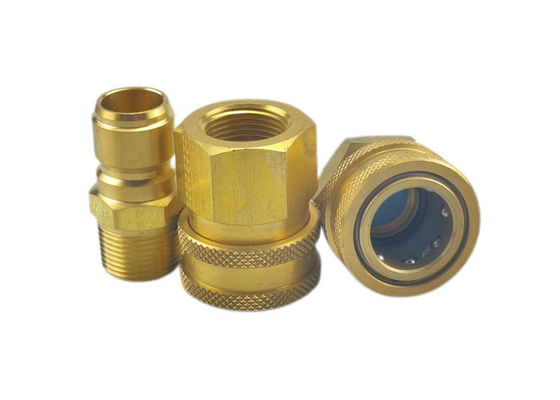

NBR Male End Connections Straight Through Coupler

NBR Male End Connections Straight Through Coupler

  • High Light

    CB-11 Straight Through Coupler

    ,

    5200psi Straight Through Coupler

    ,

    0.25'' brass quick connect air fittings

  • Material
    Brass
  • Connection
    Male
  • Application
    Maximum Flow
  • Size
    1/8''-1''
  • Rated Flow
    3 To 100
  • Compatible With
    PARKER ST Series, HANSEN ST Series, FOSTER FST Series
  • Product Name
    Straight-through Coupler
  • Temperature
    -20~120°C
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-11
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

NBR Male End Connections Straight Through Coupler

Male End Connections maximum flow straight-through coupler



Production Ability


200K/Month, 2000 square meter workshop with experienced workers, technicians, quality control and management team, which offers us the ability to customize the special cable assemblies and spare parts for any customer under stabilized mass production.



CB-11 Series straight-through couplings are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.



Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual operation
  3. Smooth bore permits free flow of liquid or gas
  4. Male and female NPTF, BSPP and hose stem connections
  5. Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.
BODY SIZE Rated Pressure (PSI) Rated Pressure (BAR) Standard seal material
1/8" 2800 193 NBR
1/4" 5200 359
3/8" 2800 193
1/2" 2200 152
3/4" 1700 117
1" 1300 90

NBR Male End Connections Straight Through Coupler 0

Body Size PARTNO. Brass PARTNO. Stainless Thread A B HEX
1/8" CB-S1B-11MN CB-S1L-11MN 1/8-27 1.06 0.69 0.50
1/8" CB-S1B-11MG CB-S1L-11MG 1/8-28 1.00 0.69 0.56
1/4" CB-S2B-11MN CB-S2L-11MN 1/4-18 1.72 0.94 0.81
1/4" CB-S2B-11MG CB-S2L-11MG 1/4-19 1.56 0.94 0.81
3/8" CB-S3B-11MN CB-S3L-11MN 3/8-18 1.75 1.13 1.00
3/8" CB-S3B-11MG CB-S3L-11MG 3/8-19 1.62 1.13 1.00
1/2" CB-S4B-11MN CB-S4L-11MN 1/2-14 2.03 1.31 1.13
1/2" CB-S4B-11MG CB-S4L-11MG 1/2-14 1.80 1.31 1.13
3/4" CB-S6B-11MN CB-S6L-11MN 3/4-14 2.22 1.69 1.44
3/4" CB-S6B-11MG CB-S6L-11MG 3/4-14 2.03 1.69 1.44
1" CB-S8B-11MN CB-S8L-11MN 1-11NBR Male End Connections Straight Through Coupler 1 2.53 2.00 1.75
1" CB-S8B-11MG CB-S8L-11MG 1-11 2.37 2.00 1.75

NBR Male End Connections Straight Through Coupler 2

Body Size PARTNO. Brass PARTNO. Steel PARTNO. Stainless Thread C D HEX
1/8" CB-P1B-11MN CB-P1S-11MN CB-P1L-11MN 1/8-27 1.09 0.51 0.44
1/8" CB-P1B-11MG CB-P1S-11MG CB-P1L-11MG 1/8-28 0.89 0.65 0.56
1/4" CB-P2B-11MN CB-P2S-11MN CB-P2L-11MN 1/4-18 1.61 0.65 0.56
1/4" CB-P2B-11MG CB-P2S-11MG CB-P2L-11MG 1/4-19 1.35 0.87 0.75
3/8" CB-P3B-11MN CB-P3S-11MN CB-P3L-11MN 3/8-18 1.69 0.79 0.69
3/8" CB-P3B-11MG CB-P3S-11MG CB-P3L-11MG 3/8-19 1.69 1.01 0.88
1/2" CB-P4B-11MN CB-P4S-11MN CB-P4L-11MN 1/2-14 2.03 1.01 0.88
1/2" CB-P4B-11MG CB-P4S-11MG CB-P4L-11MG 1/2-14 1.77 1.15 1.00
3/4" CB-P6B-11MN CB-P6S-11MN CB-P6L-11MN 3/4-14 2.25 1.23 1.06
3/4" CB-P6B-11MG CB-P6S-11MG CB-P6L-11MG 3/4-14 2.00 1.44 1.25
1" CB-P8B-11MN CB-P8S-11MN CB-P8L-11MN 1-11NBR Male End Connections Straight Through Coupler 1 2.53 1.59 1.38
1" CB-P8B-11MG CB-P8S-11MG CB-P8L-11MG 1-11 2.30 2.02 1.75
