AISI 316 Stainless Steel Hydraulic Hose Couplings 150MPa 6.0L/Min

AISI 316 Stainless Steel Hydraulic Hose Couplings 150MPa 6.0L/Min

  • High Light

    AISI 316 Hydraulic Hose Couplings

    ,

    Hydraulic Hose Couplings 150MPa

    ,

    Hydraulic Hose Couplings 6.0L/Min

  • Name
    Hose Coupling
  • Material Seal
    Nitrile (NBR)
  • Flow Capacity
    6.0 L/min
  • Max. Working Pressure
    150 MPa
  • Min. Burst Pressure
    300 MPa
  • Flow Diameter
    2.5mm
  • Temperature
    -30°C — +100°C
  • Material
    AISI 316, Hardened Stainless Steel
  • Place of Origin
    Sweden
  • Brand Name
    CEJN
  • Certification
    IATF16949
  • Model Number
    10150
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

AISI 316 Stainless Steel Hydraulic Hose Couplings 150MPa 6.0L/Min

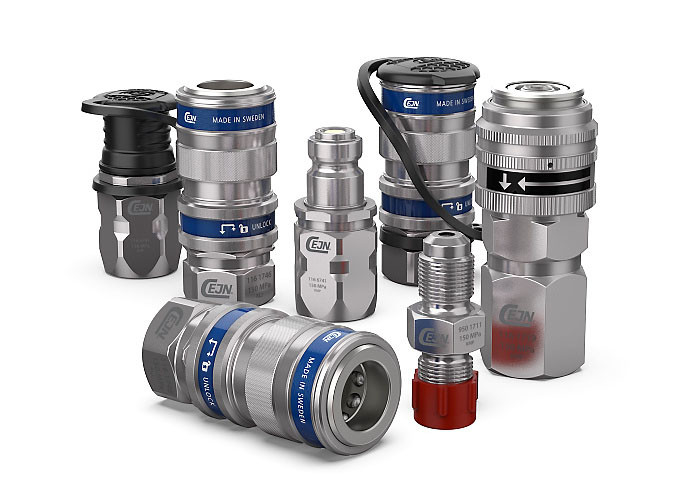

Use on traditional tools Series 116 Stainless Steel, 150 MPa high-pressure hose couplings



A CEJN original design for use on traditional tools such as tensioners, wrenches, pullers, power packs and more in harsh and corrosive environments. It features extremely small outside dimensions, and non-drip functionality is a given feature. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. All exposed components are stainless steel, or even acid proof steel, to provide the longest possible service life and thus save both the environment and money. To further extending service life of the entire hydraulic system both coupling and nipple are provided with plastic dust caps. Aluminum dust caps can be ordered separately.







CEJN Metal Seal (CMS)

CEJN Metal Seal is the optimum and recommended sealing method developed to be a safe and reliable seal even at extremely high pressures. Due to the smaller diameter and position of CMS, stress is kept to a minimum. In the unlikely event of leakage, the oil pressure will be dispersed within the coupling without any danger to the operator.

AISI 316 Stainless Steel Hydraulic Hose Couplings 150MPa 6.0L/Min 0







AISI 316 Stainless Steel Hydraulic Hose Couplings 150MPa 6.0L/Min 1

Oil Flow

x: Flow, l/min (GPM UK)
y: Pressure drop, MPa





Nominal flow diameter 2.5 mm (0.1")
Flow capacity 6.0 l/min (1.3 GPM UK)
Max. working pressure 150 MPa
Min. burst pressure 300 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling AISI 316, Hardened stainless steel
Material nipple AISI 316, Hardened stainless steel
Material seal Nitrile (NBR) other sealing materials on request
