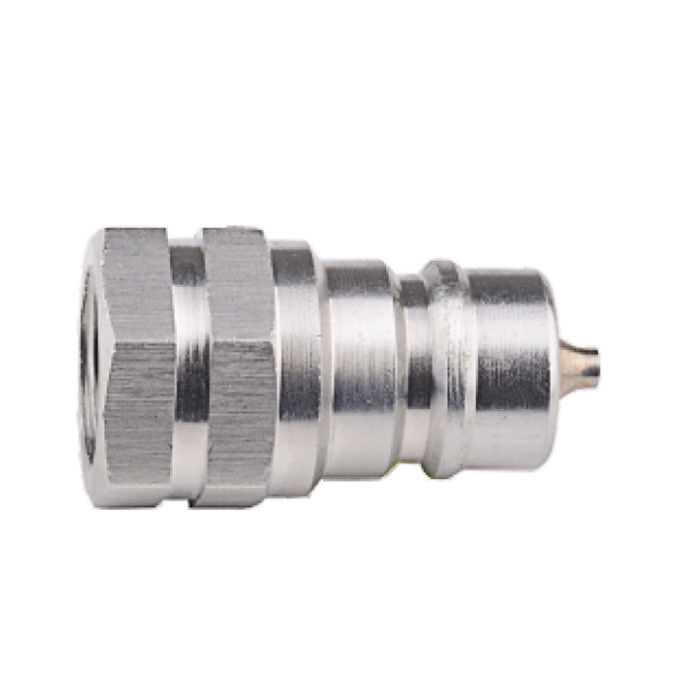

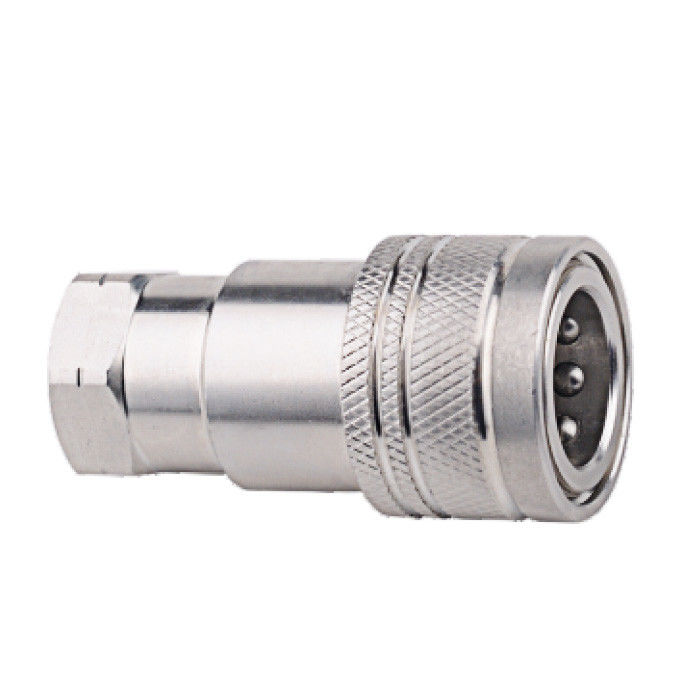

CB-SPL-10F ISO 7241-A Stainless Steel Hydraulic Quick Coupling
The CB-SPL-10F hydraulic quick coupling is designed in full compliance with the ISO 7241-1 A international standard, offering a secure, high-performance solution for fluid connection in modern hydraulic systems. Engineered with a robust zinc-plated steel body and equipped with a ball-locking mechanism and double shut-off valves, this series ensures safe, leak-free disconnection under demanding conditions.
Proven across agricultural machinery, public works equipment, and industrial hydraulic circuits, CB-SPL-10F stands as a reliable replacement for globally recognized couplers like Hansen H-15000, Parker 6600, and Faster ANV.
Key Features & Benefits
• Double Shut-Off Valve Design
Prevents fluid loss during connection and disconnection, maintaining system cleanliness and reducing safety risks.
• High Pressure Resistance
Rated up to 315 bar / 4565 psi depending on size, making it suitable for high-load mobile or industrial hydraulic applications.
• Secure Ball-Locking Mechanism
The coupling uses a ball-lock system with a knurled sleeve to ensure firm engagement and resistance to vibration or accidental pull.
• Pull-to-Connect Coupling
Semi-automatic operation streamlines installation and field maintenance.
• Durable Materials
• Body / Sleeve / Valve: Zinc-plated steel (bichromated)
• Springs: Steel or stainless steel
• Balls: Stainless steel
• Seals: NBR standard, FKM (Viton) optional for high-temperature fluid circuits
• Interchangeable with Major Brands
Fully compatible with Parker 6600, Faster ANV, Aeroquip 5600, and Hansen H-15000 series.
• Push-Pull Option Available
For 1/2” size, a push-pull version is available with a bulkhead-mounted sleeve for auto-connect/disconnect functionality.
Technical Specifications
| ISO Size |
Nominal Diameter (mm) |
Max Working Pressure (bar/psi) |
Flow Rate @ ∆p 1 bar (l/min) |
Spillage (ml) |
Thread Options |
Temperature Range (NBR / FKM) |
| 1/4” |
6.3 |
315 / 4565 |
6.3 |
0.35 |
G / NPT |
-20°C to +100°C / +200°C |
| 3/8” |
10 |
315 / 4565 |
10 |
1.5 |
G / NPT |
-20°C to +100°C / +200°C |
| 1/2” |
12.5 |
250 / 3625 |
12.5 |
2.6 |
G / NPT |
-20°C to +100°C / +200°C |
| 3/4” |
20 |
250 / 3625 |
20 |
8.5 |
G / NPT |
-20°C to +100°C / +200°C |
| 1” |
25 |
200 / 2900 |
25 |
13 |
G / NPT |
-20°C to +100°C / +200°C |
Dimensional Overview
Female (Socket)
| Body Size |
PARTNO. |
LS |
Φ D |
HS |
A |
T |
| 1/4" |
CB-S2L-10F |
50 |
26 |
19*6 |
13 |
G1/4 NPT1/4 |
| 3/8" |
CB-S3L-10F |
60 |
31.5 |
22*6 |
14 |
G3/8 NPT3/8 |
| 1/2" |
CB-S4L-10F |
68 |
39 |
27*6 |
16 |
G1/2 NPT1/2 |
| 3/4" |
CB-S6L-10F |
80 |
48 |
34*6 |
18 |
G3/4 NPT3/4 |
| 1" |
CB-S8L-10F |
99.5 |
53 |
41*6 |
21 |
G1 NPT1 |
| 1-1/4" |
CB-S10L-10F |
112 |
69 |
50*6 |
25 |
G1-1/4 NPT1-1/4 |
| 1-1/2" |
CB-S12L-10F |
127.5 |
84.5 |
60*6 |
25.5 |
G1-1/2 NPT1-1/2 |
| 2" |
CB-S16L-10F |
158 |
99 |
75*6 |
26 |
G2 NPT2 |
Male (Plug)
| Body Size |
PARTNO. |
LP |
C |
HP |
A |
T |
| 1/4" |
CB-P2L-10F |
35.5 |
15 |
19*6 |
13 |
G1/4 NPT1/4 |
| 3/8" |
CB-P3L-10F |
42 |
26.5 |
22*6 |
14 |
G3/8 NPT3/8 |
| 1/2" |
CB-P4L-10F |
46 |
26.5 |
27*6 |
16 |
G1/2 NPT1/2 |
| 3/4" |
CB-P6L-10F |
54 |
28 |
34*6 |
18 |
G3/4 NPT3/4 |
| 1" |
CB-P8L-10F |
65.5 |
35 |
41*6 |
21 |
G1 NPT1 |
| 1-1/4" |
CB-P10L-10F |
70 |
45 |
50*6 |
25 |
G1-1/4 NPT1-1/4 |
| 1-1/2" |
CB-P12L-10F |
78 |
51 |
60*6 |
25.5 |
G1-1/2 NPT1-1/2 |
| 2" |
CB-P16L-10F |
98 |
61 |
75*6 |
26 |
G2 NPT2 |
Pressure Drop vs. Flow Rate Chart
CB-SPL-10F pressure drop curves are based on ISO 7241-A standard conditions using 30 cSt hydraulic oil at 40°C.
For full-size flow rate curves, dimensional CAD drawings, and fluid loss comparisons, visit the CB-SPL-10F technical detail page.
Application Fields
The CB-SPL-10F quick coupler is ideally suited for:
• Hydraulic circuits and power units in both industrial and mobile systems
• Agricultural machinery such as tractors, combines, sprayers
• Public works equipment including excavators, loaders, and breakers
• General hydraulic fluid transfer under pressure-critical conditions
Its vibration-resistant locking, wide pressure tolerance, and brand compatibility make it a trusted choice across sectors.
Compatibility Table
| Carterberg Model |
Parker |
Faster |
Aeroquip |
Hansen |
| CB-SPL-10F |
6600 |
ANV |
FD56 / 5600 |
H-15000 |
For a detailed breakdown of valve geometry and cross-brand compatibility, explore the CB-SPL-10F interchange and replacement guide
