Name: cb-sp-10f-iso-7241-a-hydraulic-quick-coupling
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-SP-10F
Availability: InStock

Home > products > Hydraulic Quick Couplings >

cb-sp-10f-iso-7241-a-hydraulic-quick-coupling

Place of Origin:

China

Brand Name:

carterberg

Certification:

IATF16949

Model Number:

CB-SP-10F

Request A Quote

Product Details

Type:

ISO 7241A

Material:

Carbon Steel, Stainless Steel

Connection:

Plug/Socket

SIZE:

1/4''-1''

Rated Pressure:

See The Page Parameter Table For Details.

Rated Flow:

190 L/min

Valves:

Ball / Poppet

Interchange:

Hansen 15000 Series,Parker 6600 Series,Faster ANV Series,Aeroquip 5600 Series

Payment & Shipping Terms

Minimum Order Quantity

Negotiation

Price

Negotiation

Packaging Details

carton

Delivery Time

7-20 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

5000~20000 pc/month

hydraulic-quick-couplings iso-series iso-7241-a

Get Best Price

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa

Get Best Price

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa NPT Standard

Get Best Price

Flat Face Hydraulic High Pressure Quick Coupler With Locking Sleeve 1/4"

Get Best Price

86-021-37214610

Contact Now

Product Description

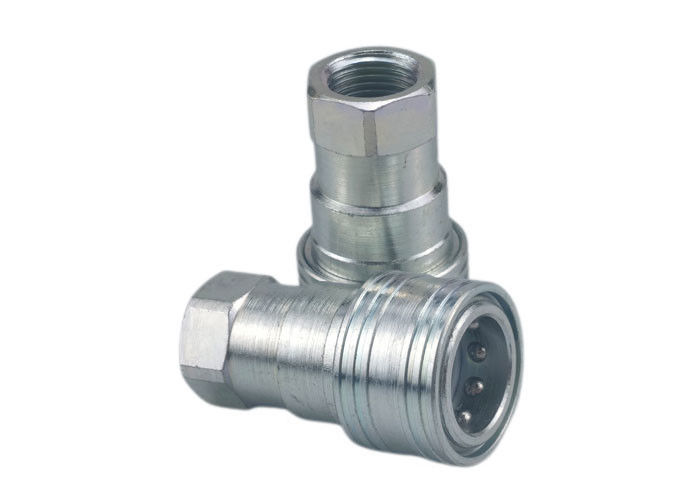

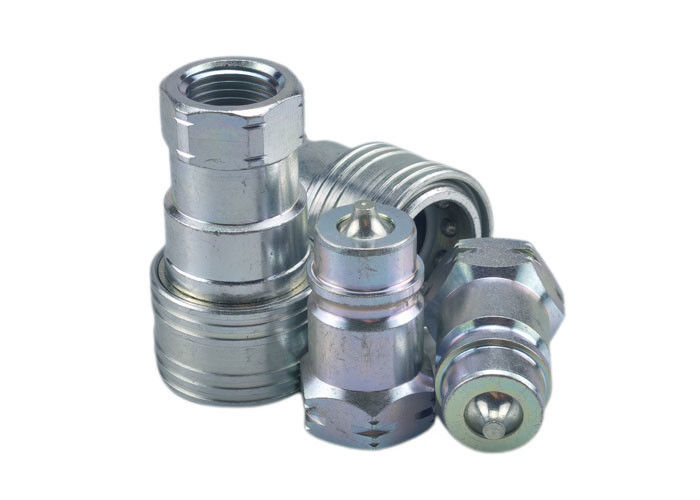

Carterberg CB-SP-10F ISO 7241-A Hydraulic Quick Coupling Set (Plug + Socket)

Carterberg CB-SP-10F is a robust hydraulic quick coupling set designed to meet ISO 7241-A standards. This model includes a complete set of both plug and socket couplers, ensuring fast, secure, and leak-free connection for fluid transfer systems. Manufactured with precision and durability in mind, it’s ideal for demanding industrial and mobile hydraulic applications.

The CB-SP-10F is engineered to offer full compatibility with other ISO 7241-A standard couplings on the market, allowing for seamless interchange with brands such as Parker, Faster, and Hansen. Its sleeve-locking mechanism ensures safe operation, while the hardened components provide long-term reliability under pressure.

Key Features

• Interchangeable with ISO 7241-A standard brands

• Includes both plug and socket quick coupling halves

• Durable design with high resistance to wear and corrosion

• Optional materials: carbon steel, stainless steel

• Compatible with a wide range of hydraulic fluids

• Compact structure for easy installation and handling

Applications

• Agricultural equipment

• Construction machinery

• Industrial hydraulic systems

• Mobile equipment

• Forestry and mining applications

Technical Specifications

BODY SIZE	Rated Pressure (PSI)	Rated Pressure (BAR)	Standard seal material
1/4"	4568	315	NBR
3/8"	4568	315
1/2"	3625	250
3/4"	3625	250
1"	2900	200

Body Size	PARTNO.	Thread	A	B	Across Flats
1/4"	CB-S2S-10FN	1/4-18	1.89	0.98	0.75
1/4"	CB-S2S-10FG	1/4-19	1.89	0.98	0.75
3/8"	CB-S3S-10FN	3/8-18	2.21	1.18	0.91
3/8"	CB-S3S-10FG	3/8-19	2.21	1.18	0.91
1/2"	CB-S4S-10FN	1/2-14	2.64	1.49	1.06
1/2"	CB-S4S-10FG	1/2-14	2.64	1.49	1.06
3/4"	CB-S6S-10FN	3/4-14	3.25	1.88	1.38
3/4"	CB-S6S-10FG	3/4-14	3.25	1.88	1.38
1"	CB-S8S-10FN	1-11	3.86	2.08	1.62
1"	CB-S8S-10FG	1-11	3.86	2.08	1.62

cb-sp-10f-iso-7241-a-hydraulic-quick-coupling 1

Body Size	PARTNO.	Thread	C	D	E	HEX
1/4"	CB-P2S-10FN	1/4-18	1.41	0.86	0.80	0.75
1/4"	CB-P2S-10FG	1/4-19	1.41	0.86	0.80	0.75
3/8"	CB-P3S-10FN	3/8-18	1.63	1.04	0.79	0.91
3/8"	CB-P3S-10FG	3/8-19	1.63	1.04	0.79	0.91
1/2"	CB-P4S-10FN	1/2-14	1.92	1.22	0.92	1.06
1/2"	CB-P4S-10FG	1/2-14	1.92	1.22	0.92	1.06
3/4"	CB-P6S-10FN	3/4-14	2.42	1.58	1.09	1.38
3/4"	CB-P6S-10FG	3/4-14	2.42	1.58	1.09	1.38
1"	CB-P8S-10FN	1-11	2.83	1.85	1.19	1.62
1"	CB-P8S-10FG	1-11	2.83	1.85	1.19	1.62
