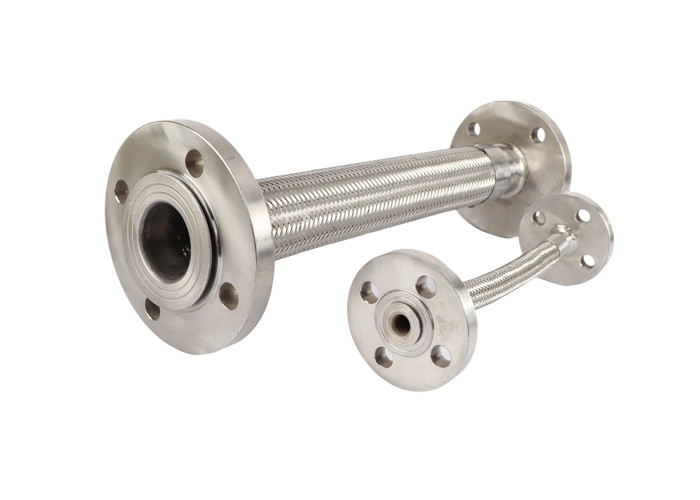

Stainless steel flanged metal hose high temperature and high pressure flanged metal bellows
The products has strong shock absorption ability ,good noise reduction effect,high working pressure ,great resistance to violence ,and sufficient elasticity ;corrosion resistance,no aging ,and long service life.

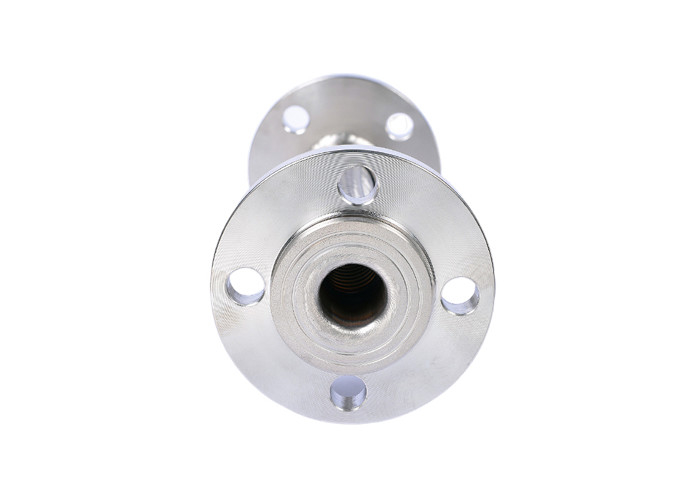

One end of the product daopts a 360-degree rotatable flange connection ,so the installation is more convenient and flexible ,and can be widely applied to various types of pump valve inlet and outlet ports and flexible connnection of pipes.
Product Description
| Product name | DN150 style oil Pipe metal flange connection SS 304 braided bellows flexible stainless steel hose |
| Size | DN8-DN400 |
| Material of braid mesh | Stainless steel 304,316L,etc. |
| Working Pressure | 0.6 Mpa ~2.5 Mpa |
| Role | vibration reduction and noise reduction, absorption of pipeline settlement |
| Applicable media | Air, water ,hot Water, Oil, steam etc. |
| Technical parameter | |||||||
| Nominal diameter DN |
Inner diameter (mm) |
Outer diameter | Minimum bending radius | Working pressure | |||
| Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
Applications: industry, chemical industry, natural gas, food hygiene, biopharmaceuticals, pressure vessels, sewage treatment, vacuum treatment, oil and waterway, etc.
