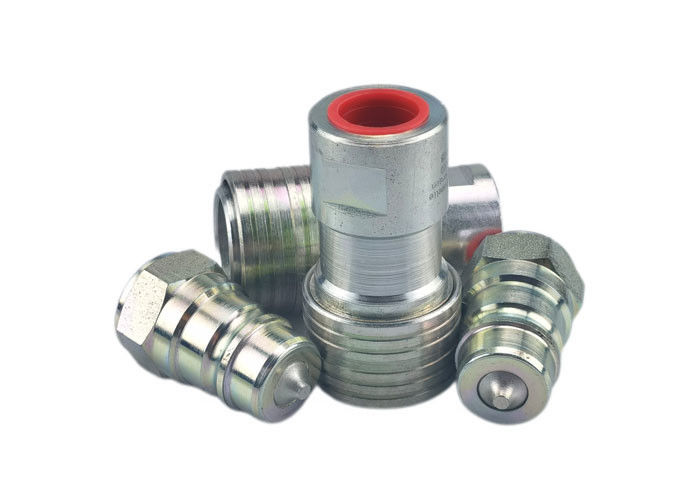

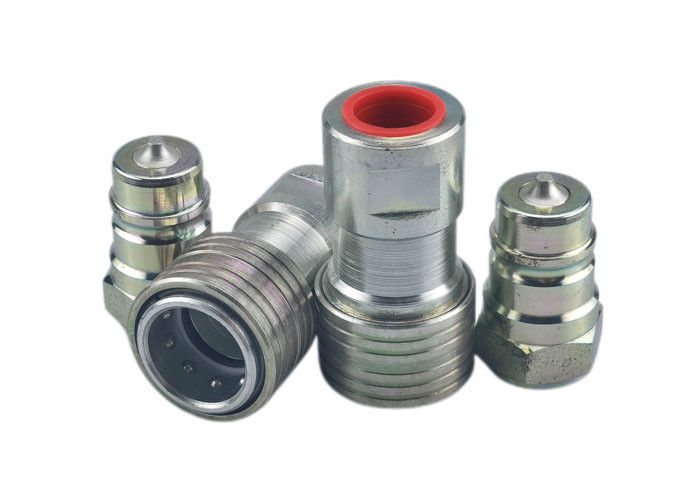

NPT Shut Off Coupling

Steel quick disconnect coupling hydraulic applications double shut-off coupling​



CB-7 Series steel quick disconnect coupling is a pull to connect double shut-off coupling. it remains as the series users prefer when it comes to severe hydraulic applications such as high pressure, pressure impulses, heavy mechanical loads and frequent connection and disconnection cycles. The unique sleeve lock option offers a reliable solution and benefit to the end user when safety is a concern.

Applications

• Automobile • Agriculture • Construction • Oil and Gas • Railway • Aeronautics • Food Processing • Iron and Steel Industry • Electronics • Laboratories • General Hydraulic Applications



Standard Materials

  • Zinc trivalent steel
  • Seals: NBR, Viton, EPDM

Features

  1. Proprietary profile
  2. Pull-to-connect with double shut-off valving
  3. Ball-locking
  4. Optional safety sleeve lock prevents accidental disconnections
  5. Optional dust caps and plugs (made of anodized aluminum)
  6. Pressure performance
  7. Compatible with HANSEN5000 Series.

NPT Shut Off Coupling 0

Body Size PARTNO. Thread A B HEX
1/8" CB-S1S-7FN 1/8-27 1.65 0.94 0.63
1/8" CB-S1S-7FG 1/8-28 1.65 0.94 0.63
1/4" CB-S2S-7FN 1/4-18 1.97 1.10 0.75
1/4" CB-S2S-7FG 1/4-19 1.97 1.10 0.75
3/8" CB-S3S-7FN 3/8-18 2.32 1.34 0.90
3/8" CB-S3S-7FG 3/8-19 2.32 1.34 0.90
1/2" CB-S4S-7FN 1/2-14 2.71 1.50 1.06
1/2" CB-S4S-7FG 1/2-14 2.71 1.50 1.06
3/4" CB-S6S-7FN 3/4-14 3.50 1.89 1.38
3/4" CB-S6S-7FG 3/4-14 3.50 1.89 1.38
1" CB-S8S-7FN 1-11 3.89 2.05 1.61
1" CB-S8S-7FG 1-11 3.89 2.05 1.61

NPT Shut Off Coupling 1

Body Size PARTNO. Thread C D HEX
1/8" CB-P1S-7FN 1/8-27 1.10 0.72 0.63
1/8" CB-P1S-7FG 1/8-28 1.10 0.72 0.63
1/4" CB-P2S-7FN 1/4-18 1.38 0.86 0.75
1/4" CB-P2S-7FG 1/4-19 1.38 0.86 0.75
3/8" CB-P3S-7FN 3/8-18 1.65 1.04 0.90
3/8" CB-P3S-7FG 3/8-19 1.65 1.04 0.90
1/2" CB-P4S-7FN 1/2-14 1.97 1.22 1.06
1/2" CB-P4S-7FG 1/2-14 1.97 1.22 1.06
3/4" CB-P6S-7FN 3/4-14 2.48 1.58 1.38
3/4" CB-P6S-7FG 3/4-14 2.48 1.58 1.38
1" CB-P8S-7FN 1-11 2.79 1.87 1.61
1" CB-P8S-7FG 1-11 2.79 1.87 1.61
