0.5'' Hydraulic Hose Quick Connect

0.5'' Hydraulic Hose Quick Connect

  • High Light

    0.5'' Hydraulic Hose Quick Connect

    ,

    IATF 16949 Hydraulic Hose Quick Connect

    ,

    NPT quick release high pressure hose fittings

  • Type
    Hydraulic
  • Material
    Stainless Steel
  • Product Name
    Hydraulic Quick Coupler
  • Standard
    IATF16949
  • Thread
    NPT/BSP
  • Size
    From 1/8 To 1
  • Pressure
    0 - 15 Bar
  • Oem
    Avaliable
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-1
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

0.5'' Hydraulic Hose Quick Connect

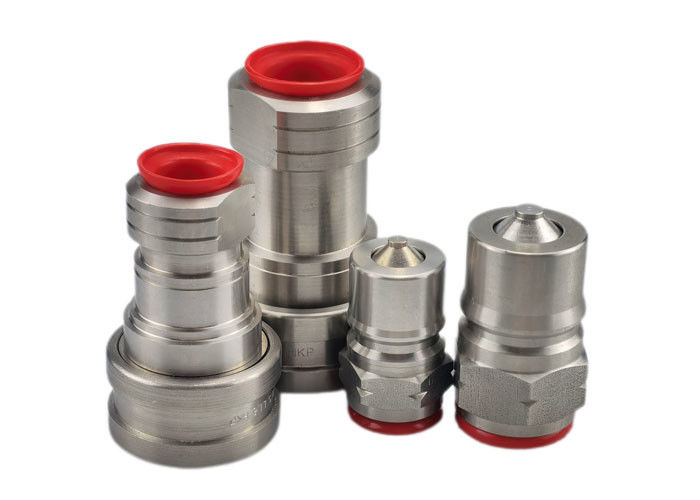

1/2'' CB-1 Series stainless steel 316 close type hydraulic quick coupling



CB-SPL-1FG/ CB-SPM-1FG are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.



Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
  2. Critical parts are hardened for durability.
  3. Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.0.5'' Hydraulic Hose Quick Connect 0
    Body Size PARTNO. Thread A B Across Flats
    1/8" CB-S1S-1FG 1/8-27 1.91 0.98 0.56
    1/8" CB-S1S-1FN 1/8-27 1.91 0.98 0.56
    1/4" CB-S2S-1FG 1/4-19 2.26 1.17 0.75
    1/4" CB-S2S-1FN 1/4-18 2.26 1.17 0.75
    3/8" CB-S3S-1FG 3/8-19 2.56 1.42 0.88
    3/8" CB-S3S-1FN 3/8-18 2.56 1.42 0.88
    1/2" CB-S4S-1FG 1/2-14 2.96 1.86 1.13
    1/2" CB-S4S-1FN 1/2-14 2.96 1.86 1.13
    3/4" CB-S6S-1FG 3/4-14 3.48 2.22 1.31
    3/4" CB-S6S-1FN 3/4-14 3.48 2.22 1.31
    1" CB-S8S-1FG 1-11 4.13 2.61 1.75
    1" CB-S8S-1FN 1-11 4.13 2.61 1.75
    0.5'' Hydraulic Hose Quick Connect 1
    Body Size PARTNO. Thread C D E HEX
    1/8" CB-P1S-1FG 1/8-27 1.26 0.65 0.44 0.56
    1/8" CB-P1S-1FG 1/8-27 1.26 0.65 0.44 0.56
    1/4" CB-P2S-1FG 1/4-19 1.52 0.87 0.56 0.75
    1/4" CB-P2S-1FN 1/4-18 1.52 0.87 0.56 0.75
    3/8" CB-P3S-1FG 3/8-19 1.76 1.01 0.61 0.88
    3/8" CB-P3S-1FN 3/8-18 1.76 1.01 0.61 0.88
    1/2" CB-P4S-1FG 1/2-14 2.03 1.30 0.76 1.13
    1/2" CB-P4S-1FN 1/2-14 2.03 1.30 0.76 1.13
    3/4" CB-P6S-1FG 3/4-14 2.36 1.52 0.71 1.31
    3/4" CB-P6S-1FN 3/4-14 2.36 1.52 0.71 1.31
    1" CB-P8S-1FG 1-11 2.85 1.88 0.97 1.63
    1" CB-P8S-1FN 1-11 2.85 1.88 0.97 1.63
