High Pressure Hardened	Hydraulic Hose Couplings 300Mpa DN 2.5mm

High Pressure Hardened Hydraulic Hose Couplings 300Mpa DN 2.5mm

  • High Light

    Hardened Hydraulic Hose Couplings 300Mpa

    ,

    DN 2.5mm Hydraulic Hose Couplings 300Mp

    ,

    1.0GPM Hardened Hydraulic Hose Couplings

  • Nominal Flow Diameter
    0.1''
  • Temperature
    -22°F — +212°F
  • Material
    Hardened, Zinc Chromate Plated Steel
  • Product Name
    High Pressure Hydraulic Hose
  • Size
    All Size
  • Color
    Black
  • Application
    Hydraulic Brake System
  • Feature
    High Pressure
  • Place of Origin
    Sweden
  • Brand Name
    CEJN
  • Certification
    IATF16949
  • Model Number
    10300
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

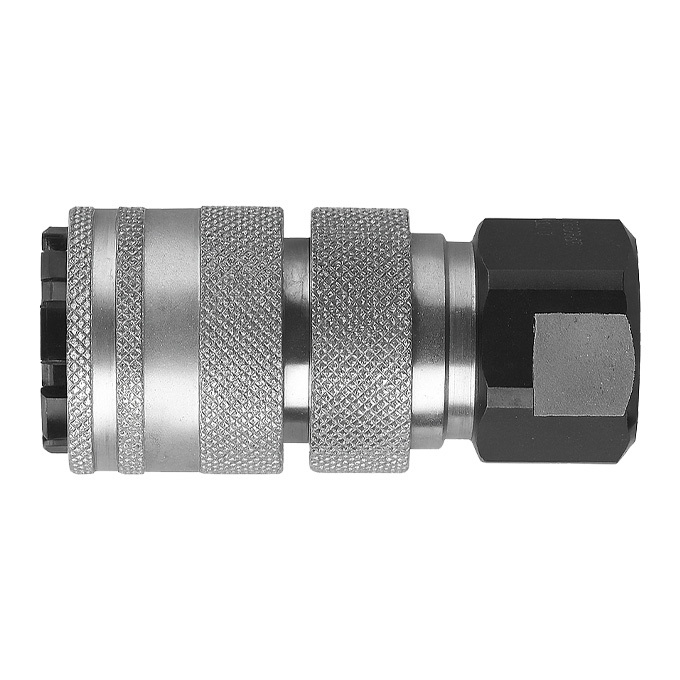

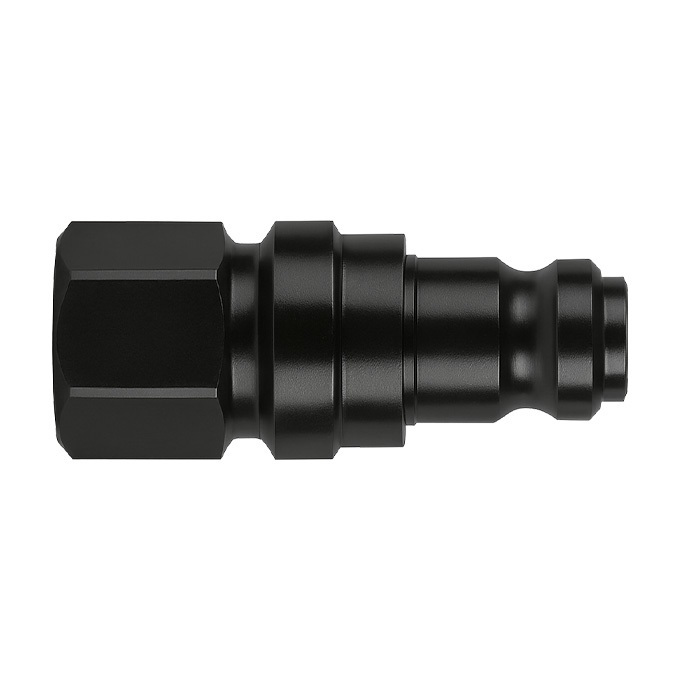

High Pressure Hardened Hydraulic Hose Couplings 300Mpa DN 2.5mm

High pressure quick couplings 300Mpa and 400Mpa ultra high-pressure hose couplings



DN 2.5 mm (3/32"). Flow capacity of 4.6 l/min (1.0 GPM uk). Max working pressure 300 MPa. Made of hardened black finished steel.



Safety lock secures the connection

A quick and smooth locking ring gives extended security to your connection. Screw locks are sometimes considered by users to be time-consuming and left unscrewed. With the safety lock on the ultra high-pressure quick couplings, unintentional disconnection is practically eliminated, just a quick twist of the bayonet lock and your hydraulic coupling is secured.











CEJN Metal Seal (CMS)

CEJN Metal Seal is the optimum and recommended sealing method developed to be a safe and reliable seal even at extremely high pressures. Due to the smaller diameter and position of CMS, stress is kept to a minimum. In the unlikely event of leakage, the oil pressure will be dispersed within the coupling without any danger to the operator.



High Pressure Hardened	Hydraulic Hose Couplings 300Mpa DN 2.5mm 0



CEJN Metal Seal (CMS)

CEJN Metal Seal is the optimum and recommended sealing method developed to be a safe and reliable seal even at extremely high pressures. Due to the smaller diameter and position of CMS, stress is kept to a minimum. In the unlikely event of leakage, the oil pressure will be dispersed within the coupling without any danger to the operator.

High Pressure Hardened	Hydraulic Hose Couplings 300Mpa DN 2.5mm 1



Configure a high-pressure hydraulic hose kit

Configure and order hydraulic hose assemblies with the easy-to-use hose configurator for ultra high-pressure hydraulic hose kits. With the configurator you can easily specify hose fittings, hydraulic quick couplings, nipples and accessories according to your specifications.



High Pressure Hardened	Hydraulic Hose Couplings 300Mpa DN 2.5mm 2
