ISO16028 1'' Flat Face Hydraulic Quick Release Couplings

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

ISO16028 1'' Flat Face Hydraulic Quick Release Couplings

ISO16028 1'' Flat Face Hydraulic Quick Release Couplings
ISO16028 1'' Flat Face Hydraulic Quick Release Couplings ISO16028 1'' Flat Face Hydraulic Quick Release Couplings

Large Image :  ISO16028 1'' Flat Face Hydraulic Quick Release Couplings

Product Details:
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-6
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000~20000 pc/month
Detailed Product Description
Standard: ISO16028 Material: Carbon Steel
Thread: NPT Application: Hydraulic System
Size: 1/4"-1" Product Name: Flat Face Coupling
Qc: 100% Compatible With: HANSEN FF Series
High Light:

1'' Flat Face Hydraulic Quick Release Couplings

,

ISO16028 Flat Face Hydraulic Quick Release Couplings

,

carbon steel iso hydraulic couplers

ISO16028 Flat Face Hydraulic Standard Steel Flat Face Couplings

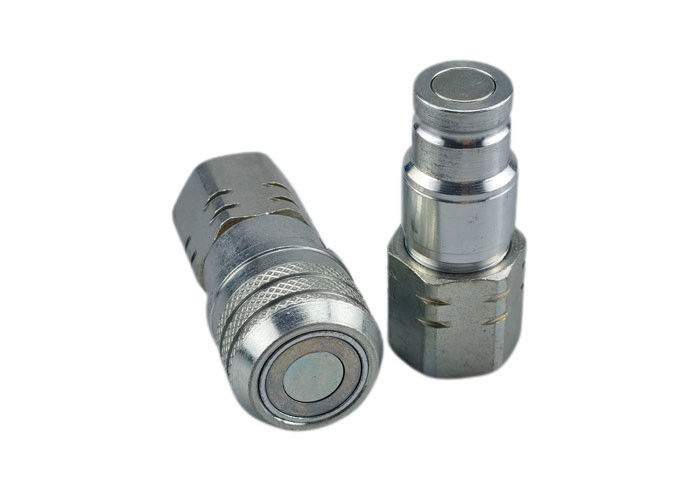

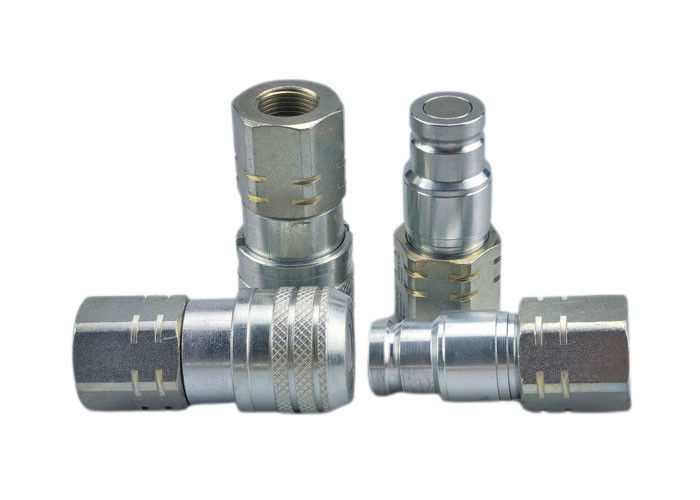

CB-6 Series coupling is a flat face dry break or minimum spill hydraulic coupling that meets the ISO16028 standard. Body sizes are 1/4", 3/8", 1/2", 5/8", 3/4" and 1".



Applications

CB-6 Series is ideal for applications where hydraulic spillage is a concern and interchangeability with other manufacturers is important. Public Utilities, Construction Equipment, Agricultural Equipment, Mining Equipment, Railway Maintenance, Overhead bucket hoists, Skid steer loaders



Standard Materials

  • zinc-plated steel
  • Seals: NBR, Viton, EPDM



Features

  1. Meets ISO16028 standard
  2. 5075psi/350bar maximum operating pressure for all sizes(connected and disconnected)
  3. Push-to-connect
  4. Sleeve-locking device to prevent accidental disconnection is standard
  5. Excellent mechanical performance(pressure/flow)
  6. Compatible with Hansen FF Series.

ISO16028 1'' Flat Face Hydraulic Quick Release Couplings 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2S-6FN 1/4’’ 2.32 1.10 0.87
3/8" CB-S3S-6FN 3/8’’ 2.87 1.26 1.18
3/8" CB-S3S-6FN 1/2’’ 2.87 1.26 1.18
1/2" CB-S4S-6FN 1/2’’ 3.31 1.50 1.42
1/2" CB-S4S-6FN 3/4’’ 3.31 1.50 1.42
5/8" CB-S5S-6FN 1/2’’ 3.23 1.65 1.42
5/8" CB-S5S-6FN 3/4’’ 3.39 1.65 1.42
3/4" CB-S6S-6FN 3/4’’ 3.74 1.89 1.61
3/4" CB-S6S-6FN 1’’ 3.86 1.89 1.61
1" CB-S8S-6FN 1-1/4’’ 4.33 2.17 2.17

ISO16028 1'' Flat Face Hydraulic Quick Release Couplings 1

Body Size PARTNO. Thread C D HEX
1/4" CB-P2S-6FN 1/4’’ 2.05 0.63 0.87
3/8" CB-P3S-6FN 3/8’’ 2.52 0.78 1.18
3/8" CB-P3S-6FN 1/2’’ 2.52 0.78 1.18
1/2" CB-P4S-6FN 1/2’’ 2.91 0.96 1.42
1/2" CB-P4S-6FN 3/4’’ 2.95 0.96 1.42
5/8" CB-P5S-6FN 1/2’’ 2.87 1.06 1.42
5/8" CB-P5S-6FN 3/4’’ 2.95 1.06 1.42
3/4" CB-P6S-6FN 3/4’’ 3.39 1.18 1.61
3/4" CB-P6S-6FN 1’’ 3.39 1.18 1.61
1" CB-P8S-6FN 1-1/4’’ 3.54 1.42 2.17
