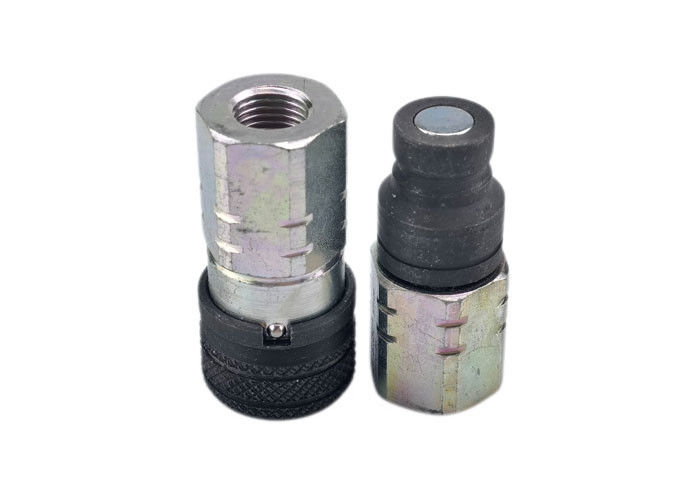

Carbon Steel 0.25'' Flat Face Coupler , ISO 16028 Flat Face Couplings

Carbon Steel 0.25'' Flat Face Coupler , ISO 16028 Flat Face Couplings
Carbon Steel 0.25'' Flat Face Coupler , ISO 16028 Flat Face Couplings Carbon Steel 0.25'' Flat Face Coupler , ISO 16028 Flat Face Couplings

Large Image :  Carbon Steel 0.25'' Flat Face Coupler , ISO 16028 Flat Face Couplings

Product Details:
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-6
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000~20000 pc/month
Detailed Product Description
Standard: ISO16028 Material: Carbon Steel
Thread: NPT Application: Hydraulic System
Size: 1/4"-1" Product Name: Flat Face Coupling
Qc: 100% Compatible With: HANSEN FF Series
High Light:

0.25'' Flat Face Coupler

,

Carbon Steel Flat Face Coupler

,

iso 16028 flat face couplings

1/4'' ISO16028 Flat Face Hydraulic Standard Steel Flat Face Couplings



CB-6 Series coupling is a flat face dry break or minimum spill hydraulic coupling that meets the ISO16028 standard. Body sizes are 1/4", 3/8", 1/2", 5/8", 3/4" and 1".



Applications

CB-6 Series is ideal for applications where hydraulic spillage is a concern and interchangeability with other manufacturers is important. Public Utilities, Construction Equipment, Agricultural Equipment, Mining Equipment, Railway Maintenance, Overhead bucket hoists, Skid steer loaders



Standard Materials

  • zinc-plated steel
  • Seals: NBR, Viton, EPDM



Features

  1. Meets ISO16028 standard
  2. 5075psi/350bar maximum operating pressure for all sizes(connected and disconnected)
  3. Push-to-connect
  4. Sleeve-locking device to prevent accidental disconnection is standard
  5. Excellent mechanical performance(pressure/flow)
  6. Compatible with Hansen FF Series.

Carbon Steel 0.25'' Flat Face Coupler , ISO 16028 Flat Face Couplings 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2S-6FN 1/4’’ 2.32 1.10 0.87
3/8" CB-S3S-6FN 3/8’’ 2.87 1.26 1.18
3/8" CB-S3S-6FN 1/2’’ 2.87 1.26 1.18
1/2" CB-S4S-6FN 1/2’’ 3.31 1.50 1.42
1/2" CB-S4S-6FN 3/4’’ 3.31 1.50 1.42
5/8" CB-S5S-6FN 1/2’’ 3.23 1.65 1.42
5/8" CB-S5S-6FN 3/4’’ 3.39 1.65 1.42
3/4" CB-S6S-6FN 3/4’’ 3.74 1.89 1.61
3/4" CB-S6S-6FN 1’’ 3.86 1.89 1.61
1" CB-S8S-6FN 1-1/4’’ 4.33 2.17 2.17

Carbon Steel 0.25'' Flat Face Coupler , ISO 16028 Flat Face Couplings 1

Body Size PARTNO. Thread C D HEX
1/4" CB-P2S-6FN 1/4’’ 2.05 0.63 0.87
3/8" CB-P3S-6FN 3/8’’ 2.52 0.78 1.18
3/8" CB-P3S-6FN 1/2’’ 2.52 0.78 1.18
1/2" CB-P4S-6FN 1/2’’ 2.91 0.96 1.42
1/2" CB-P4S-6FN 3/4’’ 2.95 0.96 1.42
5/8" CB-P5S-6FN 1/2’’ 2.87 1.06 1.42
5/8" CB-P5S-6FN 3/4’’ 2.95 1.06 1.42
3/4" CB-P6S-6FN 3/4’’ 3.39 1.18 1.61
3/4" CB-P6S-6FN 1’’ 3.39 1.18 1.61
1" CB-P8S-6FN 1-1/4’’ 3.54 1.42 2.17
