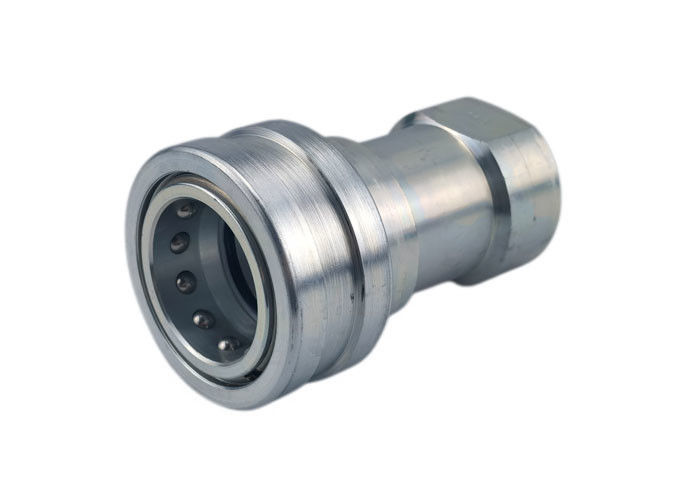

1/8 Inch Medium Pressure ISO7241B Brass Quick Connect

1/8 Inch Medium Pressure ISO7241B Brass Quick Connect

  • High Light

    ISO7241B Brass Quick Connect

    ,

    IATF16949 Brass Quick Connect

    ,

    ISO9001 brass quick connect garden hose fittings

  • Product Name
    Brass Hydraulic Quick Coupler
  • Material
    Brass
  • Connection
    Female/Male
  • Technics
    CNC Machining
  • Size
    1/8' ~ 1'
  • Temperature
    -20~120°C
  • Standard
    ISO7241B
  • Certification
    ISO9001
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-3
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5000~20000 pc/month

1/8 Inch Medium Pressure ISO7241B Brass Quick Connect

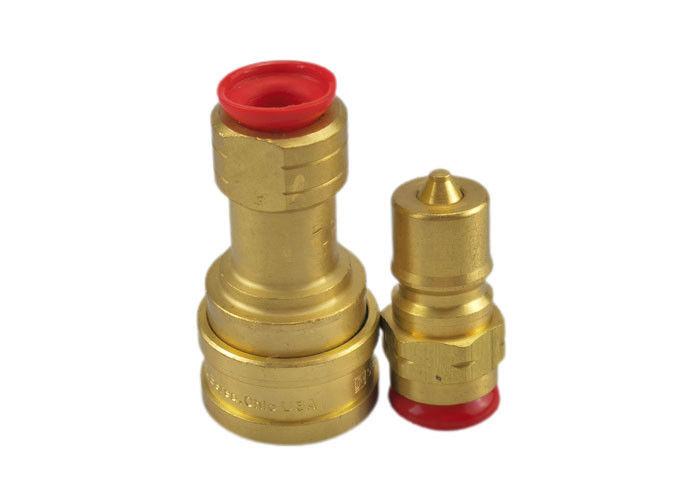

Medium-pressure High Performance Pneumatic And Hydraulic Brass Quick Coupling



Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM



CB-3 Series Quick Couplings are used across the spectrum of hydraulic applications. Primarily used with hydraulic fluid. CB-3 couplings are also used with chemicals, water, steam, and some gases.



Features

  1. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
  2. Critical parts are hardened for durability.
  3. Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.

1/8 Inch Medium Pressure ISO7241B Brass Quick Connect 0

Body Size PARTNO. Thread A B Across Flats
1/8" CB-S1B-1FG 1/8-27 1.91 0.98 0.56
1/8" CB-S1B-1FN 1/8-27 1.91 0.98 0.56
1/4" CB-S2B-1FG 1/4-19 2.26 1.17 0.75
1/4" CB-S2B-1FN 1/4-18 2.26 1.17 0.75
3/8" CB-S3B-1FG 3/8-19 2.56 1.42 0.88
3/8" CB-S3B-1FN 3/8-18 2.56 1.42 0.88
1/2" CB-S4B-1FG 1/2-14 2.96 1.86 1.13
1/2" CB-S4B-1FN 1/2-14 2.96 1.86 1.13
3/4" CB-S6B-1FG 3/4-14 3.48 2.22 1.31
3/4" CB-S6B-1FN 3/4-14 3.48 2.22 1.31
1" CB-S8B-1FG 1-11 4.13 2.61 1.75
1" CB-S8B-1FN 1-11 4.13 2.61 1.75

1/8 Inch Medium Pressure ISO7241B Brass Quick Connect 1

Body Size PARTNO. Thread C D E HEX
1/8" CB-P1B-1FG 1/8-27 1.26 0.65 0.44 0.56
1/8" CB-P1B-1FG 1/8-27 1.26 0.65 0.44 0.56
1/4" CB-P2B-1FG 1/4-19 1.52 0.87 0.56 0.75
1/4" CB-P2B-1FN 1/4-18 1.52 0.87 0.56 0.75
3/8" CB-P3B-1FG 3/8-19 1.76 1.01 0.61 0.88
3/8" CB-P3B-1FN 3/8-18 1.76 1.01 0.61 0.88
1/2" CB-P4B-1FG 1/2-14 2.03 1.30 0.76 1.13
1/2" CB-P4B-1FN 1/2-14 2.03 1.30 0.76 1.13
3/4" CB-P6B-1FG 3/4-14 2.36 1.52 0.71 1.31
3/4" CB-P6B-1FN 3/4-14 2.36 1.52 0.71 1.31
1" CB-P8B-1FG 1-11 2.85 1.88 0.97 1.63
1" CB-P8B-1FN 1-11 2.85 1.88 0.97 1.63
