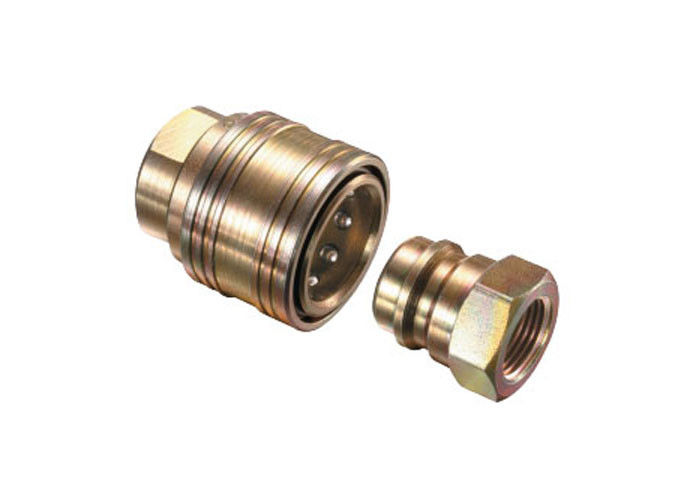

Ball Locking Excellent Flow Capacity Brass Quick Coupler

Ball Locking Excellent Flow Capacity Brass Quick Coupler
Ball Locking Excellent Flow Capacity Brass Quick Coupler Ball Locking Excellent Flow Capacity Brass Quick Coupler Ball Locking Excellent Flow Capacity Brass Quick Coupler

Large Image :  Ball Locking Excellent Flow Capacity Brass Quick Coupler

Product Details:
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-9
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000~20000 pc/month
Detailed Product Description
Material: Brass Product Name: Quick Coupler
Thread: BSPP Size: 1/8" To 1"
Application: Maximum Flow Capacity Pressure: 580-4350psi
Connection: Female Technics: Other
High Light:

4350psi Brass Quick Coupler

,

580psi Brass Quick Coupler

,

BSPP brass garden hose quick connect

Applications where maximum flow capacity is required Stainless Steel Quick Coupling



Applications

Applications where maximum flow capacity is required Pressure washing Some steam-cleaning equipment Fluid transfer lines Refrigerant circuits Hydraulic fluids (water, steam, oil, …)

Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Straight-through couplings
  2. Pull-to-connect couplings
  3. Ball-locking
  4. Dust caps and plugs
  5. Excellent flow capacity
  6. Compatible with HANSEN L7000 Series.

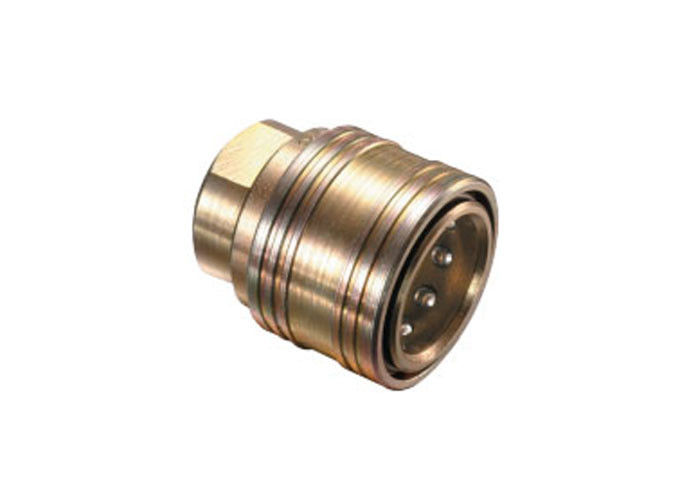

Ball Locking Excellent Flow Capacity Brass Quick Coupler 0

Body Size

PARTNO.

Steel

PARTNO.

Brass

PARTNO.

Stainless

Thread A B HEX
1/8" CB-S1S-9FG CB-S1B-9FG CB-S1M-9FG 1/8-28 41.5 24 16
1/4" CB-S2S-9FG CB-S2B-9FG CB-S2M-9FG 1/4-19 36 28 19
3/8" CB-S3S-9FG CB-S3B-9FG CB-S3M-9FG 3/8-19 38 34 23
1/2" CB-S4S-9FG CB-S4B-9FG CB-S4M-9FG 1/2-14 45 38 27
3/4" CB-S6S-9FG CB-S6B-9FG CB-S6M-9FG 3/4-14 56 48 35
1" CB-S8S-9FG CB-S8B-9FG CB-S8M-9FG 1-11 61 52 41

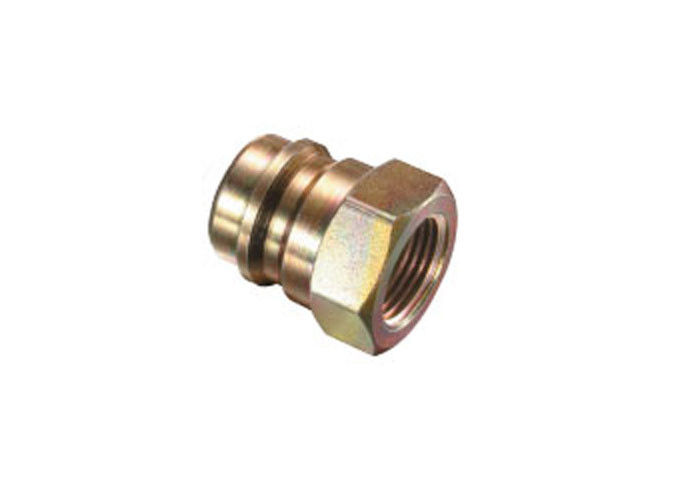

Ball Locking Excellent Flow Capacity Brass Quick Coupler 1

Body Size

PARTNO.

Steel

PARTNO.

Brass

PARTNO.

Stainless

Thread C D HEX
1/8" CB-P1S-9FG CB-P1B-9FG CB-P1M-9FG 1/8-28 26 11 16
1/4" CB-P2S-9FG CB-P2B-9FG CB-P2M-9FG 1/4-19 25.5 14.2 19
3/8" CB-P3S-9FG CB-P3B-9FG CB-P3M-9FG 3/8-19 28 19 23
1/2" CB-P4S-9FG CB-P4B-9FG CB-P4M-9FG 1/2-14 33 20.6 27
3/4" CB-P6S-9FG CB-P6B-9FG CB-P6M-9FG 3/4-14 40 27.9 35
1" CB-P8S-9FG CB-P8B-9FG CB-P8M-9FG 1-11 44 32.4 41
