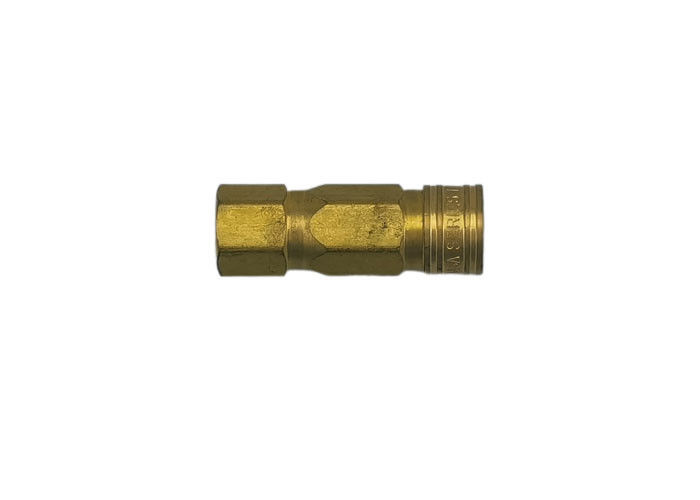

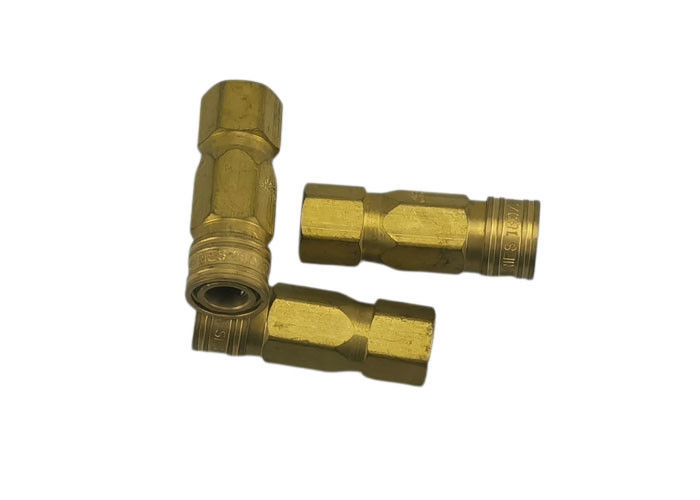

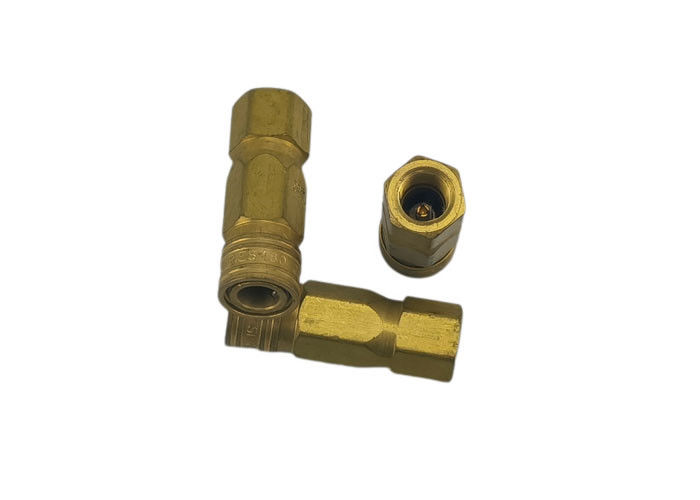

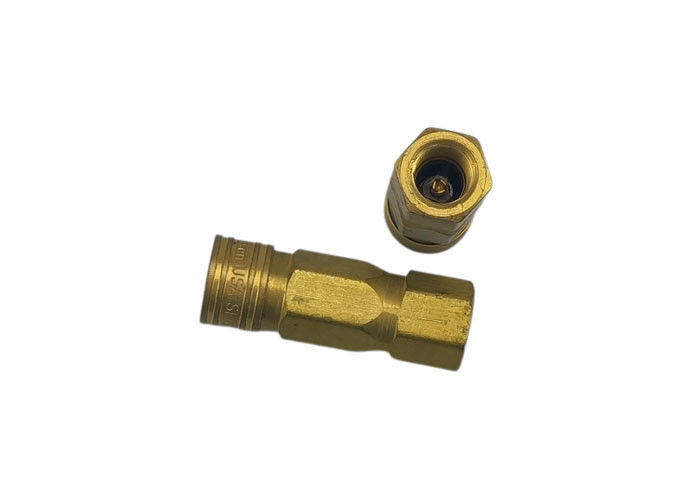

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling

Products - Pneumatic Quick Coupling
  • Product Name
    Pneumatic Coupler
  • Standard
    NPT
  • Thread
    Male/female
  • Pressure
    700/3000 Psi
  • Temperature
    -20℃ ~ 100℃
  • Usage
    Oil Gas Water Industrial
  • Size
    Everything You Need
  • Material
    Brass,Carbon Steel,Stainless Steel
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling

  • 1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling
  • 1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling
  • 1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling
  • 1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling
Get Price Contact Now

1/8 Nominal Use with compressed air, gases and liquids Pneumatic Quick Coupling



CB-12 Series Miniature Ball Lock Quick-Connect Couplings designed for use with compressed air, gases and liquids.



Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual operation
  3. Series A and B sockets mate with all Series A plugs
  4. Series A socket has a tire valve. Series B socket has a other valve, which provides higher flow capacity.
  5. Compatible with Hansen 180&280 Series

Rated Pressure and Flow Capacity

Series Rated Pressure (PSI) Rated Pressure (BAR)

Flow Capacity

(scfm)

 Standard seal material
180 700 48 2.5 NBR
280 3000 207 10.0 NBR

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 0

Body Size PARTNO. Thread A B HEX
1/8" CB-S1B-12MN-A 1/8-27 1.41 0.63 0.56
1/8" CB-S2B-12MN-B 1/4-18 1.38 0.63 0.56

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 1

Body Size PARTNO. Thread C D HEX
1/8" CB-P1B-12MN-A 1/8-27 1.16 0.49 0.44
1/8" CB-P2B-12MN-B 1/4-18 1.44 0.63 0.56

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 2

Body Size PARTNO. Thread A B HEX
1/8" CB-S1B-12FN-B 1/8-27 1.78 0.63 0.56

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 3

Body Size PARTNO. Thread C D HEX
1/8" CB-P1B-12FN-A 1/8-27 1.19 0.63 0.56

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 41/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 5

Body Size PARTNO. Hose C D
1/8" CB-P1B-12H-A 1/8’’ 1.25 0.38
1/8" CB-P2B-12H-B 3/16’’ 1.50 0.38



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
