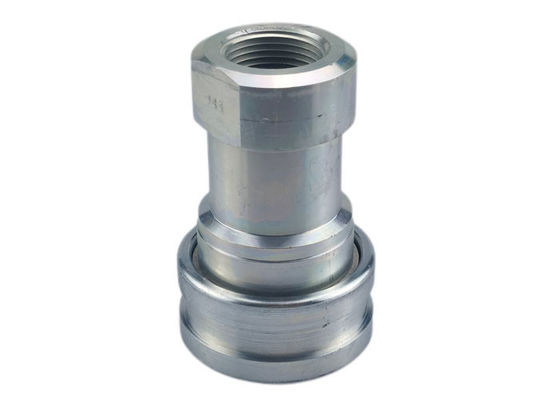

1 Inch Carbon Steel Female Hydraulic Quick Connect

large.img.alt
large.img.alt
video play

Large Image :  1 Inch Carbon Steel Female Hydraulic Quick Connect

Product Details:
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000~20000 pc/month
Detailed Product Description
Material: Carbon Steel Other Name: Hydraulic Quick Connect
Size: 1'' Connection: Female
Rated Pressure: 275Bar Rated Flow: 12gpm
Interchange Type: ISO 7241-B Place Of Origin: Shanghai
High Light:

1in Female Hydraulic Quick Connect

,

ISO 7241 Female Hydraulic Quick Connect

,

IATF16949 hydraulic quick release coupling

1'' Steel Hydraulic Quick Coupler,Interchangeable Hydraulic Quick Connect



CB-SP1S-1FG couplings, are used in construction quipment, Forestry equipment, agricultural machinery, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications.





Standard Materials

  • Brass, zinc-plated steel, stainless steel

  • Seals: NBR, Viton, EPDM

Features



  • Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.

  • Critical parts are hardened for durability.

  • Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.1 Inch Carbon Steel Female Hydraulic Quick Connect 0

Body Size PARTNO. Thread A B Across Flats
1/8" CB-S1S-1FG 1/8-27 1.91 0.98 0.56
1/8" CB-S1S-1FN 1/8-27 1.91 0.98 0.56
1/4" CB-S2S-1FG 1/4-19 2.26 1.17 0.75
1/4" CB-S2S-1FN 1/4-18 2.26 1.17 0.75
3/8" CB-S3S-1FG 3/8-19 2.56 1.42 0.88
3/8" CB-S3S-1FN 3/8-18 2.56 1.42 0.88
1/2" CB-S4S-1FG 1/2-14 2.96 1.86 1.13
1/2" CB-S4S-1FN 1/2-14 2.96 1.86 1.13
3/4" CB-S6S-1FG 3/4-14 3.48 2.22 1.31
3/4" CB-S6S-1FN 3/4-14 3.48 2.22 1.31
1" CB-S8S-1FG 1-11 4.13 2.61 1.75
1" CB-S8S-1FN 1-111 Inch Carbon Steel Female Hydraulic Quick Connect 1 4.13 2.61 1.75

1 Inch Carbon Steel Female Hydraulic Quick Connect 2

Body Size PARTNO. Thread C D E HEX
1/8" CB-P1S-1FG 1/8-27 1.26 0.65 0.44 0.56
1/8" CB-P1S-1FG 1/8-27 1.26 0.65 0.44 0.56
1/4" CB-P2S-1FG 1/4-19 1.52 0.87 0.56 0.75
1/4" CB-P2S-1FN 1/4-18 1.52 0.87 0.56 0.75
3/8" CB-P3S-1FG 3/8-19 1.76 1.01 0.61 0.88
3/8" CB-P3S-1FN 3/8-18 1.76 1.01 0.61 0.88
1/2" CB-P4S-1FG 1/2-14 2.03 1.30 0.76 1.13
1/2" CB-P4S-1FN 1/2-14 2.03 1.30 0.76 1.13
3/4" CB-P6S-1FG 3/4-14 2.36 1.52 0.71 1.31
3/4" CB-P6S-1FN 3/4-14 2.36 1.52 0.71 1.31
1" CB-P8S-1FG 1-11 2.85 1.88 0.97 1.63
1" CB-P8S-1FN 1-111 Inch Carbon Steel Female Hydraulic Quick Connect 1 2.85 1.88 0.97 1.63
