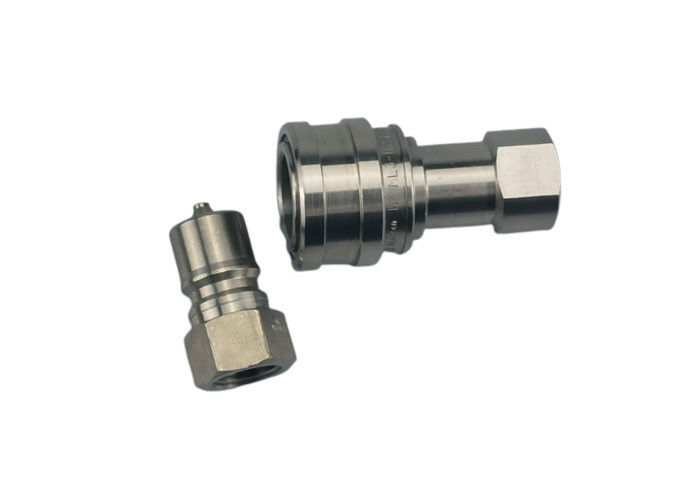

SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings

large.img.alt
large.img.alt
video play

Large Image :  SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings

Product Details:
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000~20000 pc/month
Detailed Product Description
Type: Hydraulic Material: Stainless Steel
Product Name: Hydraulic Quick Coupler Standard: IATF16949
Thread: NPT/BSP Size: From 1/8 To 1
Pressure: 0 - 15 Bar Oem: Avaliable
High Light:

SS316 1 Inch Hydraulic Quick Coupler

,

IATF16949 1 Inch Hydraulic Quick Coupler

,

BSP hydraulic hose quick disconnect fittings

 hydraulic quick disconnect couplings stainless steel 316 close type hydraulic quick coupling





Features

  1. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
  2. Critical parts are hardened for durability.
  3. Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.


CB-SPL-1FG/ CB-SPM-1FG are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.

Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 0



Body Size PARTNO. Thread A B Across Flats
1/8" CB-S1L-1FG/CB-S1M-1FG 1/8-27 1.91 0.98 0.56
1/8" CB-S1L-1FN/CB-S1M-1FN 1/8-27 1.91 0.98 0.56
1/4" CB-S2L-1FG/CB-S2M-1FG 1/4-19 2.26 1.17 0.75
1/4" CB-S2L-1FN/CB-S2M-1FN 1/4-18 2.26 1.17 0.75
3/8" CB-S3L-1FG/CB-S3M-1FG 3/8-19 2.56 1.42 0.88
3/8" CB-S3L-1FN/CB-S3M-1FN 3/8-18 2.56 1.42 0.88
1/2" CB-S4L-1FG/CB-S4M-1FG 1/2-14 2.96 1.86 1.13
1/2" CB-S4L-1FN/CB-S4M-1FN 1/2-14 2.96 1.86 1.13
3/4" CB-S6L-1FG/CB-S6M-1FG 3/4-14 3.48 2.22 1.31
3/4" CB-S6L-1FN/CB-S6M-1FN 3/4-14 3.48 2.22 1.31
1" CB-S8L-1FG/CB-S8M-1FG 1-11 4.13 2.61 1.75
1" CB-S8L-1FN/CB-S8M-1FN 1-11SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 1 4.13 2.61 1.75

SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 2




Body Size PARTNO. Thread C D E HEX
1/8" CB-P1L-1FG/ CB-P1M-1FG 1/8-27 1.26 0.65 0.44 0.56
1/8" CB-P1L-1FG/ CB-P1M-1FG 1/8-27 1.26 0.65 0.44 0.56
1/4" CB-P2L-1FG/ CB-P2M-1FG 1/4-19 1.52 0.87 0.56 0.75
1/4" CB-P2L-1FN/ CB-P2M-1FN 1/4-18 1.52 0.87 0.56 0.75
3/8" CB-P3L-1FG/ CB-P3M-1FG 3/8-19 1.76 1.01 0.61 0.88
3/8" CB-P3L-1FN/ CB-P3M-1FN 3/8-18 1.76 1.01 0.61 0.88
1/2" CB-P4L-1FG/ CB-P4M-1FG 1/2-14 2.03 1.30 0.76 1.13
1/2" CB-P4L-1FN/ CB-P4M-1FN 1/2-14 2.03 1.30 0.76 1.13
3/4" CB-P6L-1FG/ CB-P6M-1FG 3/4-14 2.36 1.52 0.71 1.31
3/4" CB-P6L-1FN/ CB-P6M-1FN 3/4-14 2.36 1.52 0.71 1.31
1" CB-P8L-1FG/ CB-P8M-1FG 1-11 2.85 1.88 0.97 1.63
1" CB-P8L-1FN/ CB-P8M-1FN 1-11SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 1 2.85 1.88 0.97 1.63


SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 4
