Place of Origin:
China
Brand Name:
carterberg
Certification:
IATF16949
Model Number:
CB-PLMD-N6443
Video

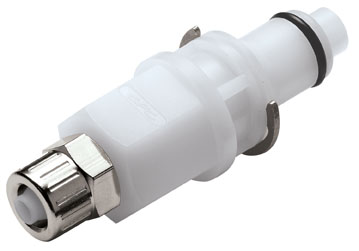

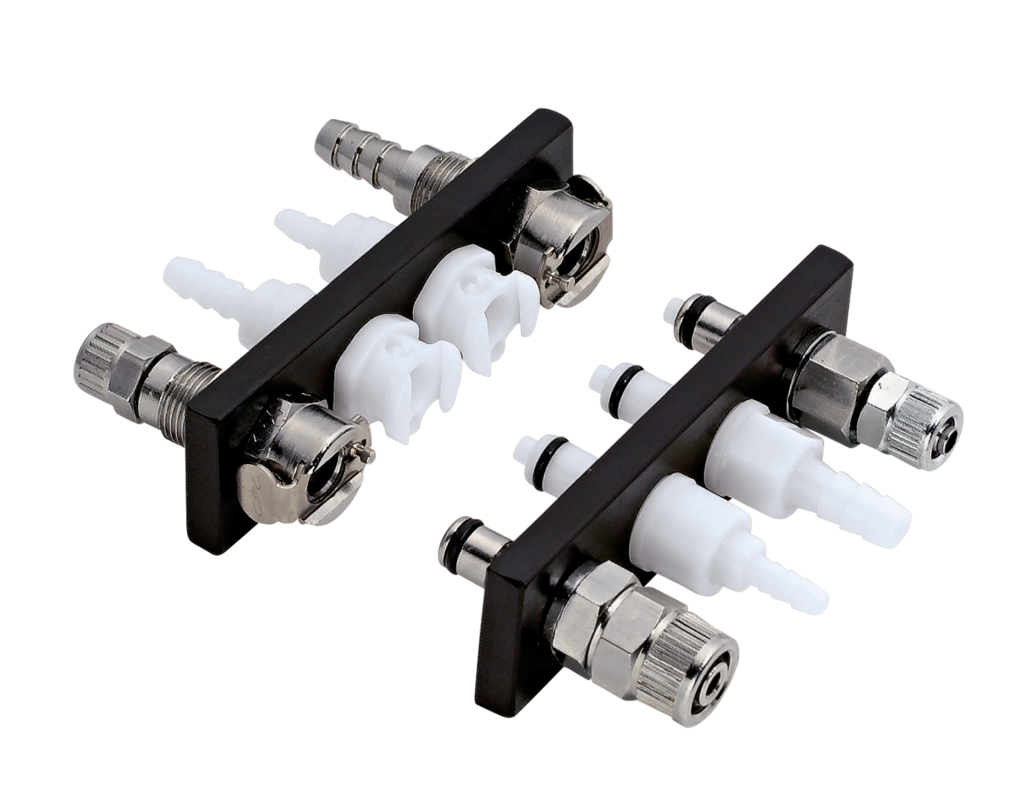

Multi-Mount Industrial Multi-Line Coupling – 3-5 Way, Acetal & Chrome-Plated Brass
Multi-Mount
One easy-to-use coupling for connecting from three to five lines at once.
Multi-Mount couplings provide one easy-to-use coupling
for connecting from three to five lines at once. Multi-mount couplings are available in a wide variety of materials including
acetal and chrome-plated brass. Multi-mounts are keyed to prevent mismatched connections and can be configured with or without valves for maximum design flexibility.
SPECIFICATIONS
|
PRESSURE |
|
|
Minimum |
Vacuum |
|
Maximum |
Brass = 500 psi / no. of stations or Acetal = 240 psi / no. of stations |
|
TEMPERATURE:-40°F to 180°F (-40°C to 82°C) |
|
|
MATERIALS |
|
|
Main components |
Acetal or chrome-plated brass |
|
Thumb latch |
Stainless steel |
|
Mounting Plate |
Black anodized aluminum |
|
Valves |
Acetal |
|
Valve spring |
316 stainless steel |
|
External springs and pin |
Stainless steel |
|
O-ring |
Buna-N |
|
TUBING SIZES: 1/8" to 3/8" ID, 3.2mm to 9.5mm ID |
|
|
FEATURES |
BENEFITS |
|
Three to five line connection |
Fast, efficient operation |
|
Separate flow paths |
Pressure and/or vacuum in one coupling |
|
Insert is keyed to body |
Ensures correct line orientation |
|
Acetal or chrome-plated brass |
Maximize design flexibility |
