Applications in Hydraulic bolt tensioning non-drip couplings 150Mpa high-pressure hose couplings

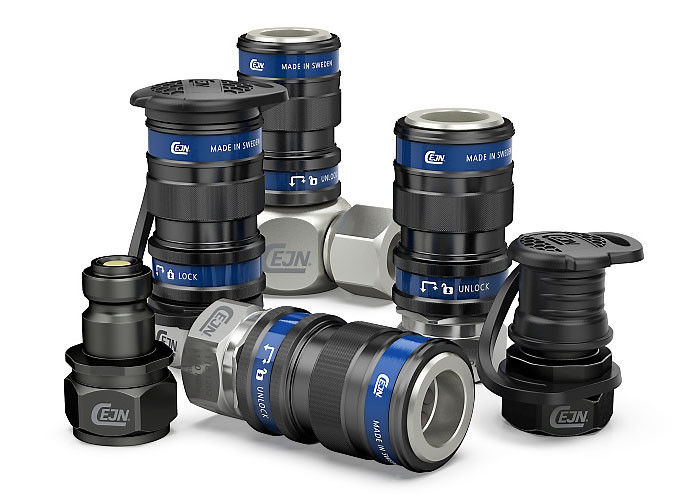

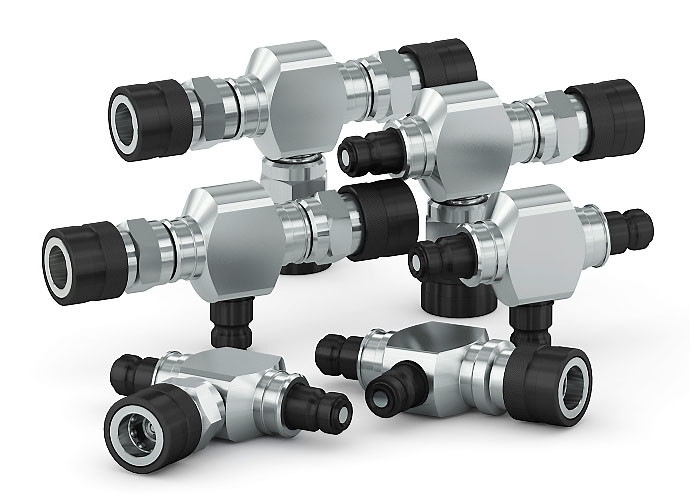

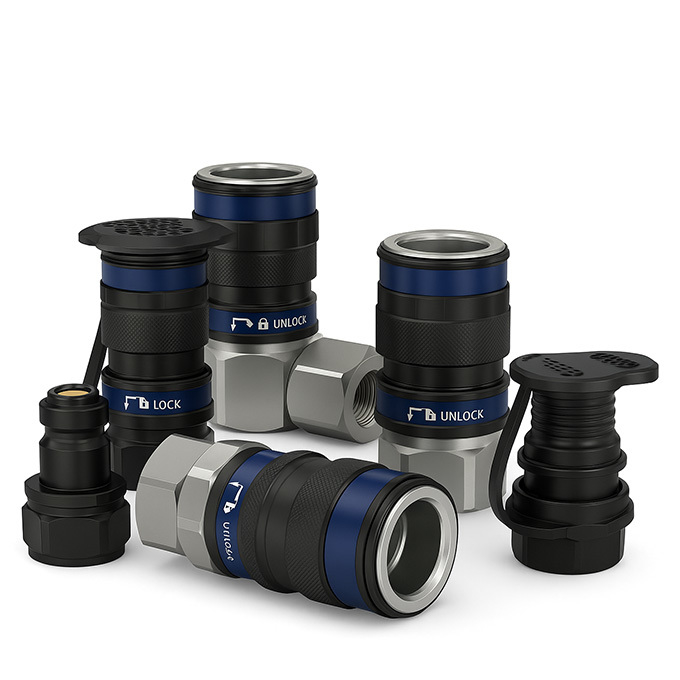

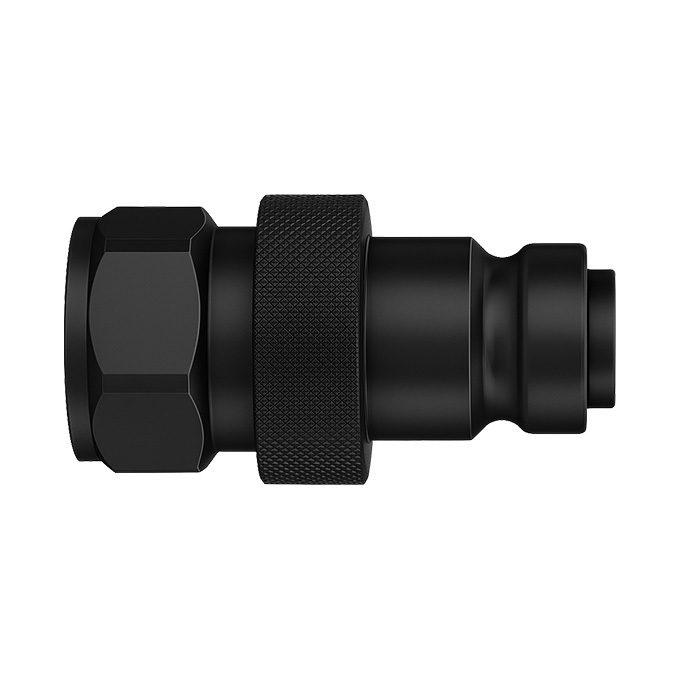

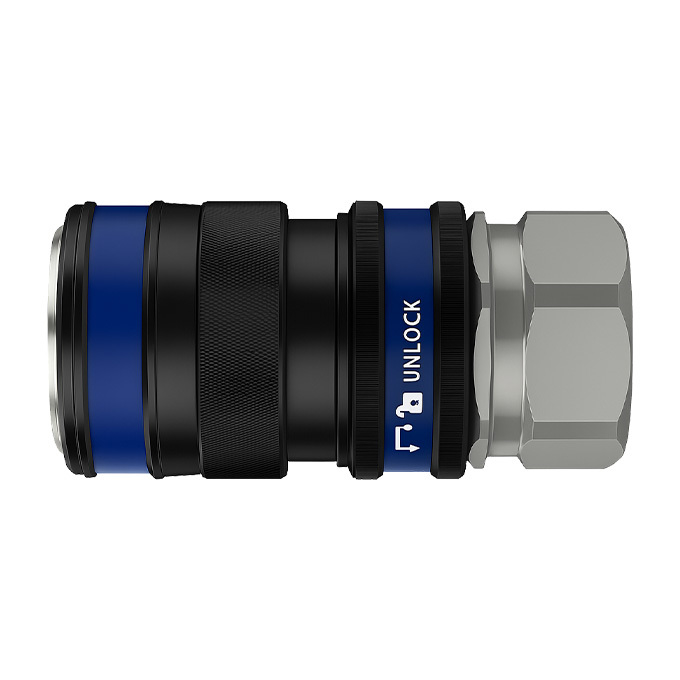

The 116 series of hydraulic quick connect couplings for ultra high pressure are easy to handle, safe and reliable. The quick couplers are available in both standard and flat-face designs. Series 116 are non-drip couplings with clean connection and disconnection protecting both the environment and circuit integrity. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. The high performance and robust design with small outer dimensions, makes it a suitable option in many different applications. Additionally, a 90° swivel connection is available for use in confined areas. The couplings and nipples are available in stainless steel for use in corrosive environments. Plastic dust caps come as standard for both the couplings and nipples. These extend the lifetime of couplings, nipples and the entire hydraulic system. Aluminium dust caps are also available upon request.
Applications: Hydraulic bolt tensioning, Test benches, Cylinders, Bearing pullers
Safety lock secures the connection
A quick and smooth locking ring gives extended security to your connection. Screw locks are sometimes considered by users to be time-consuming and left unscrewed. With the safety lock on the ultra high-pressure quick couplings, unintentional disconnection is practically eliminated, just a quick twist of the bayonet lock and your hydraulic coupling is secured.
CEJN Metal Seal (CMS)
CEJN Metal Seal is the optimum and recommended sealing method developed to be a safe and reliable seal even at extremely high pressures. Due to the smaller diameter and position of CMS, stress is kept to a minimum. In the unlikely event of leakage, the oil pressure will be dispersed within the coupling without any danger to the operator.
Oil Flow
x: Flow, l/min (GPM UK)
y: Pressure drop, MPa
| Nominal flow diameter | 2.5 mm (0.1") |
| Flow capacity | 6.0 l/min (1.3 GPM UK) |
| Max. working pressure | 150 MPa |
| Min. burst pressure | 300 MPa |
| Temperature range | -30°C — +100°C (-22°F — +212°F) |
| Material coupling | Hardened, zinc chromate plated steel |
| Material nipple | Hardened, zinc chromate plated steel |
| Material seal | Nitrile (NBR) other sealing materials on request |
Flow capacity is measured at 0.4 MPa pressure drop.
