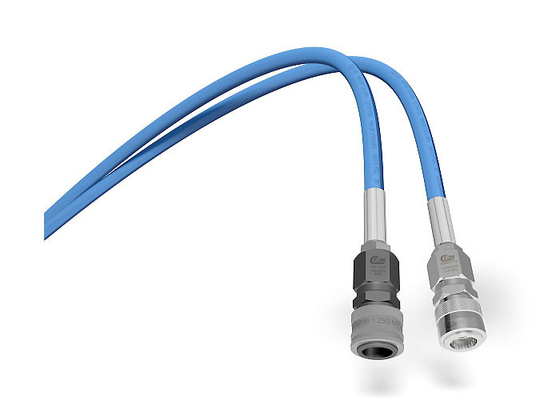

150MPa Ultra High Pressure Hose Blue High Pressure Water Hose OD 9.5mm

150MPa Ultra High Pressure Hose Blue High Pressure Water Hose OD 9.5mm

  • High Light

    150MPa Ultra High Pressure Hose

    ,

    OD 9.5mm High Pressure Water Hose

    ,

    CIS High Pressure Water Hose

  • Name
    Hydraulic Hose
  • Color
    Blue
  • ID X OD
    4,9 X 9,5 Mm
  • Max. Working Pressure
    150 MPa
  • Min. Burst Pressure
    375 MPa
  • Min. Bend Radius
    95 Mm
  • Weight
    140 G/m
  • Temperature
    -40°F — +212°F
  • Place of Origin
    Sweden
  • Brand Name
    CEJN
  • Certification
    IATF16949
  • Model Number
    H951150
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

150MPa Ultra High Pressure Hose Blue High Pressure Water Hose OD 9.5mm

Hydraulic Coupling Flexible lance applications up to 150MPa Ultra High Pressure Hose

Hose 150 MPa DN5 2 layer

Water jetting / HydraulicHydraulicCoupling compatible

  • Top operator safety
  • Small outer diameter
  • Light weight
  • Certified and traceable with CiS
  • Custom made assemblies
  • Standard assemblies (see drawing specifications)
  • In accordance DIN EN1829-2

This 150MPa high pressure hose is designed for water jetting applications in tight spaces as well as hydraulic applications in both on and offshore environments. The 2 layers of high tensile steel makes this a light weight and safe hose to work with, without compromising on flexibility. Low volumetric expansion (14%) means the overall length of the hose does no vary more than +/-2% at MWP giving fast response times in hydraulic systems. The smooth POM bore (4.9 mm) helps to keep pressure drops to a minimum despite its compact size (9.5mm) and provides robust chemical resistance. Benchmark testing shows this hose is capable of withstanding over 20000 MWP impulses at 70°C.



Applications: 1. High pressure hydraulic service and tube cleaning in the chemical and oil refining industries 2. Industrial cleaning including the shipbuilding and construction sectors 3. Effective in the removal of built-up layer of sealants, paints or sealed in grime 4. Flexible lance applications up to 150MPa 5. Promoting safe and flexible operation of chemical fluids systems

150MPa Ultra High Pressure Hose Blue High Pressure Water Hose OD 9.5mm 0

Design

Inner tube of polyoxymethylene (POM), 2 spiral layers of ultra high

tensile steel wire, outer sheath of polyamide (PA)

ID x OD 4,9 x 9,5 mm
Max. working pressure 150 MPa
Min. burst pressure 375 MPa
Min. bend radius 95 mm (3.7")
Weight 140 g/m (4.9 oz)
Temperature range Hydraulic -40°C — +100°C (-40°F — +212°F)
Temperature range Water Jetting -10°C — +70°C (14°F — +158°F)
