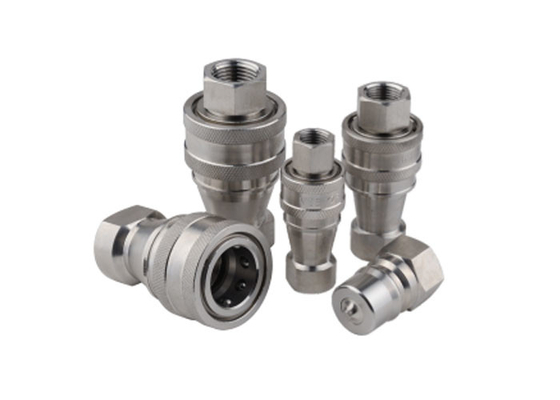

ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread

ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread

Products - Hydraulic Quick Coupler
  • High Light

    Open Close Type Hydraulic Quick Coupler

    ,

    SS Hydraulic Quick Coupler

    ,

    ISO7241B Hydraulic Quick Coupler

  • Product Name
    Hydraulic Quick Coupler
  • Material
    Stainless Steel
  • Medium
    Fluid
  • Standard
    ISO7241B
  • Thread
    NPT/BSP
  • Size
    From 1/8 To 1
  • Pressure
    0 - 15 Bar
  • Oem
    Avaliable
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-1
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread

  • ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread
  • ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread
  • ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread
  • ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread
Get Price Contact Now

 ISO7241B Stainless Steel Open and Close Type Hydraulic Quick Coupler



Features

  1. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
  2. Critical parts are hardened for durability.
  3. Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.


CB-SPL-1FG/ CB-SPM-1FG are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.

Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread 0



Body Size PARTNO. LS Φ D HS A T
1/8" CB-S2L-1F 48 24 2 10 ZG1/8
1/4" CB-S2L-1F 58 28 2 12.5 ZG1/4
3/8" CB-S3L-1F 65 35 2 13 ZG3/8
1/2" CB-S4L-1F 72 45 2 14 ZG1/2
3/4" CB-S6L-1F 88 55 2 17 ZG3/4
1" CB-S8L-1F 102 65 2 23 ZG1
1-1/4" CB-S10L-1F 115 79 2 27 ZG1-1/4
1-1/2" CB-S12L-1F 124 79 2 27 ZG1-1/2
2" CB-S16L-1F 132 109 2 30 ZG2


ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread 1


Body Size PARTNO. LP C HP A T
1/8" CB-P2L-1F 29 19 6 10 ZG1/8
1/4" CB-P2L-1F 36 22.5 6 12.5 ZG1/4
3/8" CB-P3L-1F 40 25 6 13 ZG3/8
1/2" CB-P4L-1F 44 28 6 14 ZG1/2
3/4" CB-P6L-1F 52 36 6 17 ZG3/4
1" CB-P8L-1F 62 40 6 23 ZG1
1-1/4" CB-P10L-1F 70 45 6 27 ZG1-1/4
1-1/2" CB-P12L-1F 75 49 6 27 ZG1-1/2
2" CB-P16L-1F 80 52 6 30 ZG2


ISO7241B SS Open Close Type Hydraulic Quick Coupler BSP Thread 2
