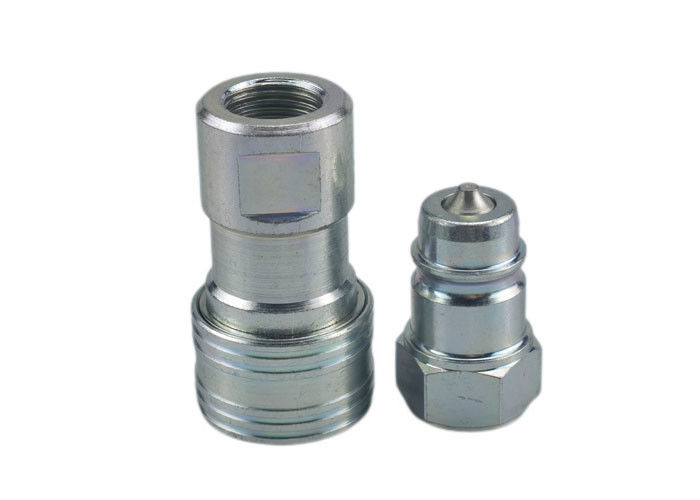

0.75 Inch Hansen 5000 Series NPT Shut Off Coupling

0.75 Inch Hansen 5000 Series NPT Shut Off Coupling

  • High Light

    0.75'' Shut Off Coupling

    ,

    BSPP Shut Off Coupling

    ,

    NBR hydraulic quick connects

  • Material
    Steel
  • Technics
    Machinning
  • Thread
    BSPP/NPT
  • Locking Mechanism
    Threaded
  • Seal
    NBR
  • Interchange
    Hansen 5000 Series
  • Application
    Hydraulic
  • Warranty
    1 Year
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-7
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

0.75 Inch Hansen 5000 Series NPT Shut Off Coupling

3/4'' Steel quick disconnect coupling hydraulic applications double shut-off coupling

CB-7 Series steel quick disconnect coupling is a pull to connect double shut-off coupling. it remains as the series users prefer when it comes to severe hydraulic applications such as high pressure, pressure impulses, heavy mechanical loads and frequent connection and disconnection cycles. The unique sleeve lock option offers a reliable solution and benefit to the end user when safety is a concern.
Applications
• Automobile • Agriculture • Construction • Oil and Gas • Railway • Aeronautics • Food Processing • Iron and Steel Industry • Electronics • Laboratories • General Hydraulic Applications

Standard Materials

  • Zinc trivalent steel
  • Seals: NBR, Viton, EPDM

Features

  1. Proprietary profile
  2. Pull-to-connect with double shut-off valving
  3. Ball-locking
  4. Optional safety sleeve lock prevents accidental disconnections
  5. Optional dust caps and plugs (made of anodized aluminum)
  6. Pressure performance
  7. Compatible with HANSEN5000 Series.

0.75 Inch Hansen 5000 Series NPT Shut Off Coupling 0

Body Size PARTNO. Thread A B HEX
1/8" CB-S1S-7FN 1/8-27 1.65 0.94 0.63
1/8" CB-S1S-7FG 1/8-28 1.65 0.94 0.63
1/4" CB-S2S-7FN 1/4-18 1.97 1.10 0.75
1/4" CB-S2S-7FG 1/4-19 1.97 1.10 0.75
3/8" CB-S3S-7FN 3/8-18 2.32 1.34 0.90
3/8" CB-S3S-7FG 3/8-19 2.32 1.34 0.90
1/2" CB-S4S-7FN 1/2-14 2.71 1.50 1.06
1/2" CB-S4S-7FG 1/2-14 2.71 1.50 1.06
3/4" CB-S6S-7FN 3/4-14 3.50 1.89 1.38
3/4" CB-S6S-7FG 3/4-14 3.50 1.89 1.38
1" CB-S8S-7FN 1-11 3.89 2.05 1.61
1" CB-S8S-7FG 1-11 3.89 2.05 1.61

0.75 Inch Hansen 5000 Series NPT Shut Off Coupling 1

Body Size PARTNO. Thread C D HEX
1/8" CB-P1S-7FN 1/8-27 1.10 0.72 0.63
1/8" CB-P1S-7FG 1/8-28 1.10 0.72 0.63
1/4" CB-P2S-7FN 1/4-18 1.38 0.86 0.75
1/4" CB-P2S-7FG 1/4-19 1.38 0.86 0.75
3/8" CB-P3S-7FN 3/8-18 1.65 1.04 0.90
3/8" CB-P3S-7FG 3/8-19 1.65 1.04 0.90
1/2" CB-P4S-7FN 1/2-14 1.97 1.22 1.06
1/2" CB-P4S-7FG 1/2-14 1.97 1.22 1.06
3/4" CB-P6S-7FN 3/4-14 2.48 1.58 1.38
3/4" CB-P6S-7FG 3/4-14 2.48 1.58 1.38
1" CB-P8S-7FN 1-11 2.79 1.87 1.61
1" CB-P8S-7FG 1-11 2.79 1.87 1.61
