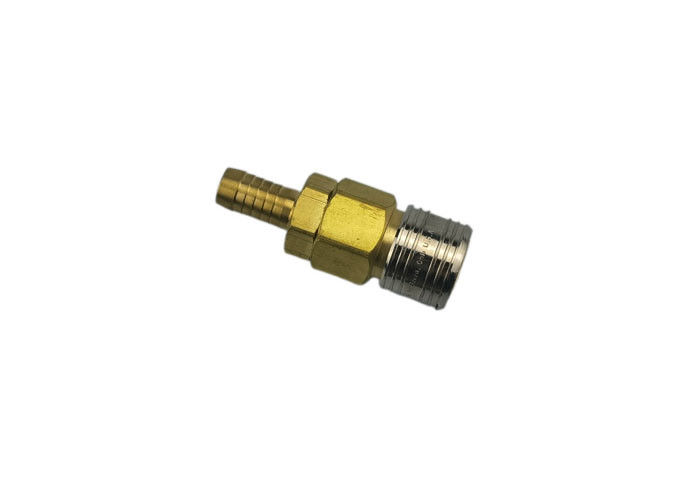

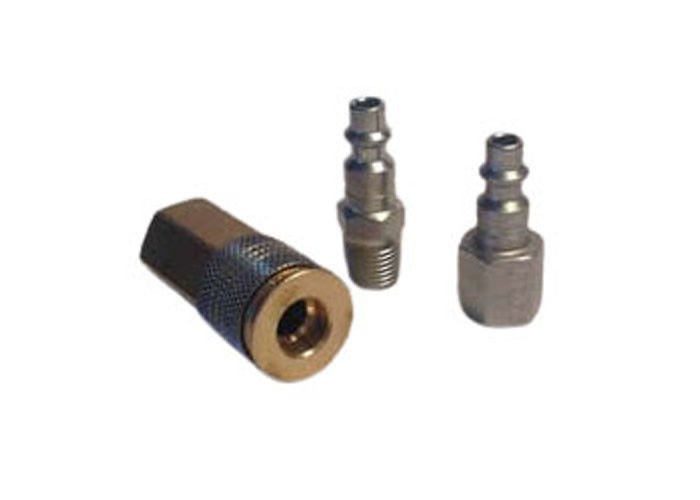

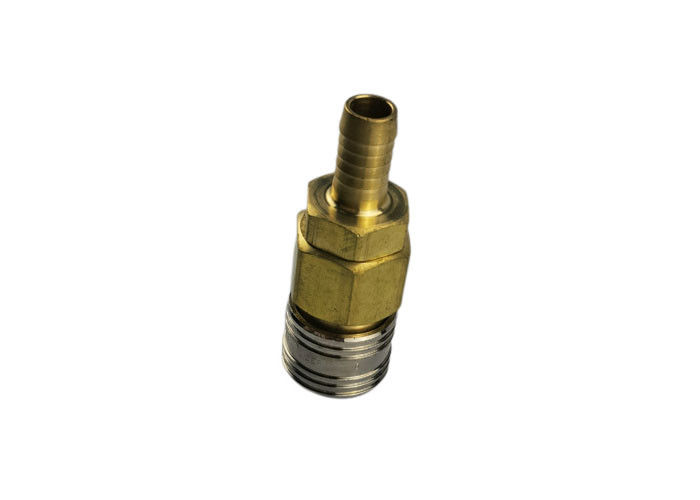

Gas Universal Hose Connection Pneumatic Quick Coupling

Gas Universal Hose Connection Pneumatic Quick Coupling

  • High Light

    150psi Pneumatic Quick Coupling

    ,

    CB-12 Pneumatic Quick Coupling

    ,

    IATF 16949 quick disconnect hose coupling

  • Application
    Industry
  • Nominal
    1/4
  • Connection
    Hose
  • Usage
    Oil Gas Water Industrial
  • Name
    Air Couplings
  • Head Code
    Round,Hexagon,Square,Roundness
  • Pressure
    150psi
  • Process
    Punching,fake
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Gas Universal Hose Connection Pneumatic Quick Coupling

1/4'' Nominal automatic universal coupling designed to operate with Industrial Pneumatic Quick Coupling



CB-12 Series High flow, automatic Quick-Connect Couplings designed for use with compressed air.



Applications

• General Pneumatics

• Air Tools

• Construction



Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line
  2. Sleeve guard protects against accidental disconnection
  3. Compatible with Hansen AUTO-FLO23&24 Series

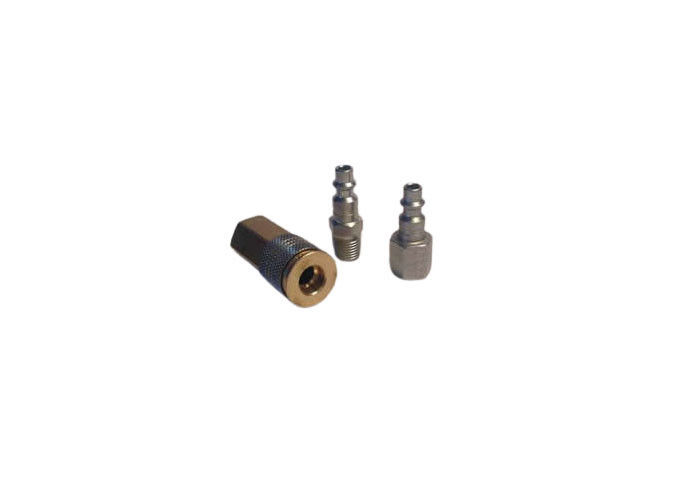

Gas Universal Hose Connection Pneumatic Quick Coupling 0



Body Size PARTNO. Thread A B
1/4" CB-S2B-12H-G 1/4’’ 2.76 0.94
1/4" CB-S3B-12H-G 3/8’’ 2.73 0.94
1/4" CB-S4B-12H-G 1/2’’ 2.73 0.94
1/4" CB-S5B-12H-G 5/16’’ 2.70 0.94

Gas Universal Hose Connection Pneumatic Quick Coupling 1Gas Universal Hose Connection Pneumatic Quick Coupling 2

Body Size PARTNO. Hose C D
1/4" CB-P2S-12H 1/4’’ 2.22 0.50
1/4" CB-P3S-12H 3/8’’ 2.31 0.50
1/4" CB-P4S-12H 5/16’’ 2.22 0.50
1/4" CB-P3B-12H 3/8’’ 2.31 0.50
