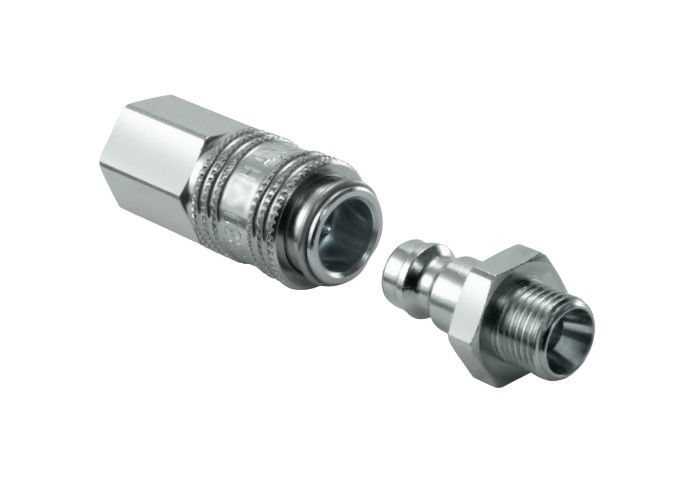

0.25'' 2000psi Pneumatic Hose Connector Quick Coupling

0.25'' 2000psi Pneumatic Hose Connector Quick Coupling

  • High Light

    0.25'' Hose Connector Quick Coupling

    ,

    2000psi Hose Connector Quick Coupling

    ,

    NPT hydraulic quick connect hose coupling

  • Product Name
    Pneumatic Coupler
  • Application
    Industry
  • Standard
    NPT
  • Nominal
    1/4
  • Type
    Coupling
  • Pressure
    2000psi
  • Temperature
    -20℃ ~ 120℃
  • Flow
    28scfm
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-12
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

0.25'' 2000psi Pneumatic Hose Connector Quick Coupling

1/4'' Nominal Hose Stem End Connections Pneumatic Quick Coupling



Features

  1. Rugged, reliable
  2. Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line
  3. Compatible with PARKER 20 Series, Rectus 23KA Series, Hansen 3000 Series, CEJN 310 Series



CB-S2B-12FN are used compressed air, gases, and liquids.



Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

Rated Pressure and Flow Capacity

BODY SIZE Rated Pressure (PSI) Rated Pressure (BAR)

Flow Capacity

(scfm)

Standard seal material
1/4" 2000 138 28 NBR

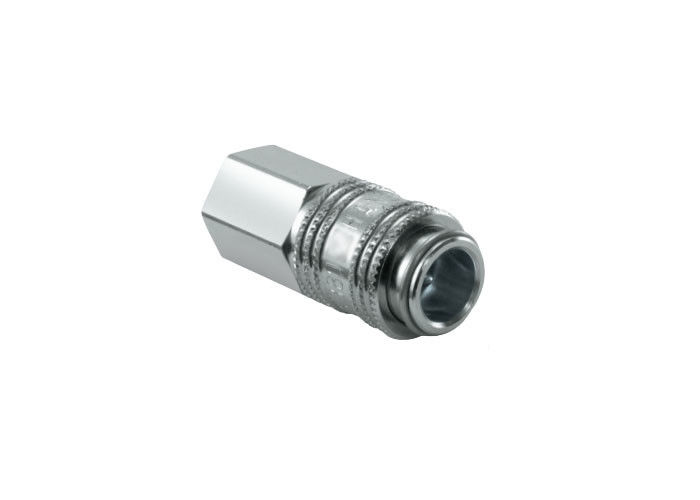

0.25'' 2000psi Pneumatic Hose Connector Quick Coupling 0

Body Size PARTNO. Hose A B
1/4" CB-S2B-12H 1/4’’ 2.70 1.19
1/4" CB-S3B-12H 3/8’’ 2.69 1.19
1/4" CB-S4B-12H 5/16’’ 2.70 1.19

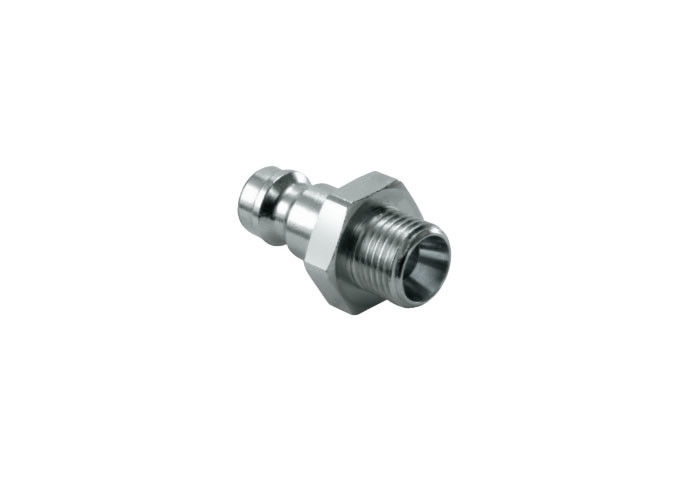

0.25'' 2000psi Pneumatic Hose Connector Quick Coupling 1

Body Size PARTNO. Hose A B
1/4" CB-P2S-12H 1/4’’ 2.22 0.50
1/4" CB-P3S-12H 3/8’’ 2.31 0.50
1/4" CB-P4S-12H 5/16’’ 2.22 0.50
1/4" CB-P3B-12H 3/8’’ 2.31 0.50



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
