250MPa Ultra High Pressure Hydraulic Hose Couplings 5.8L/Min

250MPa Ultra High Pressure Hydraulic Hose Couplings 5.8L/Min
250MPa Ultra High Pressure Hydraulic Hose Couplings 5.8L/Min

Large Image :  250MPa Ultra High Pressure Hydraulic Hose Couplings 5.8L/Min

Product Details:
Place of Origin: Sweden
Brand Name: CEJN
Certification: IATF16949
Model Number: 10250
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000~20000 pc/month
Detailed Product Description
Name: High-pressure Coupling Material Seal: Nitrile (NBR)
Flow Capacity: 5.8 L/min Working Pressure: 250 MPa
Temperature: -30°C — +100°C Material: Hardened, Zinc-nickel, Zinc-iron
Size: All Size Standard: SAE J20/ TS16949
Certification: ISO/TS16949 Feature: High Pressure
High Light:

250MPa Hydraulic Hose Couplings

,

Hydraulic Hose Couplings 5.8L/Min

,

TS16949 High Pressure Hose Couplings

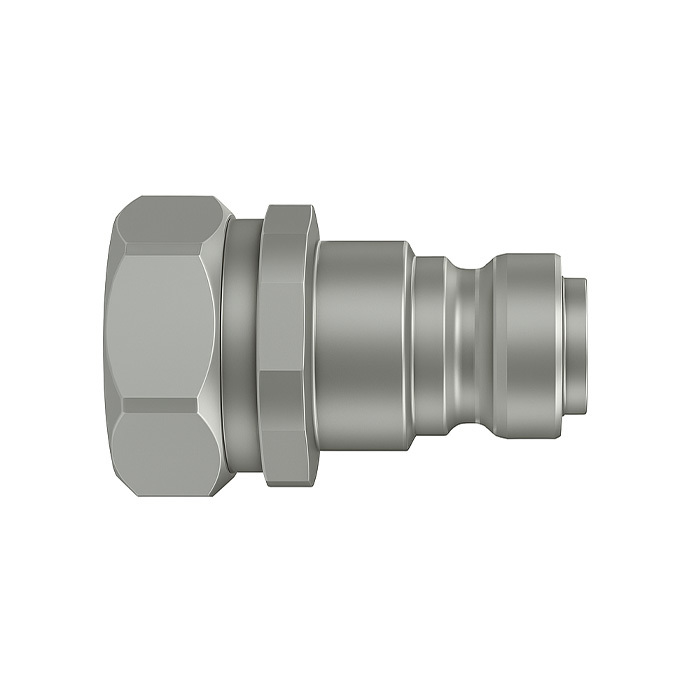

250 MPa Series 125 ultra high-pressure hydraulics hose couplings

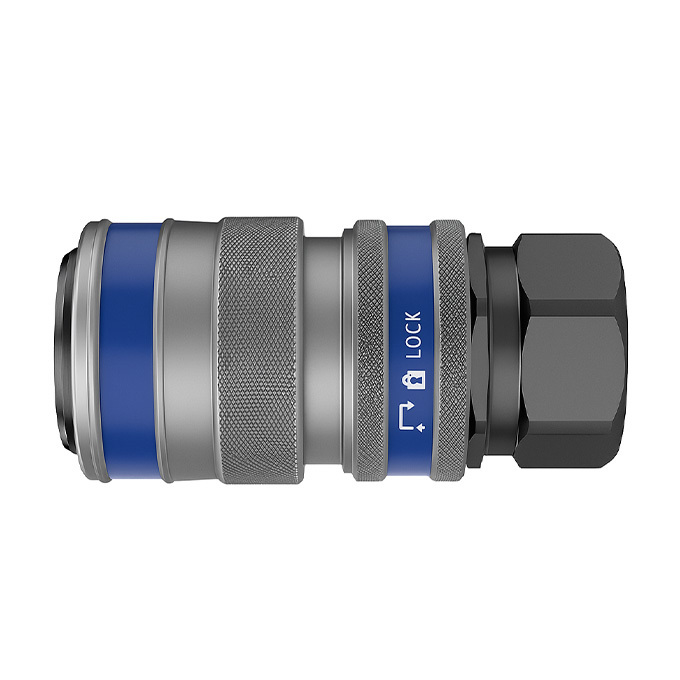

A CEJN original that customers have relied on for over 40 years, Series 125 features extremely small outside dimensions and a patented seal design. The series is a dependable performer on bolt tensioners, bearing pullers and other applications. Non-Drip connection and disconnection are standard, as are plastic dust caps that extend the service life of the entire hydraulic system. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. All exposed components are made of zinc-plated steel.



Nominal flow diameter 2.5 mm (0.1")
Flow capacity 5.8 l/min (1.3 GPM UK)
Max. working pressure 250 MPa
Min. burst pressure 500 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc-nickel, zinc-iron
Material nipple Hardened, zinc-nickel
Material seal Nitrile (NBR) other sealing materials on request



Flow capacity is measured at 0.4 MPa pressure drop.



*CMS= Cejn metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= copper washer (09 950 4600).



250MPa Ultra High Pressure Hydraulic Hose Couplings 5.8L/Min 0
