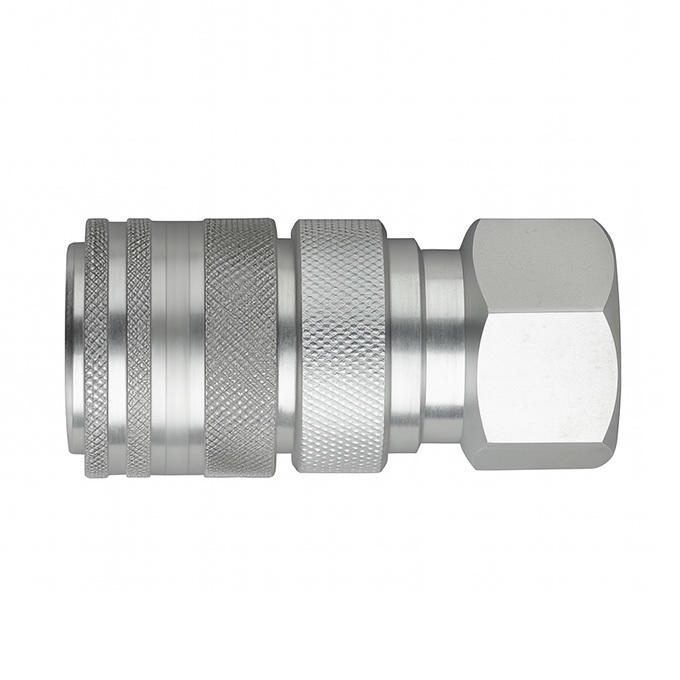

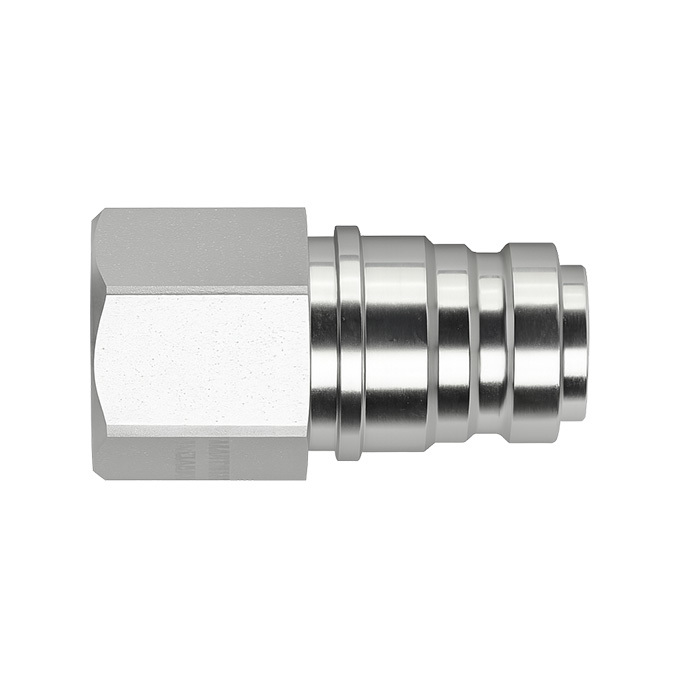

100Mpa 0.2" Hydraulic Hose Couplings Hardened Hydraulic Quick Couplings

100Mpa 0.2" Hydraulic Hose Couplings Hardened Hydraulic Quick Couplings
100Mpa 0.2" Hydraulic Hose Couplings Hardened Hydraulic Quick Couplings

Large Image :  100Mpa 0.2" Hydraulic Hose Couplings Hardened Hydraulic Quick Couplings

Product Details:
Place of Origin: Sweden
Brand Name: CEJN
Certification: IATF16949
Model Number: 10218
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000~20000 pc/month
Detailed Product Description
Name: Coupling Material Seal: Nitrile (NBR)
Flow Capacity: 3.3 GPM Max. Working Pressure: 100 MPa
Min. Burst Pressure: 280 MPa Nominal Flow Diameter: 0.2''
Temperature: -22°F — +212°F Material: Hardened, Zinc Chromate Plated Steel
High Light:

0.2" Hydraulic Hose Couplings

,

100Mpa Hydraulic Quick Couplings

,

Hardened Hydraulic Quick Couplings

100Mpa 218 Series Nominal flow diameter 0.2'' hydraulic quick couplings high flow high-pressure hose couplings



The Series 218 is a CEJN original that, despite very small outside dimensions, gives an extremely high flow. Both the patented sealing design and non-drip connection and disconnection are standard on CEJN’s High-Pressure range. The coupling also has a safety ring for the locking sleeve to prevent accidental disconnection. Plastic dust caps are standard on both coupling and nipple. The series is an allround coupling that works well in most applications, even if it is mainly recommended where large flow rates are required.



100Mpa 0.2" Hydraulic Hose Couplings Hardened Hydraulic Quick Couplings 0

CEJN Metal Seal (CMS)

CEJN Metal Seal is the optimum and recommended sealing method developed to be a safe and reliable seal even at extremely high pressures. Due to the smaller diameter and position of CMS, stress is kept to a minimum. In the unlikely event of leakage, the oil pressure will be dispersed within the coupling without any danger to the operator.





100Mpa 0.2" Hydraulic Hose Couplings Hardened Hydraulic Quick Couplings 1

Oil Flow

x: Flow, l/min (GPM UK)
y: Pressure drop, MPa



Nominal flow diameter 4.5 mm (0.2")
Flow capacity 15.0 l/min (3.3 GPM UK)
Max. working pressure 100 MPa
Min. burst pressure 280 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc chromate plated steel
Material nipple Hardened, zinc chromate plated steel
Material seal Nitrile (NBR) other sealing materials on request
